The handset
NGT ASR Transceiver Getting Started Guide 29
If the transmit and receive frequencies are the same, the
frequency is only displayed in the receive frequency position
on the right side of the screen and the Rx indicator arrow is not
used. The signal strength/output power indicator shows
whether the transceiver is receiving or transmitting.
While a call is being established, the transceiver will show that
calling activity is in progress by flashing the icon in place
of the scan indicator.
During a call the scan indicator is replaced with an icon that
indicates the type of call being sent or received.

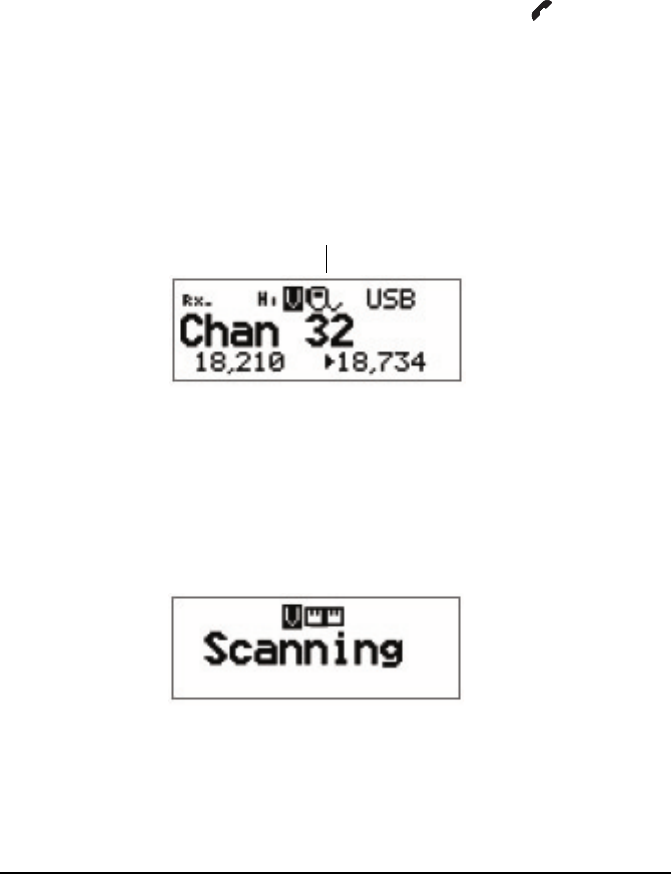

Figure 5: The channel screen during a call
When the transceiver is scanning the channel screen is
replaced by the scanning screen.
Figure 6: The scanning screen
ca
ll
t
ype
i
con
