The handset
28 NGT ASR Transceiver Getting Started Guide
The channel screen
The channel screen is displayed when you open the Channel
List. It displays:
• the name of the currently selected channel
• a bar graph that indicates the signal strength on receive
and the output power on transmit
• the power level indicator
• the mode
• the transmit and receive frequencies, if applicable
• an arrow that indicates whether the transceiver is
receiving or transmitting

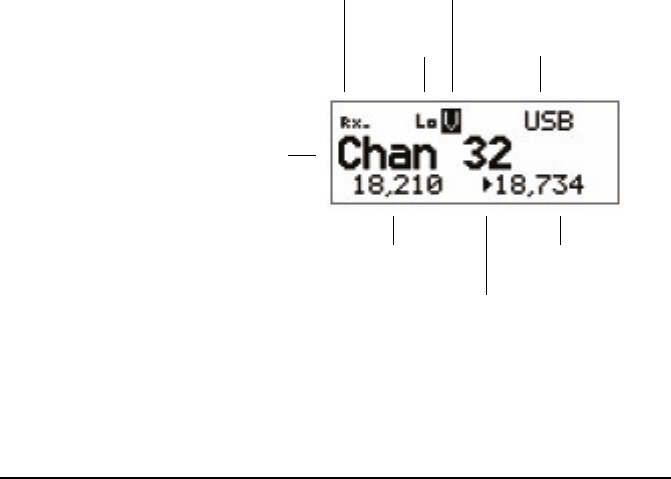

Figure 4: The channel screen in the Channel List
channel name
Tx freq in kHz
Rx/Tx indicator
Rx freq in kHz
s
i
gna
l
strength/output
power indicator
mu
t
e
t
ype
and status
indicator
mode
power
indicator
