User Instructions

January 2016 Data Sheet
Features
www.cobham.com/tcs
 Single card solution, includes 2 receivers, 100mW power amplifier and T/R switching.
 Low power, typically 4W when meshed to another node at 100mW. [Power consumption is
dependent on data rate, channel BW and number of nodes.]
 2.5MHz / 3MHz / 3.5MHz / 5MHz and 6MHz operating bandwidth modes
 Two-way diversity Maximum Ratio Combining for fade and multipath elimination
 Internal AES 128 / 256bit encryption (optional)
 Twin IP interfaces
 Multiple Serial interfaces
 SMP RF connectors for reduced size and ease of connection
 Optional Encoder offering very low delay video operation for real time applications
 Interfaces for optional external amplifier up to 2W
 Talk-back Audio
 Micro SD card for 32GB storage via flexible circuit connector
 FCC approval for the D17XX as an OEM Module.

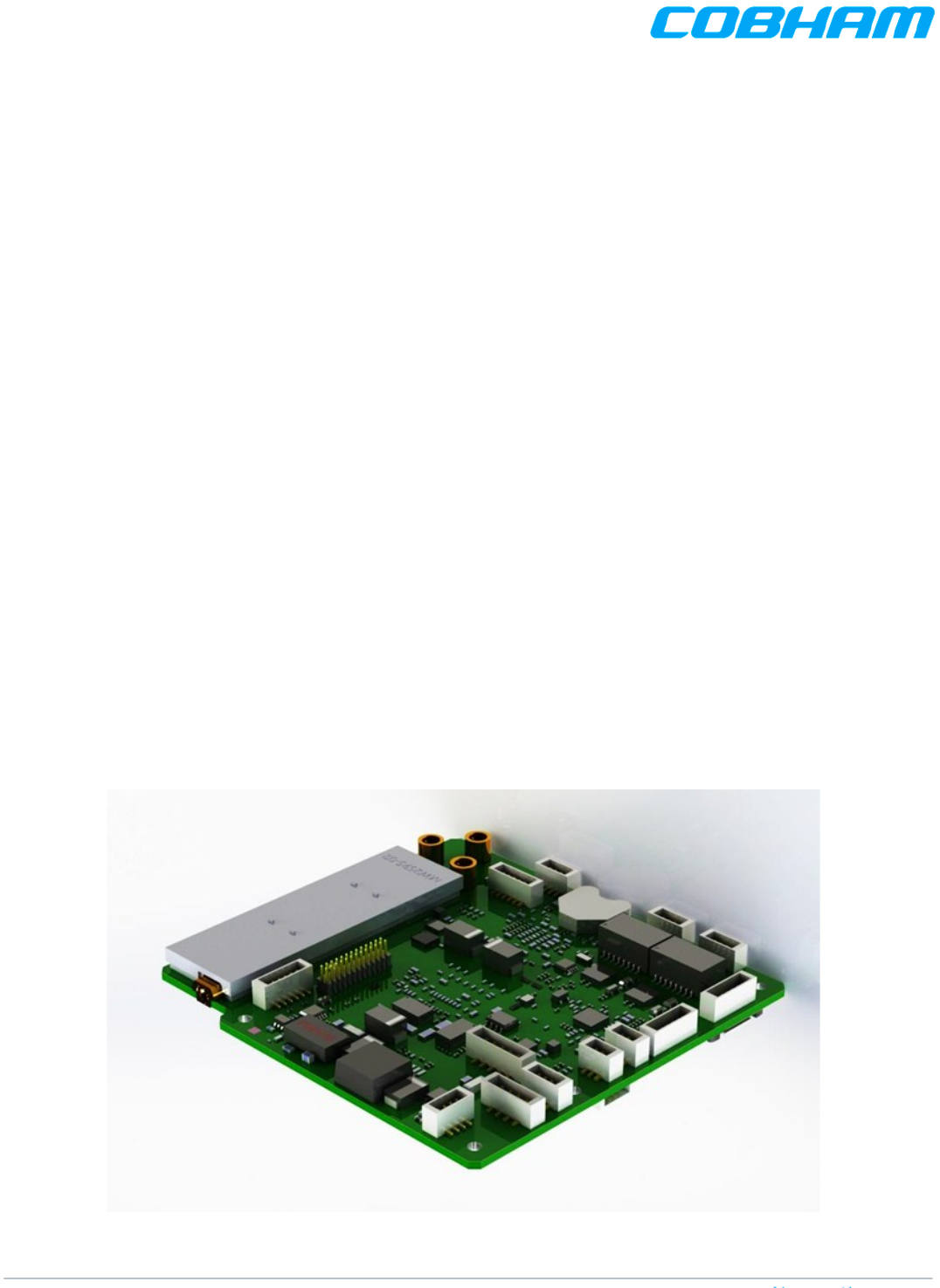

Isometric View D17XX
