11.1.4 BWC2 Bluetooth Status LED
Notification event
Event description
Action of notification
Power on notification
Section 4.2
Continuously turned on for 1 sec
BWC2 pairing
Section 8.1.1
Blinking
BWC2 connected
Section 8.2
Turned on
BWC2 disconnected
Section 8.2.2
Turned off
11.1.5 Upload Data status LED, Upload Data status LED 2
nd
Upload data LED is directly controlled by the UART interface connected host
device with defined UART command descript in section 12.2

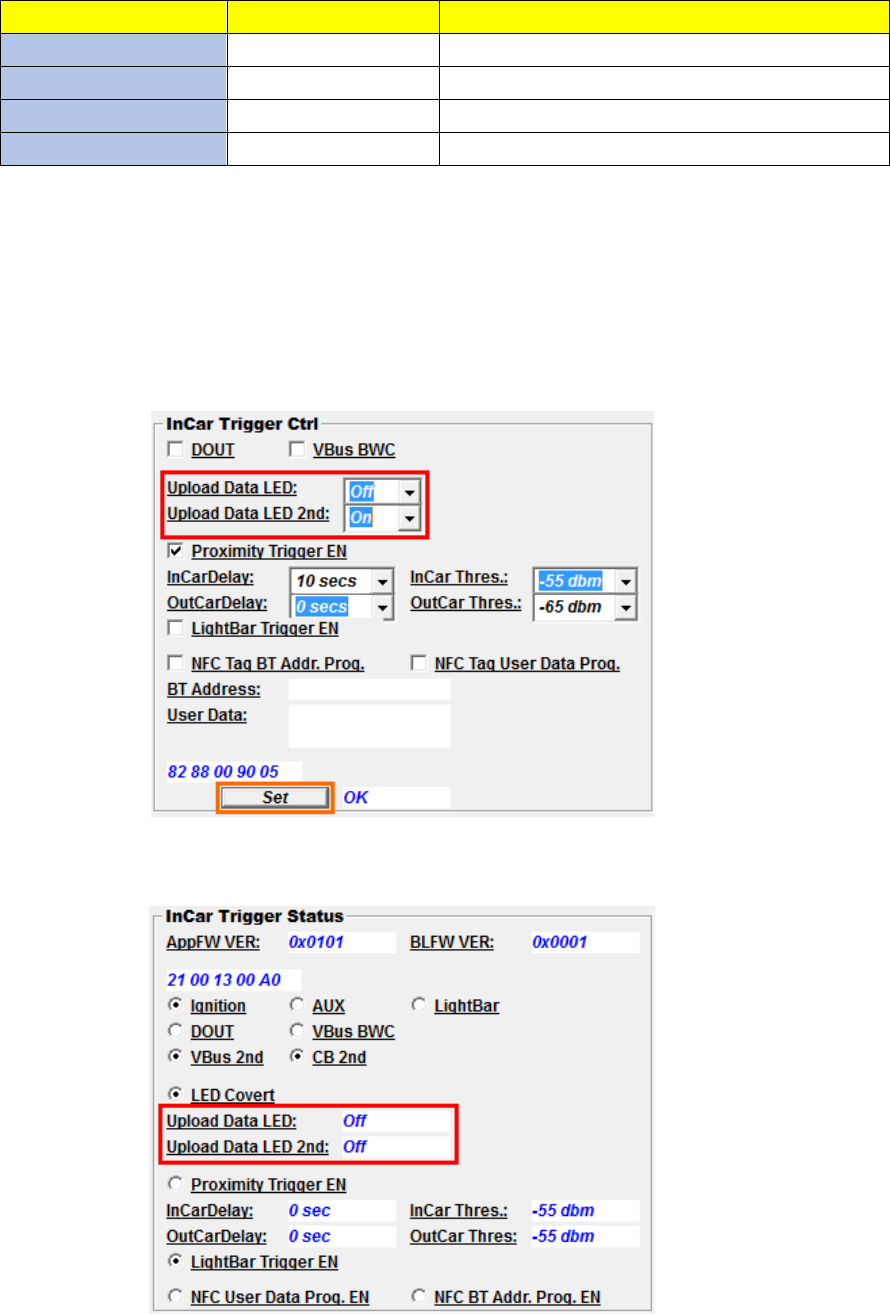

In Test UI, In-Car Trigger Ctrl Window provide checkboxes to control these
two Upload data status LEDs.
Also, current configuration of Upload data status LEDs would be periodically
updated in In-Car Trigger status window.
