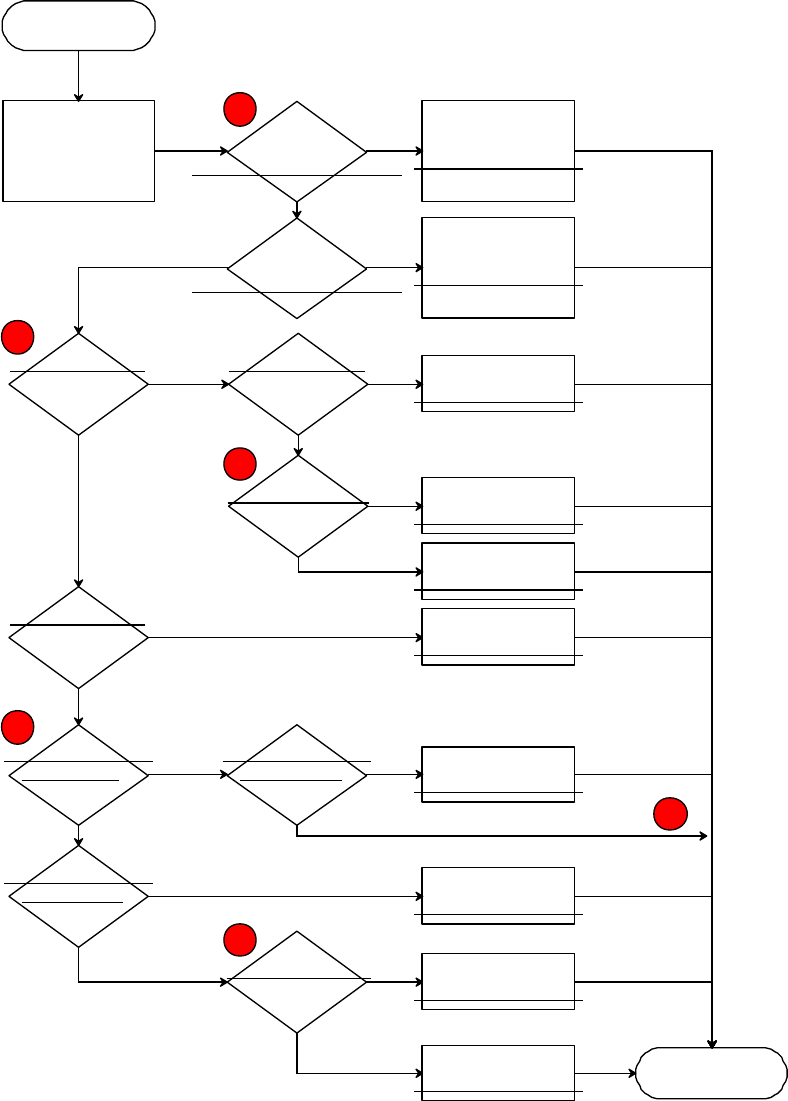

E. Continues from (C). If both BWCs currently paired with In-Car Trigger is
recoding, the target BWC is not allowed to pair with In-Car Trigger.
F. Continues from (C). If both BWCs currently paired with In-Car Trigger is not
recoding, the Bluetooth channel which is the last allocated for pairing will be
reserved, and the other one will be allocated to pair with the target BWC.
Retrieve new BT
address from NFC
reader
new BT address
equal to
BWC1_PERIPHERAL_BT_ADDR
new BT address
equal to
BWC2_PERIPHERAL_BT_ADDR
Set
BWC1_New_Pairing
Set
BWC2_New_Pairing
YES
YES
NO
BWC1_GAP_STATE
is
GAPROLE_CONNECTED
Set
BWC1_New_Pairing
NO
BWC2_GAP_STATE
is
GAPROLE_CONNECTED
NO
NO
YES
YES
BWC1_Last_PAIRED
is set?
BWC1_BWC_STATUS
__RECORDING is
set?
YES
BWC2_BWC_STATUS
__RECORDING is
set?
YES NO
NO
BWC2_BWC_STATUS
__RECORDING is
set?
NO
Set
BWC2_New_Pairing
Set
BWC2_New_Pairing
YES
Set
BWC1_New_Pairing
YES
NO
Set
BWC2_New_Pairing
Set
BWC1_New_Pairing
Return
Start
BWC2_GAP_STATE
is
GAPROLE_CONNECTED
YES
BWC1_New _Pairing
is set?
Set
BWC1_New_Pairing
Set
BWC2_New_Pairing
NO
YES
NO
A
B
C
D
E
F
