6.2 Output
In-Car Trigger provide the listed digital output, which is connected to the BWC on
BWC slot, 2
nd
BWC dock, or peripheral device on patrol car.

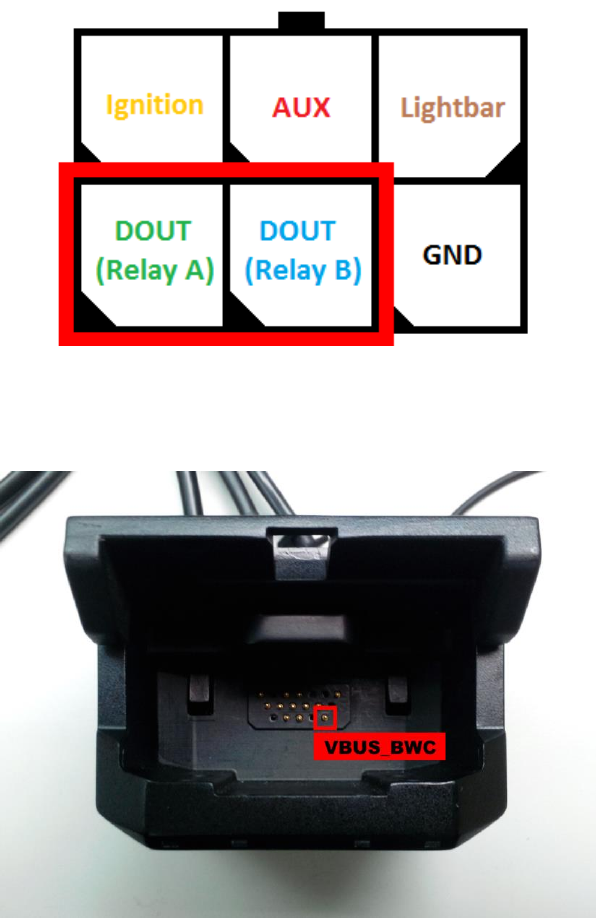

 DOUT: Turn on/off (short/open) the connection between the relay’s A/B pin on
I/O Pigtail
 VBUS_BWC: Turn on/off the 5V USB VBus voltage to enable/disable the
USB interface implemented on pogo pins inside BWC slot.
 Upload Data LED 2
nd
: Turn on off the Upload Data LED on connected 2
nd
Dock, controlling of this output will be descript in section 11.1.5
 VBUS_2
nd
: Turn on/off the 5V USB VBus voltage to enable/disable the USB
interface implemented on M8 pigtail connected to 2
nd
Dock.
 CB_2
nd
: Turn on/off the CB voltage output on M8 pigtail connected to 2
nd
Dock.
