Rear Modules Available for 9011
This section provides instructions for connecting cables to 9011 rear modules. Connect the input and
output cables according to the appropriate following diagram. Split rear module RM20-9011-A/S
allow two cards to be installed in adjacent slots.
RM20-9011-A RM20-9011-A/S

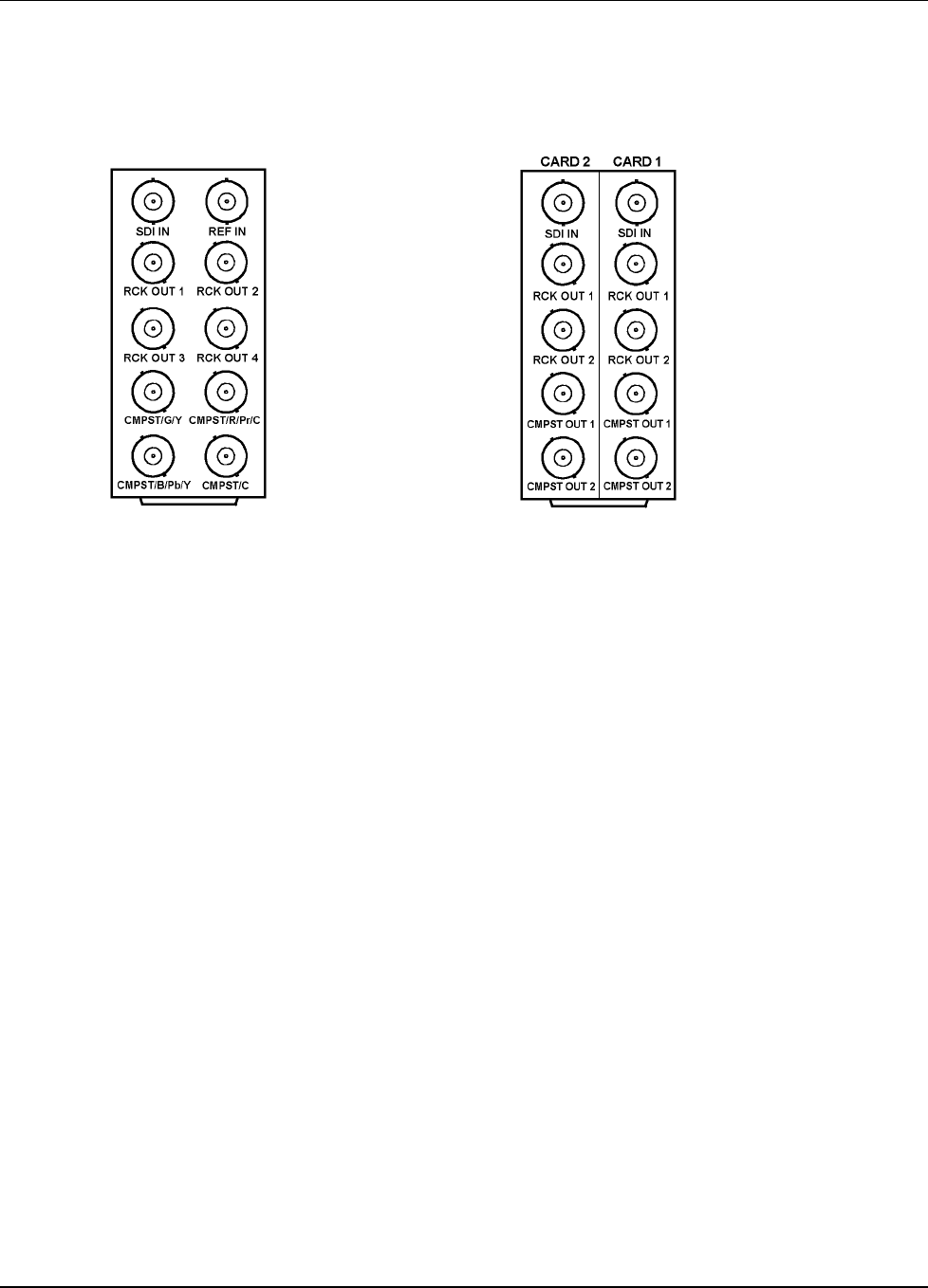

Figure 3. BNC Designations for the Card Rear Module available for the 9011.
