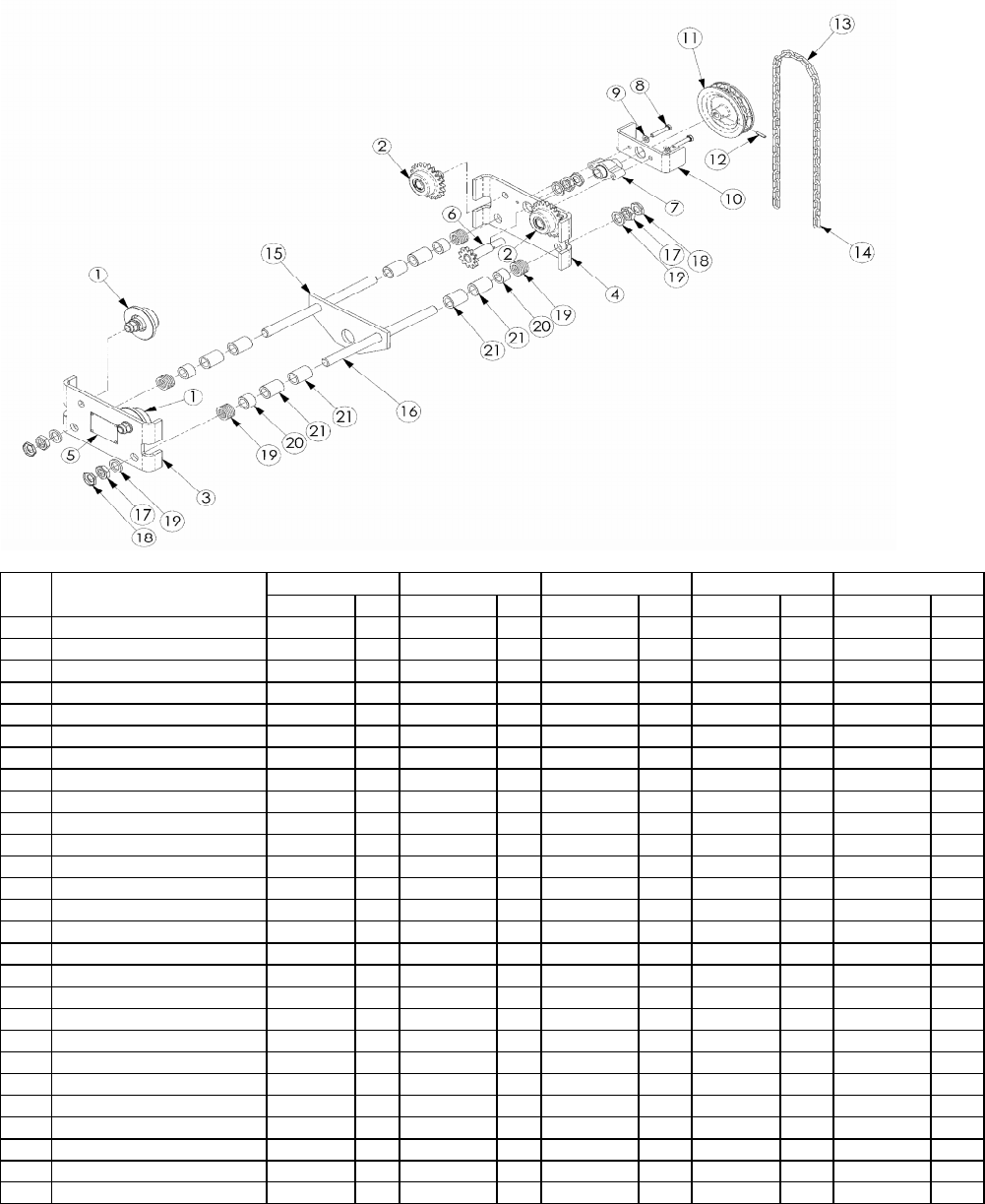

1/4 THRU 5 TON CAPACITY TROLLEY PARTS LIST
ITEM ITEM 1/4 AND 1/2 TON 1 TON 1-1/2 AND 2 TON 3 TON 5 TON
NO DESCRIPTION PART NO QTY PART NO QTY PART NO QTY PART NO QTY PART NO QTY
1
Plain Wheel Assembly
00508207
4
00508207
4(2)
00508208
4(2)
00508209
4(2)
00508210
4(2)
2
Geared Wheel Assembly n/a 0
00508211
0(2)
00508212
0(2)
00508213
0(2)
00508214
0(2)
3
Plain Side Plate
00550115
2
00550117
2(1)
00550118
2(1)
00550237
2(1)
00550239
2(1)
4
Geared Side Plate n/a 0
00550047
0(1)
00550242
0(1)
00550243
0(1)
00550244
0(1)
5
1/4 Ton Nameplate
00550245A
1
n/a 0 n/a 0 n/a 0 n/a 0
5
1/2 Ton Nameplate 00550245B
1
n/a 0 n/a 0 n/a 0 n/a 0
5
1 Ton Nameplate n/a 0 00550245C 1 n/a 0 n/a 0 n/a 0
5
1-1/2 Ton Nameplate n/a 0 n/a 0 00550245D 1 n/a 0 n/a 0
5
2 Ton Nameplate n/a 0 n/a 0 00550245E 1 n/a 0 n/a 0
5
3 Ton Nameplate n/a 0 n/a 0 n/a 0 00550245F 1 n/a 0
5
5 Ton Nameplate n/a 0 n/a 0 n/a 0 n/a 0 00550245G 1
6 Drive Pinion and Shaft n/a 0
00557206
0(1)
00557206
0(1)
00557206
0(1)
00557206
0(1)
7 Drive Shaft Bearing Block n/a 0
00557204
0(1)
00557200
0(1)
00557313
0(1)
00508229
0(1)
8 Bearing Block Bolt n/a 0
09101052
0(2)
09101050
0(2)
09101050
0(2)
09101050
0(2)
9 Bearing Block Bolt Washer n/a 0
09122016
0(2)
09122016
0(2)
09122016
0(2)
09122016
0(2)
10 Hand Chain Guard n/a 0
00557314
0(1)
00557314
0(1)
00508231
0(1)
00558062
0(1)
11 Hand Chain Wheel n/a 0
00557304
0(1)
00557304
0(1)
00508230
0(1)
00558061
0(1)
12 Handwheel Retaining Pin n/a 0
09134052
0(1)
09134052
0(1)
09134052
0(1)
09134052
0(1)
13 Hand Chain(specify length) n/a 0
04307654
0(1)
04307654
0(1)
04307654
0(1)
04307654
0(1)
14
Hand Chain Connecting Link
n/a 0 00404733 0(1) 00404733 0(1) 00404733 0(1) 00404733 0(1)
15 Clevis
00550053
1
00550051
1
00550059
1
00550073
1
00550079
1
16 Trolley Pin
00550071
2
00550048
2
00550056
2
00550077
2
00550082
2
17 Trolley Pin Nut
09115070
4
09115001
4
09115101
4
09115159
4
09115161
4
18 Trolley Pin Lock Nut
09115030
4
09115536
4
09115157
4
09115154
4
09115162
4
19 Trolley Pin Washer
09121227
28
09121225
28
09121226
28
00550085
24
00550084
24
20 Short Spacer
00550069
4
00550050
4
00550058
4
00550076
4
00550081
4
21 Long Spacer
00550070
8
00550049
8
00550057
8
00550075
8
00550080
8
NOTE: QUANTITIES SHOWN FOR PLAIN UNITS. GEARED QUANTITIES ARE SHOWN IN BRACKETS ( ).
¼ TON AND ½ TON TROLLEY AVAILABLE IN PLAIN STYLE ONLY.
