60

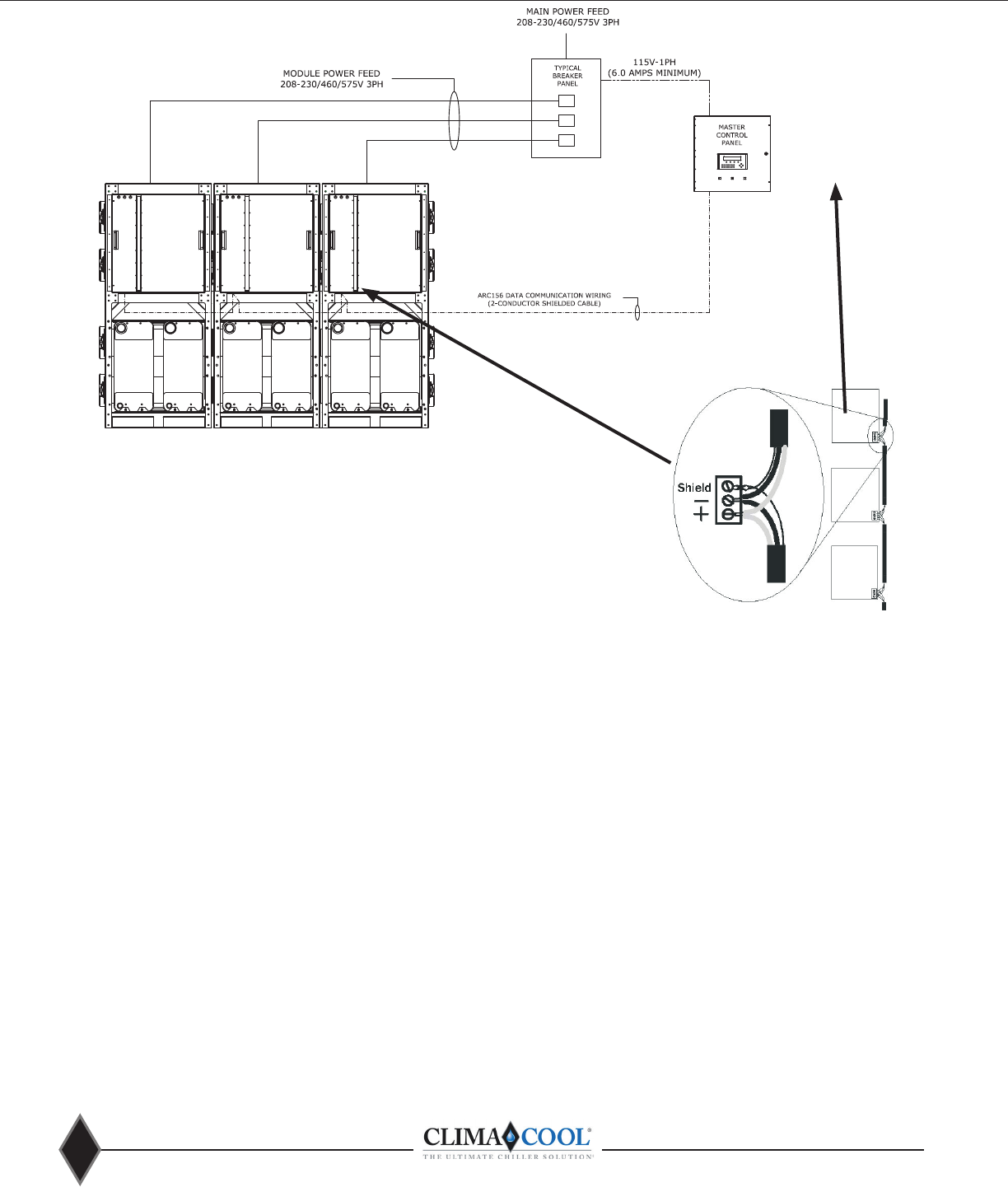

Power Distribution Drawing
Notes:
1.
Not provided as part of the ClimaCool modular chiller system.
2. Breaker panels can be supplied for skid mount pump/tank packages or new
construction projects as options. Consult your local ClimaCool Representative.
3. Control wiring by others.
4.
Figure 26
Specications for ARC156 Wiring
• Description - Single twisted pair, low capacitance, CL2P,
TC foam FEP, plenum rated cable
•
•
•
twists/meter) nominal
•
TC drain
•
nominal
•
conductor to conductor
• Characteristic Impedance – 100 Ohms
Cable Shields
Do not ground the shield to earth ground or to the control
module’s power ground. The PROT485 and the individual
so that there are no ground loops. If the voltage on the
shield becomes too great relative to the earth ground, then
PROT485 or on the control modules.
Noise Avoidance
Avoid running communication wires or sensor input wires
next to AC power wires or the control module’s relay
output wires. These can be a source of noise that can
Common sources of noise are:
Spark ignitors
Radio transmitters
Variable speed drives
Generators
Relays
Transformers
If noise is a problem and the wiring cannot be moved,
use ferrite clamp-on chokes on the cabling to improve
signal quality.
Induction heaters
Video display devices
Lamp dimmers
Fluorescent lights
Parallel runs with power lines
Other electronic modules
