Water Piping Conguration
Notes: 1. Figures 9 and 10 are required piping for proper water regulation and distribution through ClimaCool modular chillers.    
    6. A strainer with a minimum of 60 mesh stainless steel screen is a required safety to protect the brazed plate heat exchangers on both chilled and condenser water sides of the system.  .
8. Bypass is mandatory for systems utilizing motorized valves. 9. Header bypass valve may be installed at either end of bank. 

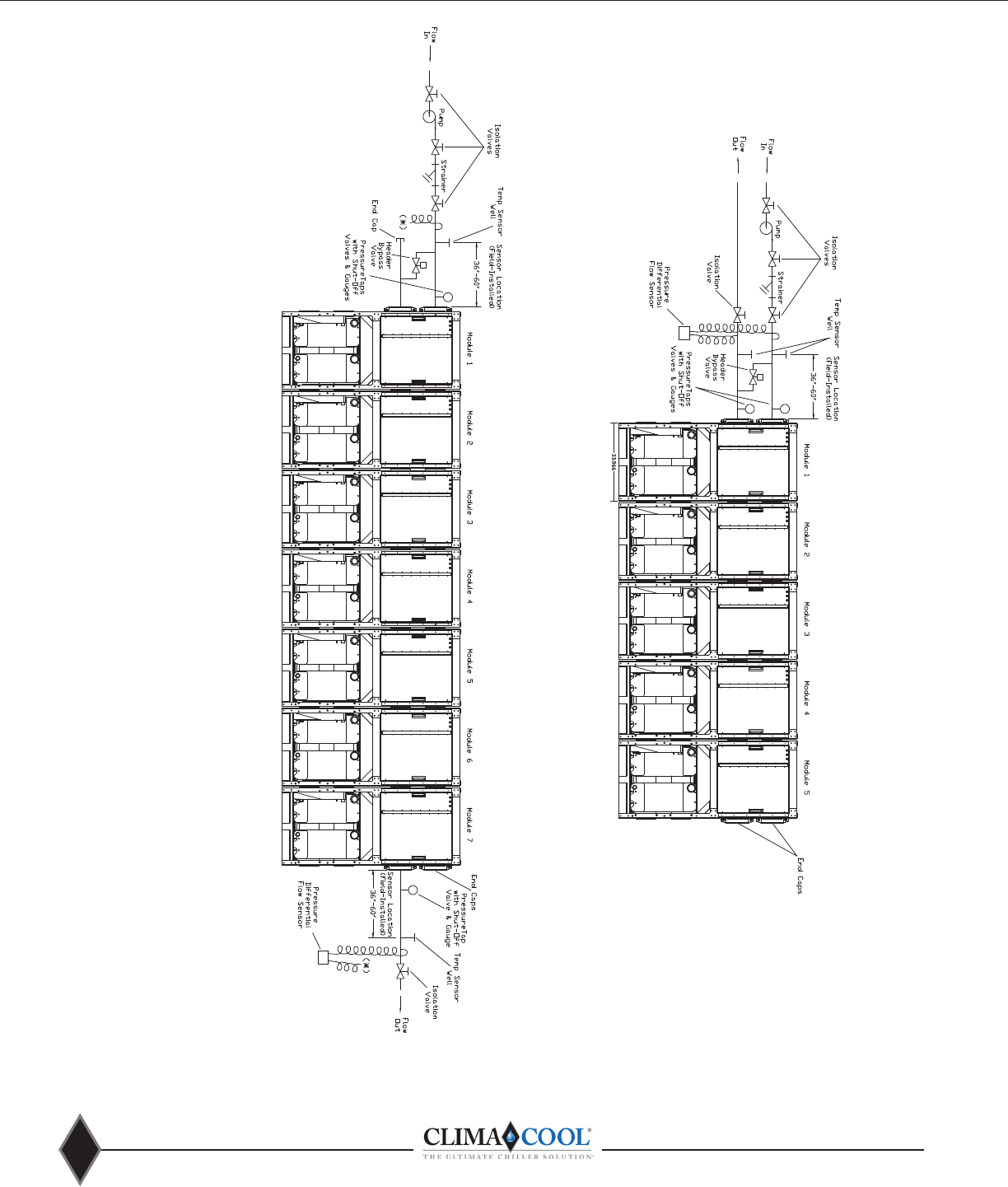

Figure 9 - Field Piping Direct Return Figure 10 - Field Piping Reverse Return
