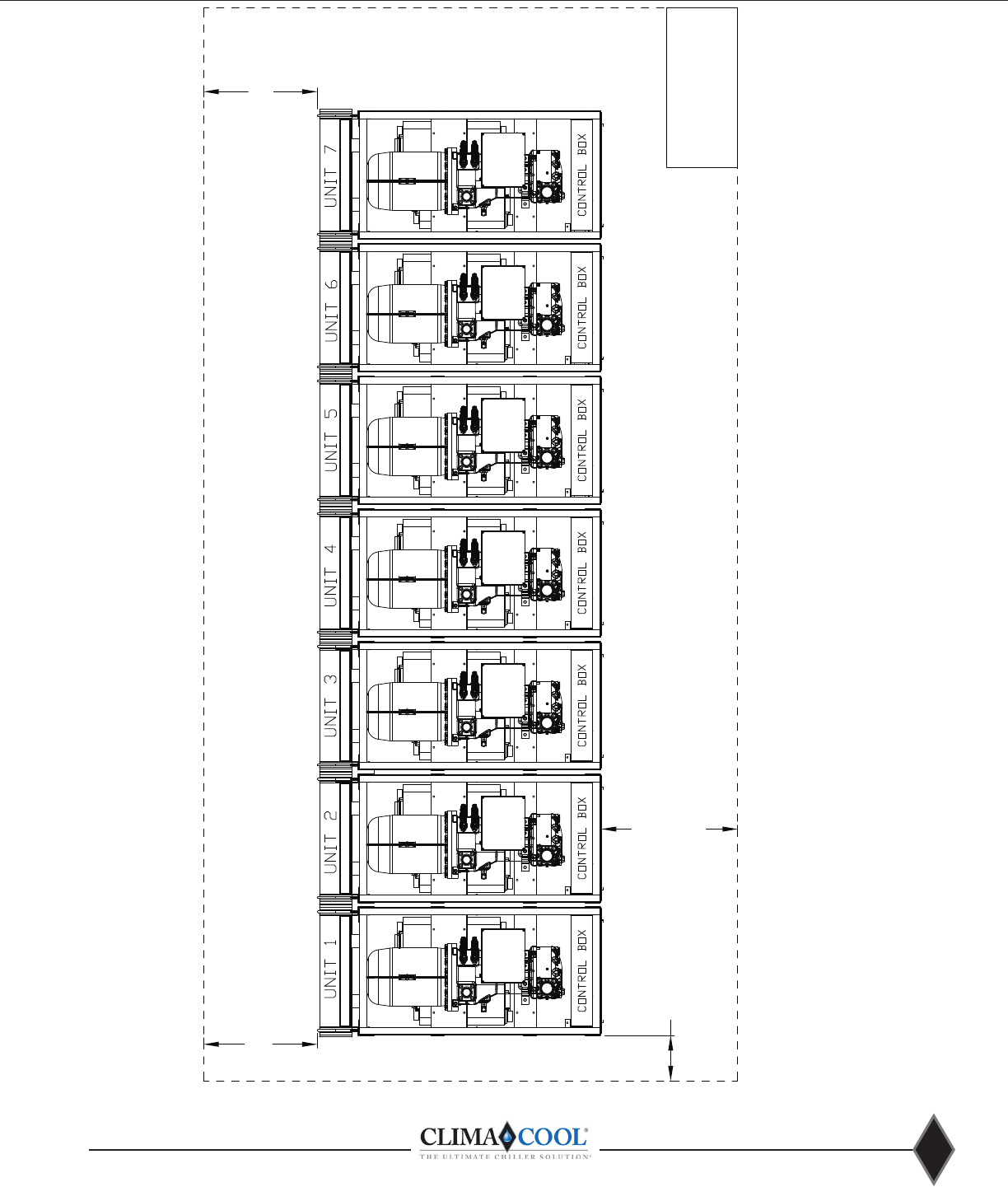

Recommended Service Clearances
Notes:
1. For brazed plate, allow 36” clearance for electrical panels and 30” clearance for rear access to modules.
2. For shell and tube, allow 60” clearance for electrical panels and 30” clearance for rear access to modules.
3. Allow a minimum of 36” height clearance for service.
4. Local building or electrical codes may require additional clearance. Consult applicable codes.
CoolLogic Master
Control Panel
(Wall Mounted)
Top View
Rear Service Access
Front Service Access
36” Minimum
60” For Shell and Tube
30”
30”
12”
