Clear-Com
Eclipse Omega Instruction Manual
4-12
T1 TRUNKING
The E-QUE interface can provide T1 trunking between Eclipse
systems and between Eclipse systems and compatible third-party
equipment. T1 mode provides 24 channels of G.722 encoded audio
are available on each of ports 1 and 5, giving 48 channels per card.
The T1 trunking specifications are:
• B8ZS Encoding
• Extended Super Frame
• Long Haul Receive Signal Level
• T1 Long Haul (LBO 0 dB) Transmit Pulse Amplitude
• Balanced
• 120 Ohm Line Impedance
• No Signalling
• G.722 64 kbit/s Audio Encoding
• Tx Clock locally generated
• Rx Clock Line Recovered

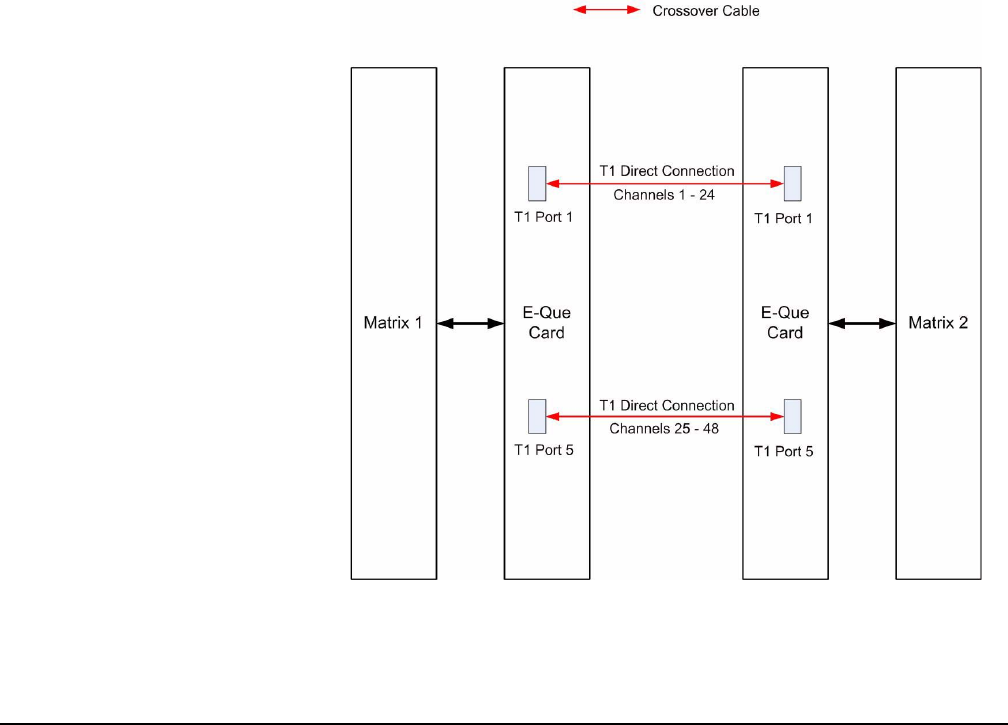

Figure 4-9: Matrix to Matrix T1 Trunking
T1 trunking between matrices can also be achieved over a T1 network
as shown in Figure 4-10. In this case T1 ports 1 and 5 of the E-QUE
