E1 TRUNK AND DIRECT MODES
The E-QUE interface can be used for both direct E1 to E1 port
connections or to provide trunk linking via a network between systems.
The E1 connections can be made between Eclipse systems or
between Eclipse systems and compatible third-party equipment. E1
mode provides 30 channels of G.722 encoded audio available on each
of ports 1 and 5, giving 60 channels per card.
The E1 specifications are:
• HDB3 Encoding
• Long Haul Receive Signal Level
• E1 120 Ohm Transmit Pulse Amplitude
• Balanced
• 120 Ohm Line Impedance
• No Signalling
• G.722 64 kbit/s Audio Encoding
• Tx Clock locally generated
• Rx Clock Line Recovered

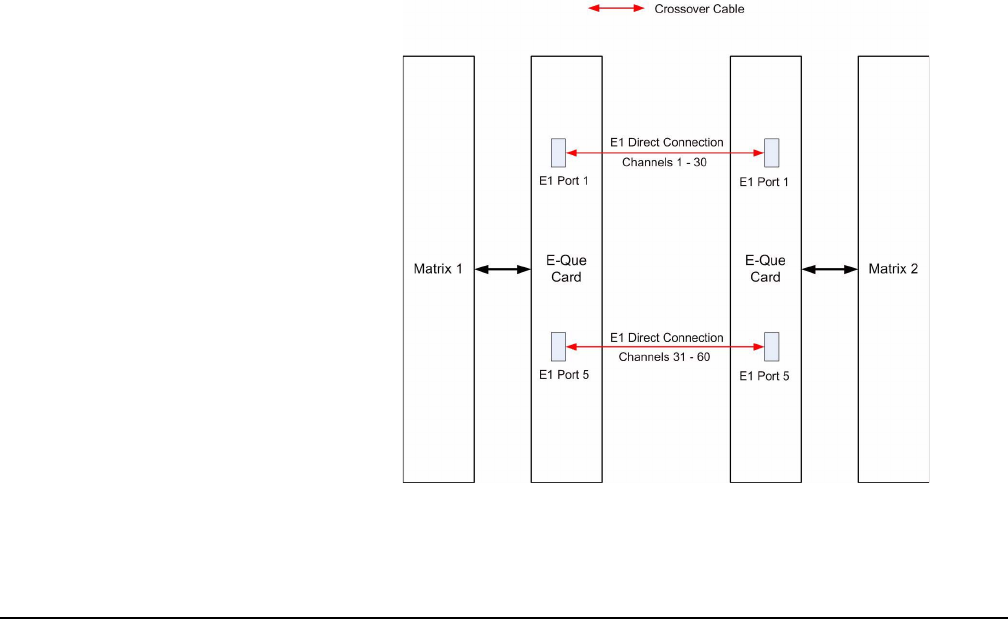

Figure 4-6 shows E1 trunking using a direct connection between the
matrices using a CAT5 crossover cable. The E-QUE interface should
be set to “E1 Direct” in ECS Matrix Hardware setup.
Figure 4-6: Matrix to Matrix Direct E1 Trunking
