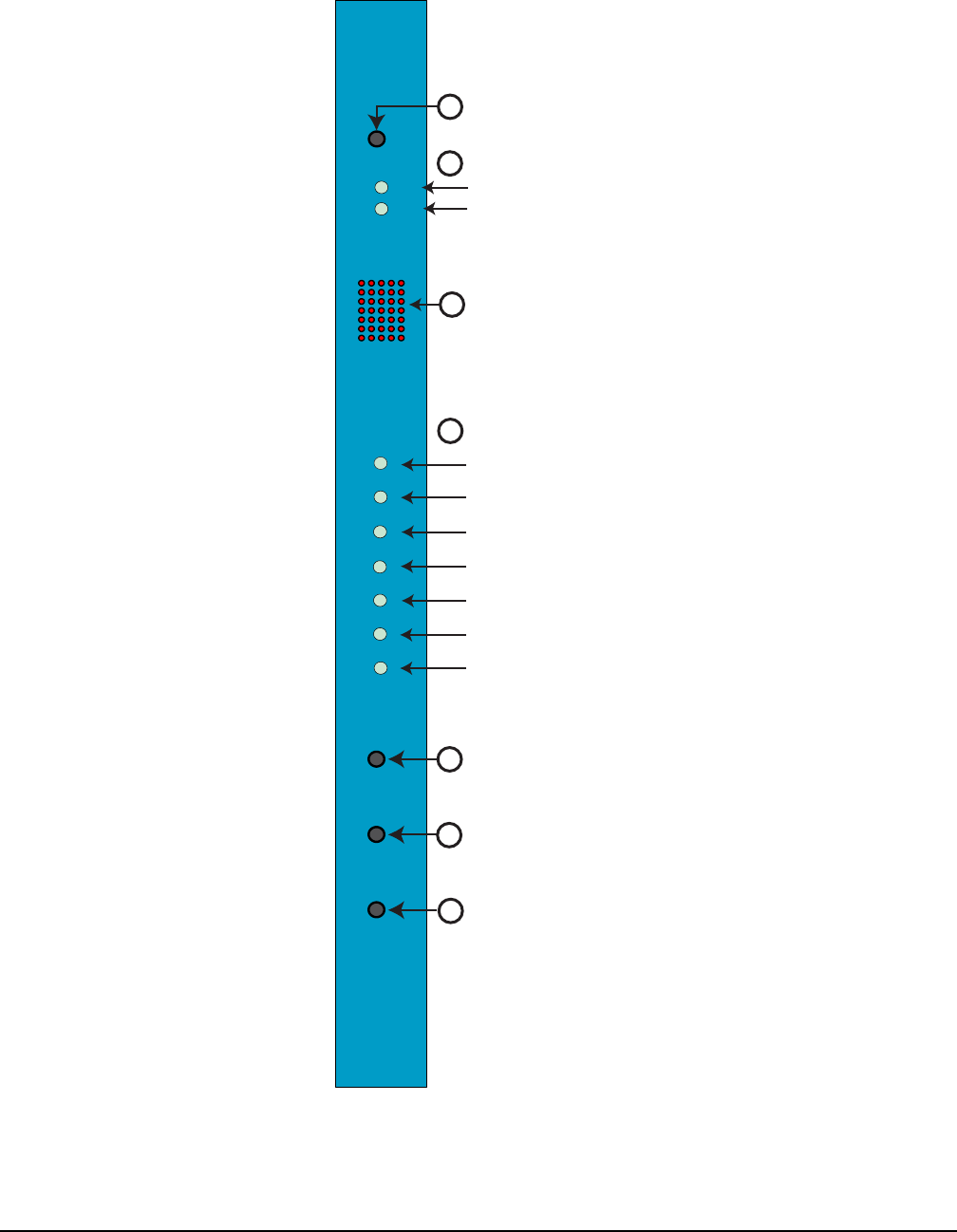

Figure 2-2: CPU Card’s Front Panel Lights and Controls
+5V
+3.3V
CONFIG
ENG
FULL
RESET
RESET
OK
MASTER
IPC
LAN A
LAN B
IN SYNC
1
RESET BUTTON
POWER SUPPLY LIGHTS
STATUS LIGHTS
CONFIGURATION ("CONFIG") BUTTON
DEFAULT IP ADDRESS RESET BUTTON
Press with full reset and reset to set default IP address
FULL RESET BUTTON
When lit, +5-volt power supply is on
When lit, +3.3-volt power supply is on
When flashing, software is running
Blinks when two CPU cards are exchanging information
When lit, this CPU card is acting as master card
Blinks when LAN A is connected and running
Blinks when LAN B is connected and running
Blinks when multiple matrices are connected and synchronized
Indicates comms activity when lit
SI
When held through a reset cycle, results in a full system reset.
When pressed with the ENG button and reset button sets the
default IP address
2
4
5
6
7
3
DOT MATRIX LIGHTS
Displays the number of the currently selected software configuration
