Clear-Com
Eclipse Omega Instruction Manual
7-22
LOCAL AREA NETWORK CONNECTORS (LAN1 AND
LAN2)
The “LAN1” and “LAN2” connectors have standard Ethernet pin
assignments.

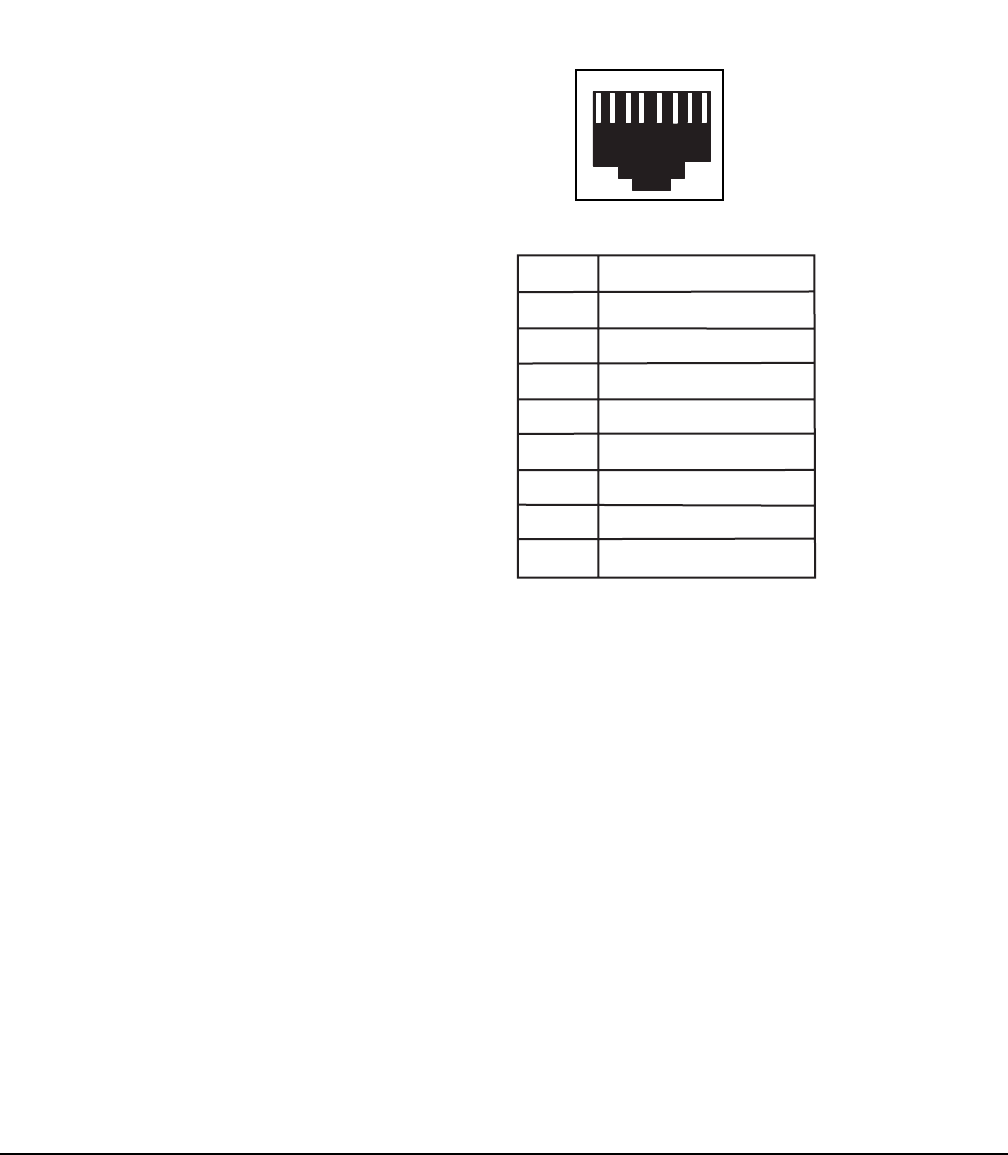

Figure 7-15: Pin Assignments for LAN1 and LAN2 Connectors
8
7
6
5
4
3
2
1
LAN1 and LAN2
Ethernet RJ-45 Connectors
PIN
FUNCTION
1
2
3
4
5
6
7
8
Transmit data +
Transmit data –
Receive data +
Unused
Unused
Receive data –
Unused
Unused
