Clear-Com
Eclipse Omega Instruction Manual
7-14

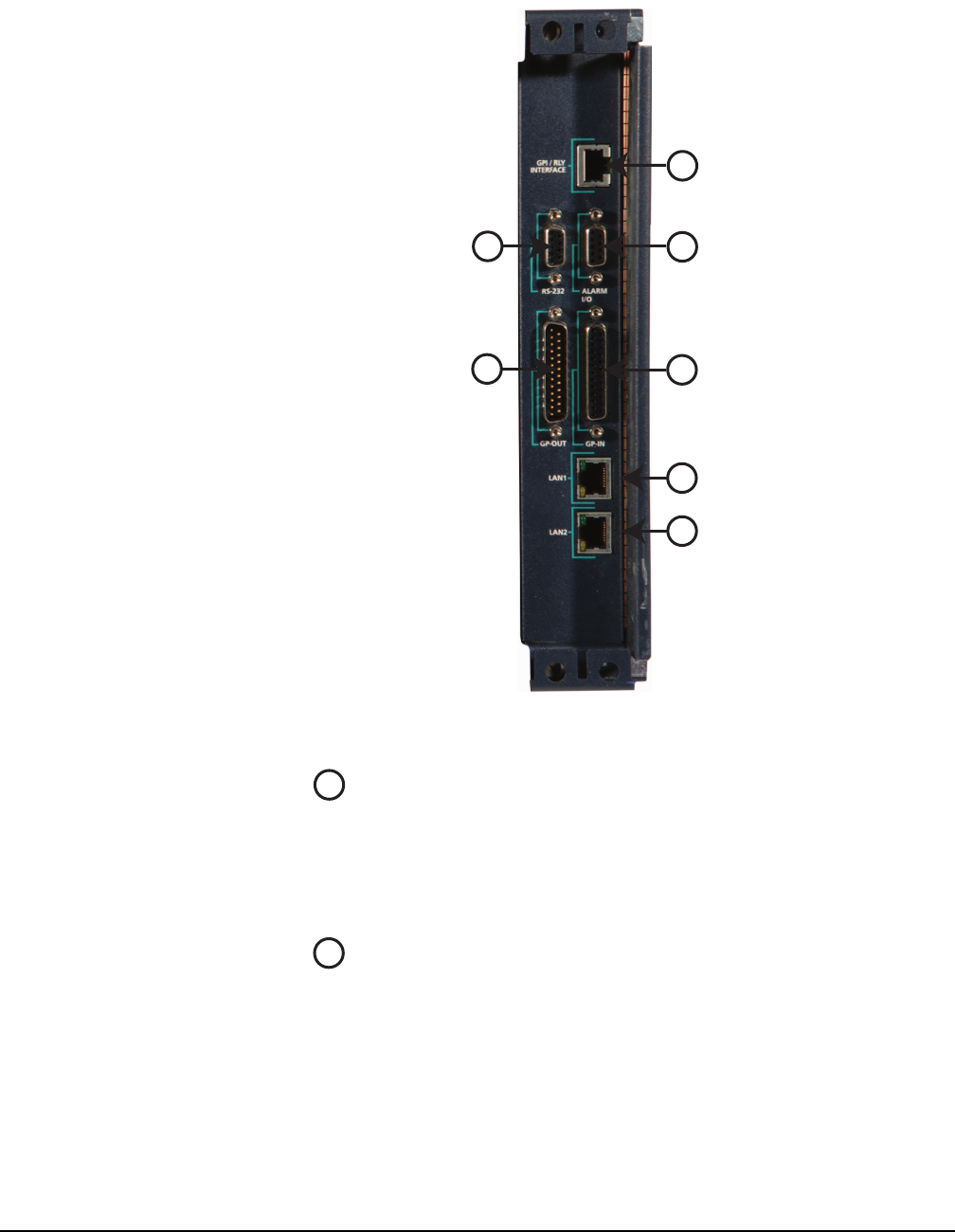

Figure 7-6: CPU Card Interface Connectors
GPI/RLY INTERFACE CONNECTOR
For wiring pinout information for GPI/RLY interfaces, see the Relay
Interface Module (RLY-6) Instruction Manual (part 810310Z) and the
General Purpose Inputs (GPI-6) Instruction Manual (part 810309Z) in
the set of manuals supplied with the Eclipse system.
RS-232 DB-9 CONNECTOR
The DB-9 connector labeled “RS-232” connects the Eclipse matrix to
an external computer.
To connect a computer to the matrix, run cable from the matrix’s
“RS-232” connector to the PC’s serial port. The maximum
recommended length of the cable is approximately 10 feet (3 meters).
1
2
3
4
5
6
7
GPI/RLY Interface Connector
(RJ-45)
Alarm I/O Connector
(female 9-pin D-type)
General Purpose Inputs Connector
(female 25-pin D-type)
LAN 1 Connector (RJ-45)
LAN 2 Connector (RJ-45)
RS-232 Connector (male 9-pin D-type)
General Purpose Outputs Connector
(male 25-pin D-type)
1
2
