d)After entering Chang Hong page, there are a total
of 38 group code, the phone will automatically start
from the first group code down search (You can also
click the Up / Down buttons for manual and
automatic two combinatorial searching). When the TV
switch reaction occurs, click the stop key, Then click
the test button to test whether all buttons can match
the current users’ TV, as shown in figure 5. Figure 5,
if al l o r most of the buttons can co r rect remote
control the current TV, please save and name the
device name (such as living room TV), otherwise click
Cancel to continue searching other data codes. Figure
5, some keys are grayed, which means that ther e is no
data, it can study alone, and it can also be used for
incorrect individual data buttons for individual
learning, key to re-learning, as shown in figure 6.

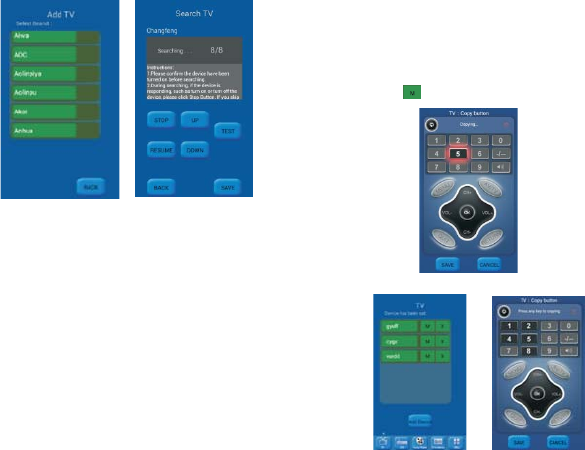

Figure 4. Adding Chang Hong TV
Figure 5. Remote Control Sending Code
Figure 6. Some button to modify learning
