Display Panel

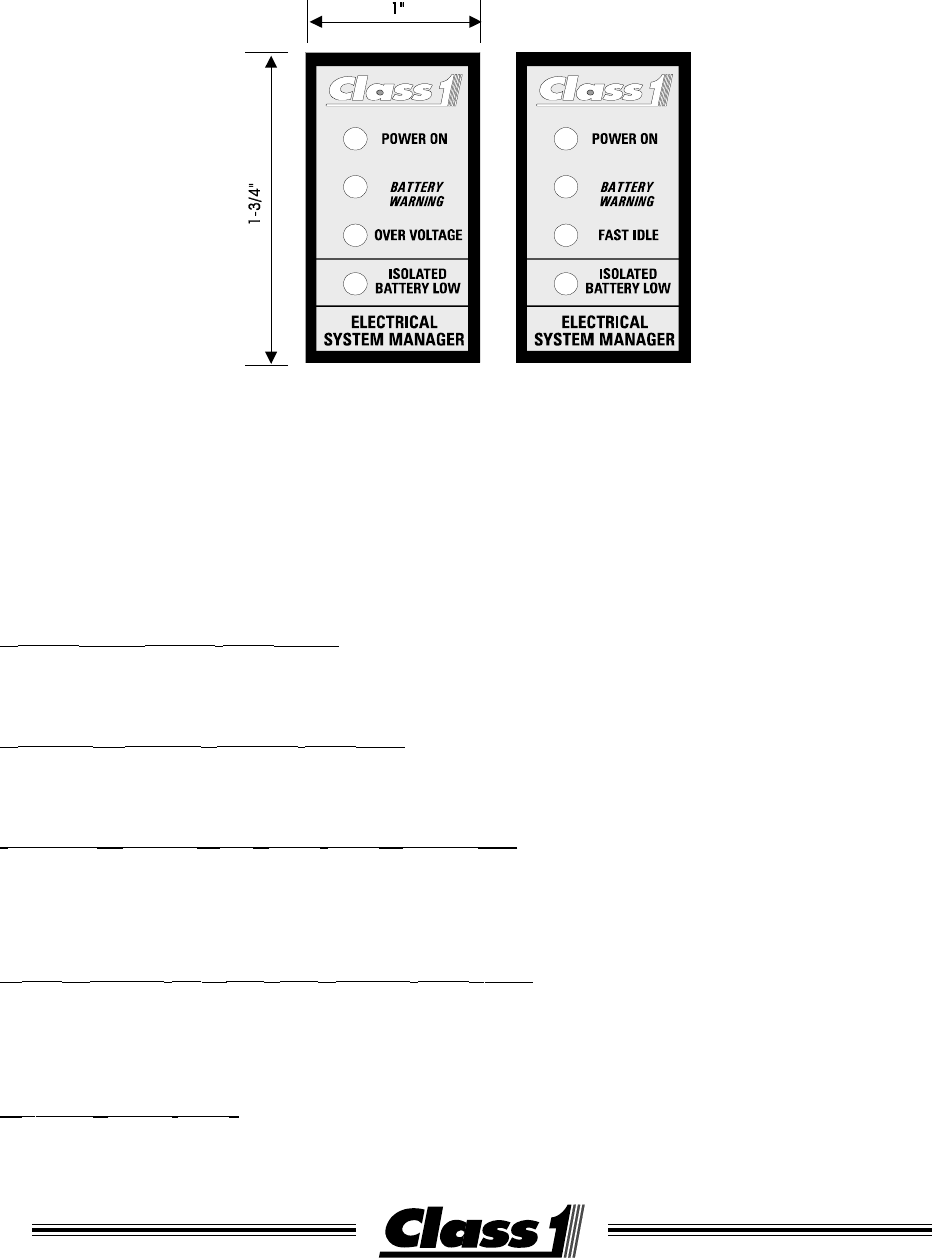

STANDARD PANEL DISPLAY
The Class1 Electrical System Manager is supplied with an indicator panel.
The indicator panel is designed to fit in a standard rocker switch cutout ( 7/8” x 1-1/2”).
The indicator panel consists of four LED’s:
POWER ON (GREEN WIRE) T13
This LED illuminates when power is applied to the System Manager.
BATTERY WARNING (YELLOW WIRE) T8
This LED activates when the system voltage drops below 11.9 VDC.
ISOLATED BATTERY LOW (BLUE WIRE) OPTION T7
This LED illuminates when an auxiliary battery voltage drops below 11.9
VDC.
OVER-VOLTAGE OR FAST IDLE (BROWN WIRE) T15
This LED illuminates when system voltage drops below 12.8 VDC or rises
above 15.0 VDC as configured by SW1 switch 3.
GROUND (BLACK WIRE)
Connected to system ground.
