Digital Flowmeter Information
4.380
.683
2.750
.037
R.370
5.000"
3.750"
3.564"
R 1.325"

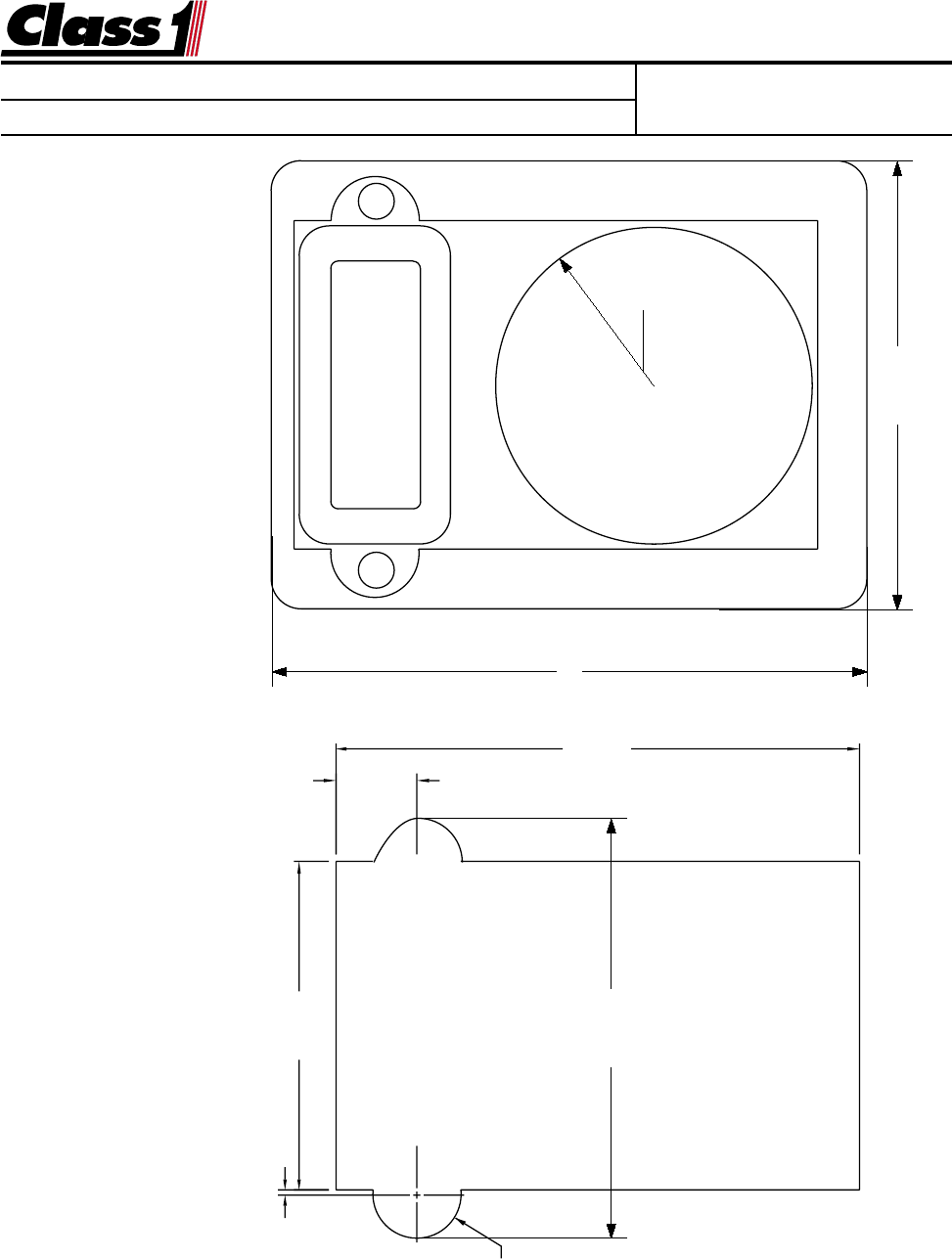

The Value Series flowmeter uses the digital display and a 2-1/2” pressure gauge to give the pump operator
information on both flow and pressure for the discharge.
A stainless steel bezel is available that can have insets color coded to identify the associated discharge.
The panel cutout is a little more difficult than just mounting a gauge and a display and some planning
should be given to cutting out the panel and mounting this system before using the bezel.
