Owner manual

page 4 of 6 pages
Engineering
Standards
Name Digital Aerial Warning Display
Identifier Installation Information
Engineering Standard Number
C1-102342-A
PIN COLOR CIRCUIT 1 OEM Alarm 2 BLACK Signal 3 RED 10 VDC 4 RED V IGN 5 BLACK GND 6 Black Sensor - 7 PLUG --- 8 OEM Silence
PRIMARY DISPLAY
PIN COLOR CIRCUIT 1 RED 10 VDC 2 BLACK SIGNAL
DISPLAY 2 Signal Wire
SENSOR
PIN COLOR CIRCUIT 1 BLACK SIGNAL 1 2 WHITE SIGNAL 2 3 BLACK XDucer IN 4 RED V IGN 5 BLACK GND 6 PLUG -- 7 RED T V+ 8 PLUG --
DUAL OUTPUT CONVERTER
12"
12"
2.5'
5'
2.5'
2.5'
10'
Ignition
Ground
PIN COLOR CIRCUIT 1 OEM Alarm 2 White Signal 3 PLUG --- 4 RED V IGN 5 BLACK GND 6 PLUG --- 7 PLUG --- 8 OEM Silence
Secondary DISPLAY
Turntable
or
Reel

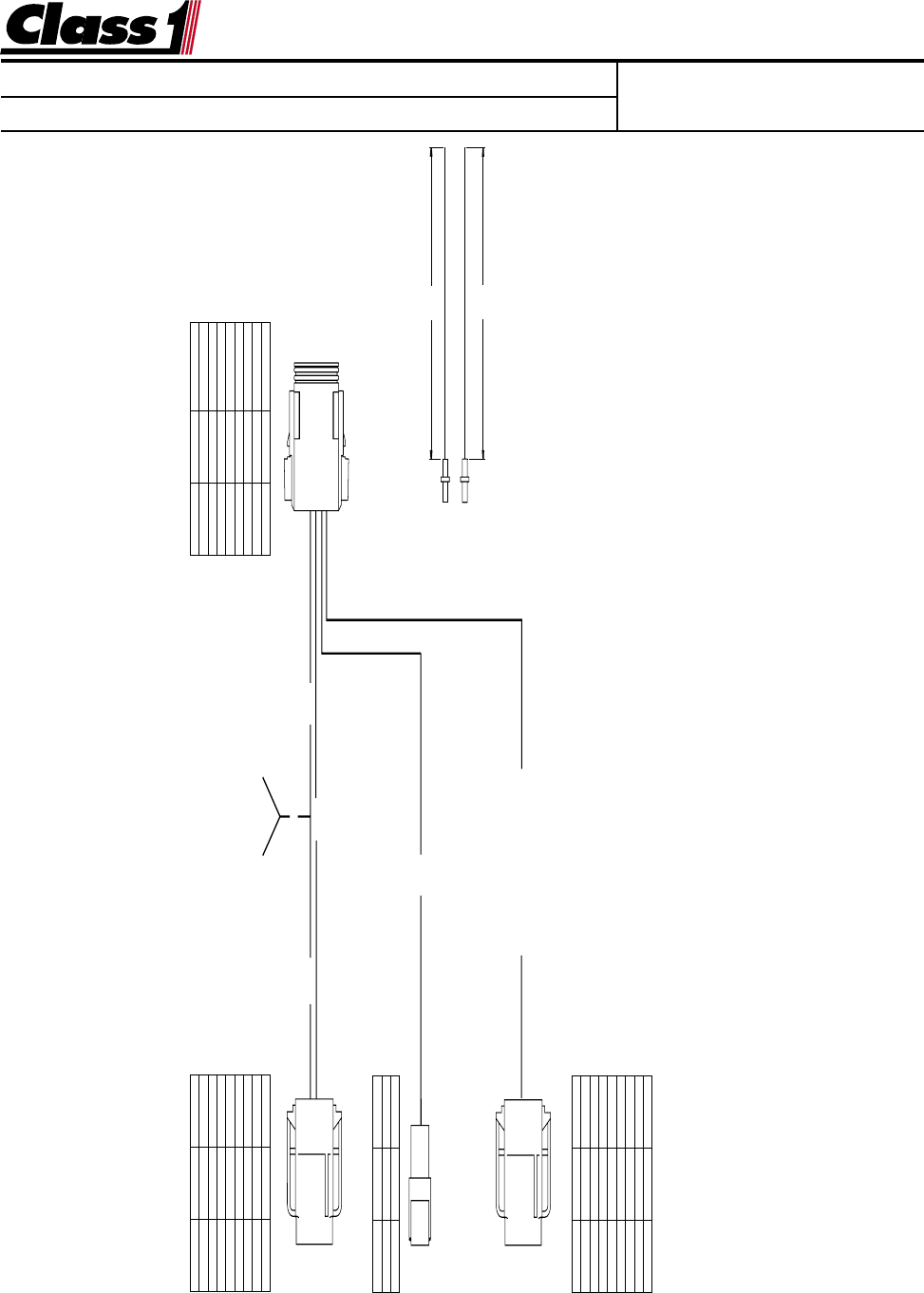

Dual Display Wiring
