OPERATION MANUAL
DATE 10/23/2007
PRODUCT GROUP ITL P/N 12V: 113739 ; 24V: 114378 REV 1.20
607 NW 27th Ave
Ocala, FL 34475
Ph: 352-629-5020 or 1-800-533-3569
Fax : [phone] or 1-800-520-3473
PRODUCT
4 LIGHT INTELLI-TANK DISPLAY WITH 1-wire and CAN
BY AMS
DATASHEET P/N:114356 - UNCONTROLLED IN PRINTED FORMAT - PRINTED: 10/24/07
3.2. Magnetic switches

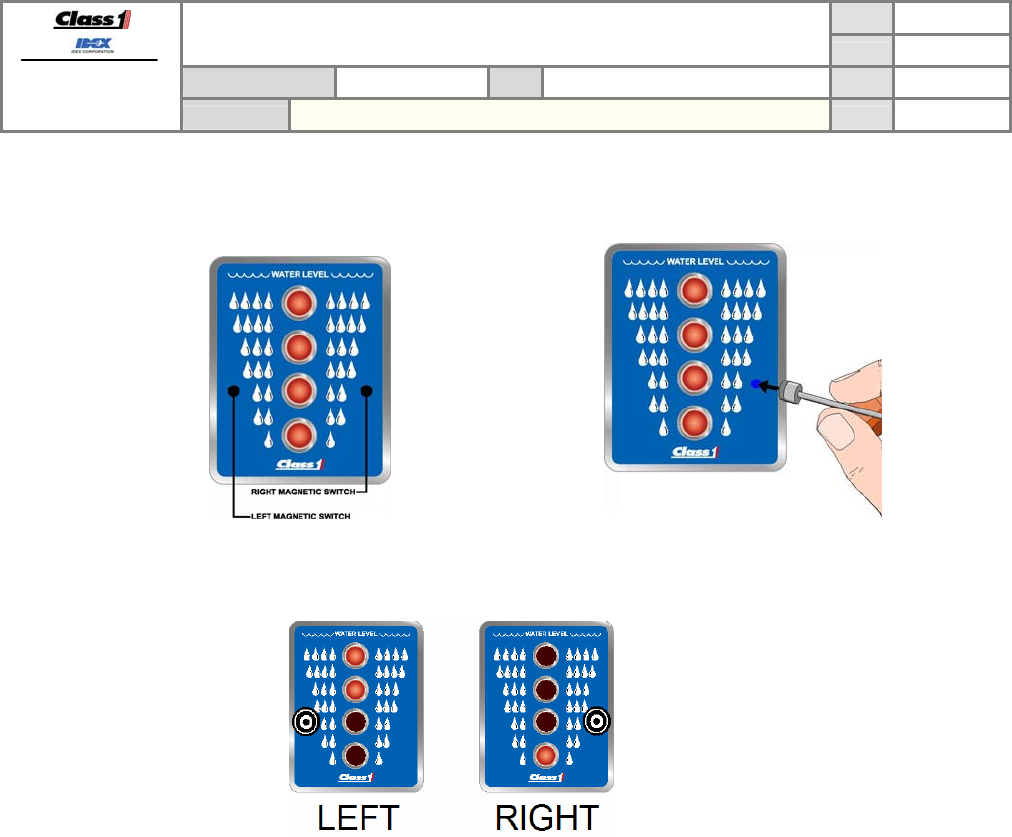

The display has two magnetic switches (left and right). The magnetic switches are activated by using a magnet and
touching the front of the display on either side of LED 2.
For best results the magnet should be positioned over the desired magnet approximately 2 inches from the front of
the display, pushed directly to the front of the display, and then pulled back to the start position.
The LEDs on the display will indicate which switch was activated (upper two LEDs = left switch, bottom LED = right
switch) for approximately half a second and then the display will go blank.
The maximum time between magnetic switch activations is two seconds. If longer than two seconds have passed
between activations the unit will resume normal operation and the password attempted will be reset.
