7.5.5. CAN method, pump sensor module and 1 remote

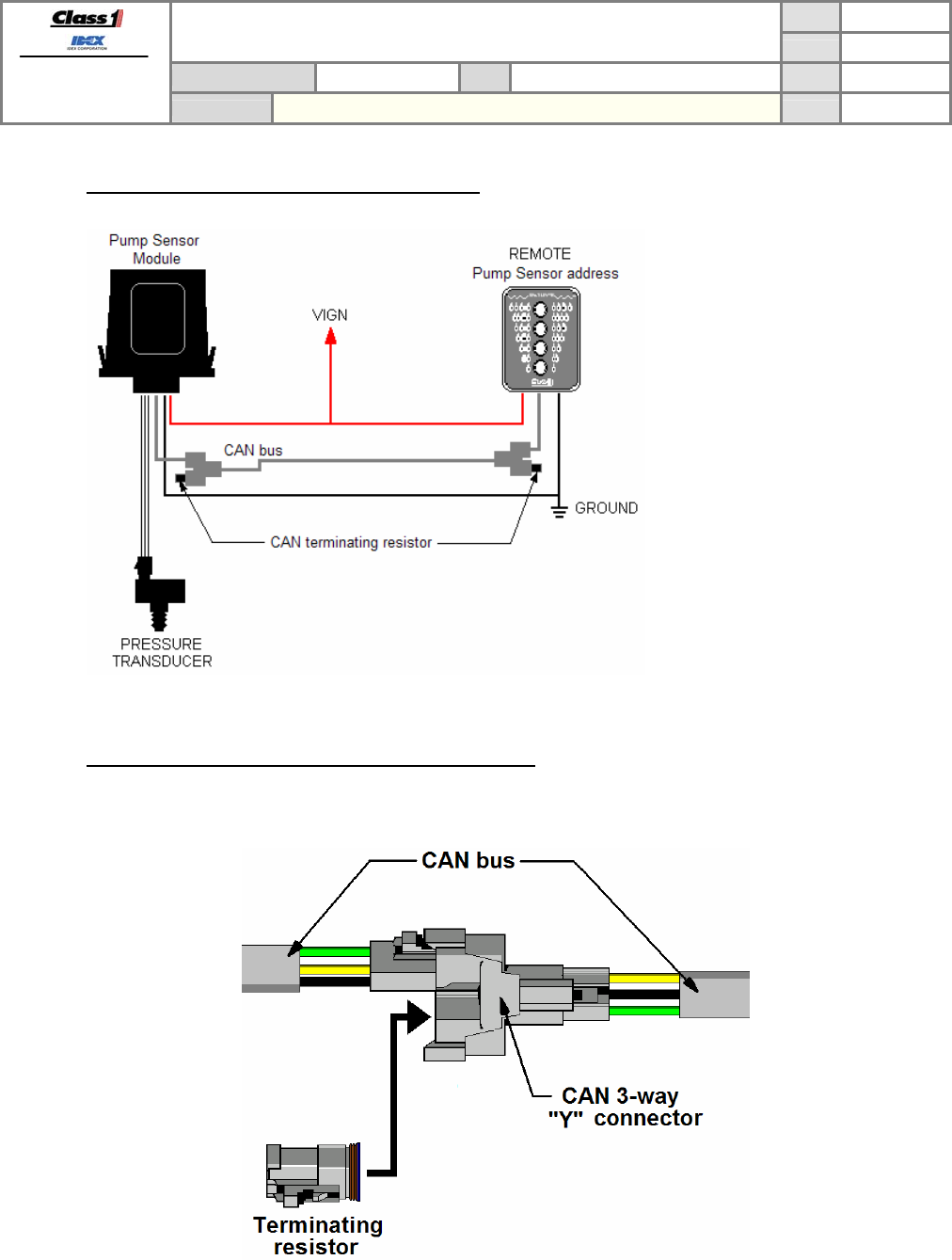

System configured with CAN communication method. This example shows one remote display (using pump
sensor module address) following the indications of the Class 1 Pump Sensor Module.
7.5.6. Terminating resistor requirement (CAN communication)
A terminating resistor (120 Ohm) is required on both ends of the CAN bus for proper operation. Only two
terminating resistors are allowed on a CAN bus.
Terminating resistor p/n DT06-3S-P006
CAN “Y” connector p/n DT04-3P-P007
