4 LIGHT INTELLI-TANK DISPLAY WITH 1-wire and CAN
BY AMS
DATASHEET P/N:114356 - UNCONTROLLED IN PRINTED FORMAT - PRINTED: 10/24/07

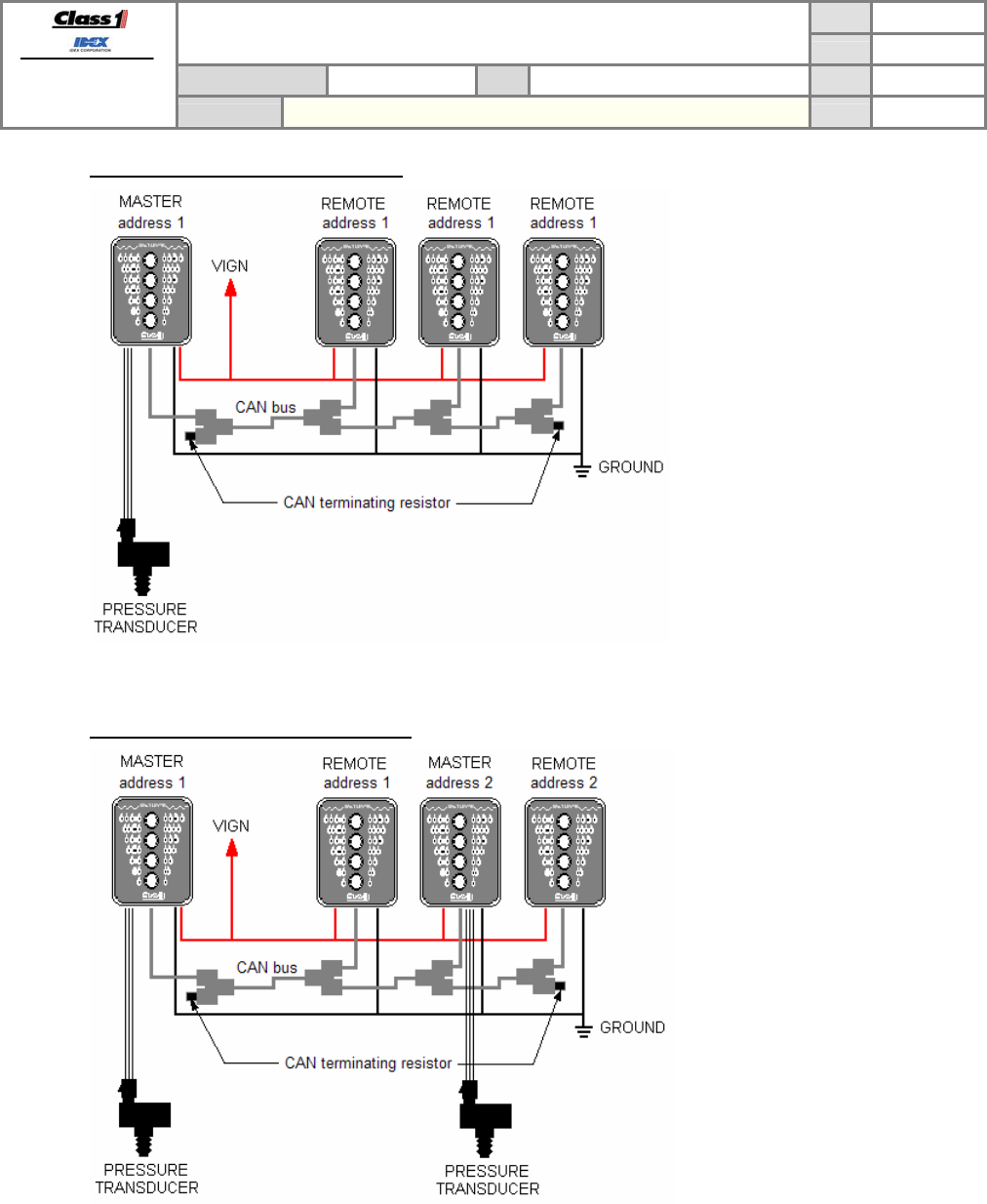

7.5.3. CAN method, 1 master and 3 remotes
System configured with CAN communication method. This example shows one master display (address 1)
communicating with 3 remote displays (address 1).
7.5.4. CAN method, 2 masters and 2 remotes
System configured with CAN communication method. This example shows two master displays (address 1 and 2)
communicating with 2 remote displays (address 1 and 2). Remote display address 1 only follows the indications of
master display address 1, and remote display address 2 only follows the indications of master display address 2.
