6.3. Label orientation

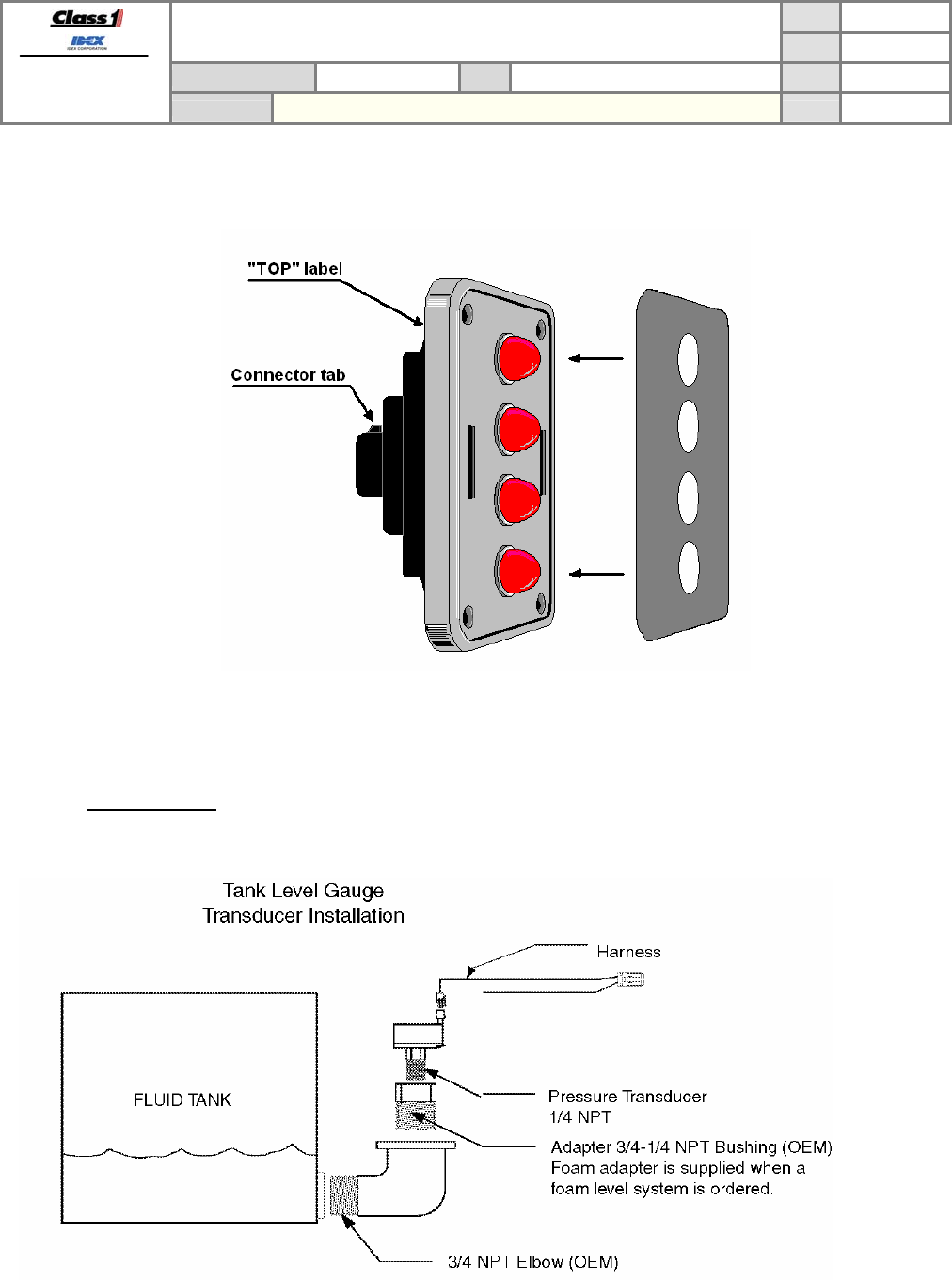

Before mounting the display and adhering the label insure that the display is situated correctly (TOP is UP). Refer to
the drawing for orientation.
6.4. Pressure transducer
The transducer has a ¼” NPT mount and must be mounted vertically as depicted to insure an accurate reading.
6.4.1. Approved fluids
The pressure transducer has been tested and approved for water, foam A, and foam B.
