Operation Manual
Table Of Contents

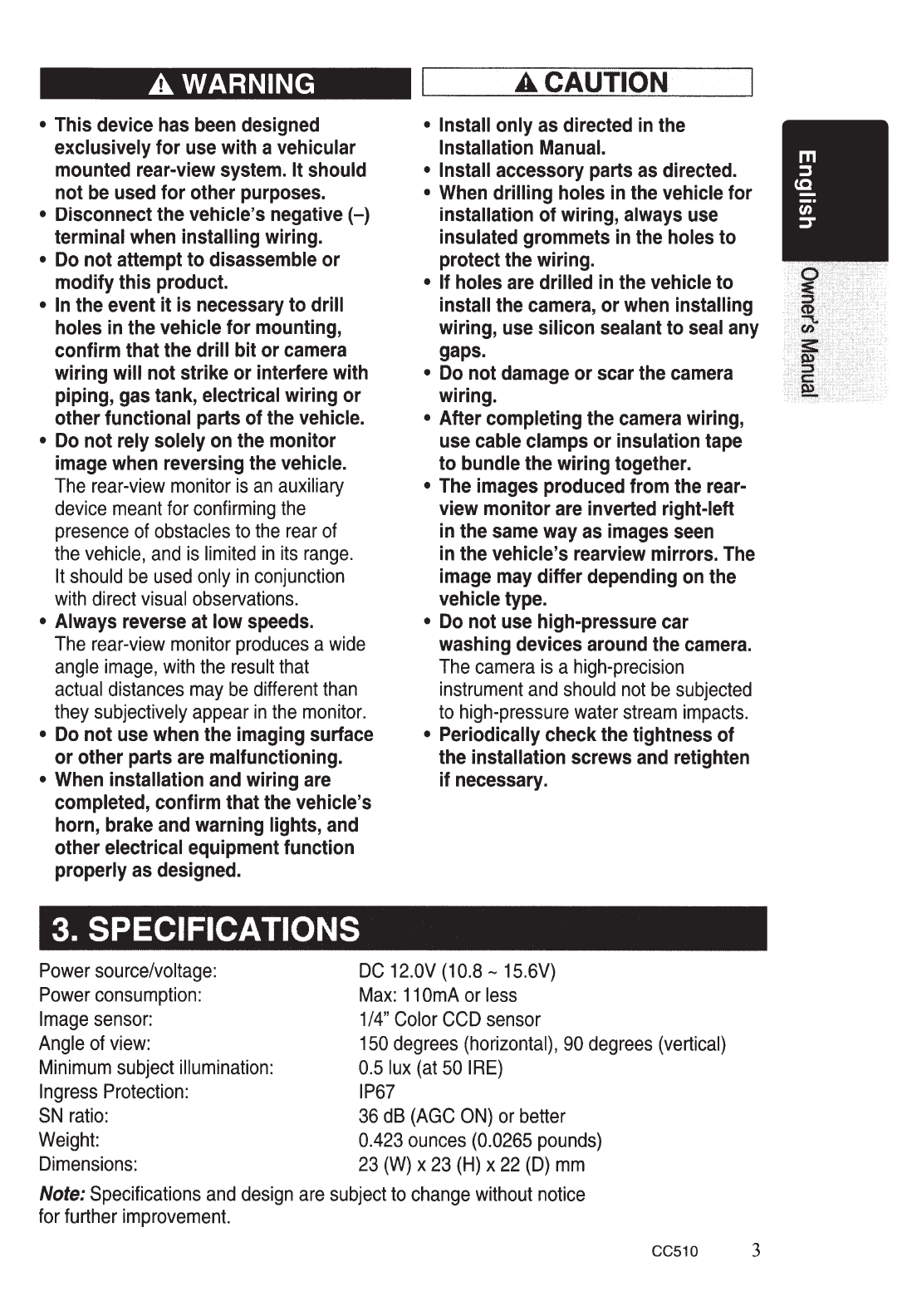

A WARNING
• This device has been designed
exclusively for use with a vehicular
mounted rear-view system. It should
not
be
used for other purposes.
• Disconnect the vehicle's negative(-)
terminal when installing wiring.
•
Do
not attempt to disassemble or
modify this product.
•
In
the event
it
is necessary to drill
holes in the vehicle for mounting,
confirm that the drill bit
or
camera
wiring will not strike or interfere with
piping, gas tank, electrical wiring
or
other functional parts of the vehicle.
•
Do
not rely solely on the monitor
image when reversing the vehicle.
The
rear-view
monitor
is
an
auxiliary
device
meant
for
confirming
the
presence
of
obstacles
to
the
rear
of
the
vehicle,
and
is
limited
in
its
range.
It
should
be
used
only
in
conjunction
with
direct
visual
observations.
• Always reverse at low speeds.
The
rear-view
monitor
produces
a
wide
angle
image,
with
the
result
that
actual
distances
may
be
different
than
they
subjectively
appear
in
the
monitor.
•
Do
not use when the imaging surface
or
other parts are malfunctioning.
• When installation and wiring are
completed, confirm that the vehicle's
horn, brake and warning lights, and
other electrical equipment function
properly as designed.
3. SPECIFICATIONS
A
CAUTION
• Install only as directed in the
Installation Manual.
• Install accessory parts
as
directed.
• When drilling holes in the vehicle for
installation
of
wiring, always use
insulated grommets in the holes to
protect the wiring.
• If holes are drilled in the vehicle to
install the camera,
or
when installing
wiring, use silicon sealant to seal any
gaps.
•
Do
not damage or scar the camera
wiring.
• After completing the camera wiring,
use cable clamps
or
insulation tape
to bundle the wiring together.
• The images produced from the rear-
view monitor are inverted right-left
in the same way as images seen
in the vehicle's rearview mirrors. The
image may differ depending on the
vehicle type.
•
Do
not use high-pressure car
washing devices around the camera.
The
camera
is
a
high-precision
instrument
and
should
not
be
subjected
to
high-pressure
water
stream
impacts.
• Periodically check the tightness
of
the installation screws and retighten
if
necessary.
Power
source/voltage:
DC
12.0V
(1
0.8
-
15.6V)
Power
consumption:
Max:
11
OmA
or
less
sensor:
1/4"
Color
CCD
sensor
Angle
of
view:
150
degrees
(horizontal),
90
degrees
(vertical)
Minimum
subject
illumination:
0.5
lux
(at
50
IRE)
Ingress
Protection:
IP67
SN
ratio:
36
dB
(AGC
ON)
or
better
Weight:
0.423
ounces
(0.0265
pounds)
Dimensions:
23
(W)
x
23
(H)
x
22
(D)
mm
Note:
Specifications
and
design
are
subject
to
change
without
notice
for
further
improvement.
CC510 3
