User guide
Note: The top two flange holes on valve size 36 are threaded to 1 1/2"-6 UNC.
Cla-Val Control Valves operate with maximum efficiency when mounted in horizontal piping with the main valve cover UP, however, other positions are acceptable. Due to
component size and weight of 8 inch and larger valves, installation with cover UP is advisable. We recommend isolation valves be installed on inlet and outlet for maintenance.
Adequate space above and around the valve for service personnel should be considered essential. A regular maintenance program should be established based on the specific
application data. However, we recommend a thorough inspection be done at least once a year. Consult factory for specific recommendations.
Valve Size (Inches)
3
⁄8
1
⁄2
3
⁄4 1 1
1
⁄4 1
1
⁄2 2 2
1
⁄2 3 4 6 8 10 12 14 16 18 20 24 30
A Threaded
2.75 3.50 3.50 5.12 7.25 7.25 9.38 11.00 12.50 — — — — — — — — — — —
AA 150 ANSI
— — — — — 8.50 9.38 11.00 12.00 15.00 20.00 25.38 29.75 34.00 39.00 41.38 46.00 52.00 61.50 63.00
AAA 300 ANSI
— — — — — 9.00 10.00 11.62 13.25 15.62 21.00 26.38 31.12 35.50 40.50 43.50 47.64 53.62 63.24 64.50
AAAA Grooved End
— — — — — 8.50 9.00 11.00 12.50 15.00 20.00 25.38 — — — — — — — —
B Dia.
2.50 3.12 3.12 4.38 5.62 5.62 6.62 8.00 9.12 11.50 15.75 20.00 23.62 28.00 32.75 35.50 41.50 45.00 53.16 56.00
C Max.
2.33 5.88 5.88 6.25 7.62 7.62 8.56 10.31 11.19 14.25 18.44 21.81 23.38 29.31 32.12 35.00 49.43 53.09 56.50 68.70
CC Max. Grooved End
— — — — — 6.87 7.81 9.63 10.25 13.50 17.18 20.43 — — — — — — — —
D Threaded
— — — — 3.25 3.25 4.75 5.50 6.25 — — — — — — — — — — —
DD 150 ANSI
— — — — — 4.00 4.75 5.50 6.00 7.50 10.00 12.69 14.88 17.00 19.50 20.81 — — — —
DDD 300 ANSI
— — — — — 4.25 5.00 5.88 6.38 7.88 10.50 13.25 15.56 17.75 20.25 21.62 — — — —
DDDD Grooved End
— — — — — — 4.75 — 6.00 7.50 — — — — — — — — — —
E
1.25 0.88 0.88 1.63 1.12 1.12 1.50 1.69 2.06 3.19 4.31 5.31 9.25 10.75 12.62 15.50 12.95 15.00 17.75 21.31
EE Grooved End
— — — — — 2.00 2.50 2.88 3.12 4.25 6.00 7.56 — — — — — — — —
F 150 ANSI
— — — — — 2.50 3.00 3.50 3.75 4.50 5.50 6.75 8.00 9.50 10.50 11.75 15.00 16.50 19.25 22.50
FF 300 ANSI
— — — — — 3.06 3.25 3.75 4.13 5.00 6.25 7.50 8.75 10.25 11.50 12.75 15.00 16.50 19.25 24.00
G Threaded
— — — — 1.88 1.88 3.25 4.00 4.50 — — — — — — — — — — —
GG 150 ANSI
— — — — — 4.00 3.25 4.00 4.00 5.00 6.00 8.00 8.62 13.75 14.88 15.69 — — — —
GGG 300 ANSI
— — — — — 4.25 3.50 4.31 4.38 5.31 6.50 8.50 9.31 14.50 15.62 16.50 — — — —
GGGG Grooved End
———— — —3.25— 4.255.00 — —
— — — — — — — —
H NPT Body Tapping
— .125 .125 .25 .375 .375 .375 .50 .50 .75 .75 1 1 1 1 1 1 1 1 2
J NPT Cover Center Plug
.125 .125 .125 .25 .25 .25 .50 .50 .50 .75 .75 1 1 1.25 1.50 2 1.5 1.50 1.50 2
K NPT Cover Tapping
— .125 .125 .25 .375 .375 .375 .50 .50 .75 .75 1 1 1 1 1 1 1 1 2
Valve Stem Internal
Thread UNF
— — — — 10-3210-32 10-32 10-32
1
⁄4-28
1
⁄4-28
3
⁄8-24
3
⁄8-24
3
⁄8-24
3
⁄8-24
3
⁄8-24
1
⁄2-20 3⁄4-16
3
⁄4-16
3
⁄4-16
3
⁄4-16
Stem Travel
— — — —
0.4 0.4 0.6 0.7 0.8 1.1 1.7 2.3 2.8 3.4 4.0 4.5 5.1 5.63 6.75 7.5
Approx. Ship Wt. Lbs.
8 8 8 13 22 22 40 65 95 190 320 650 940 1675 2460 3100 4300 5400 8150 10300

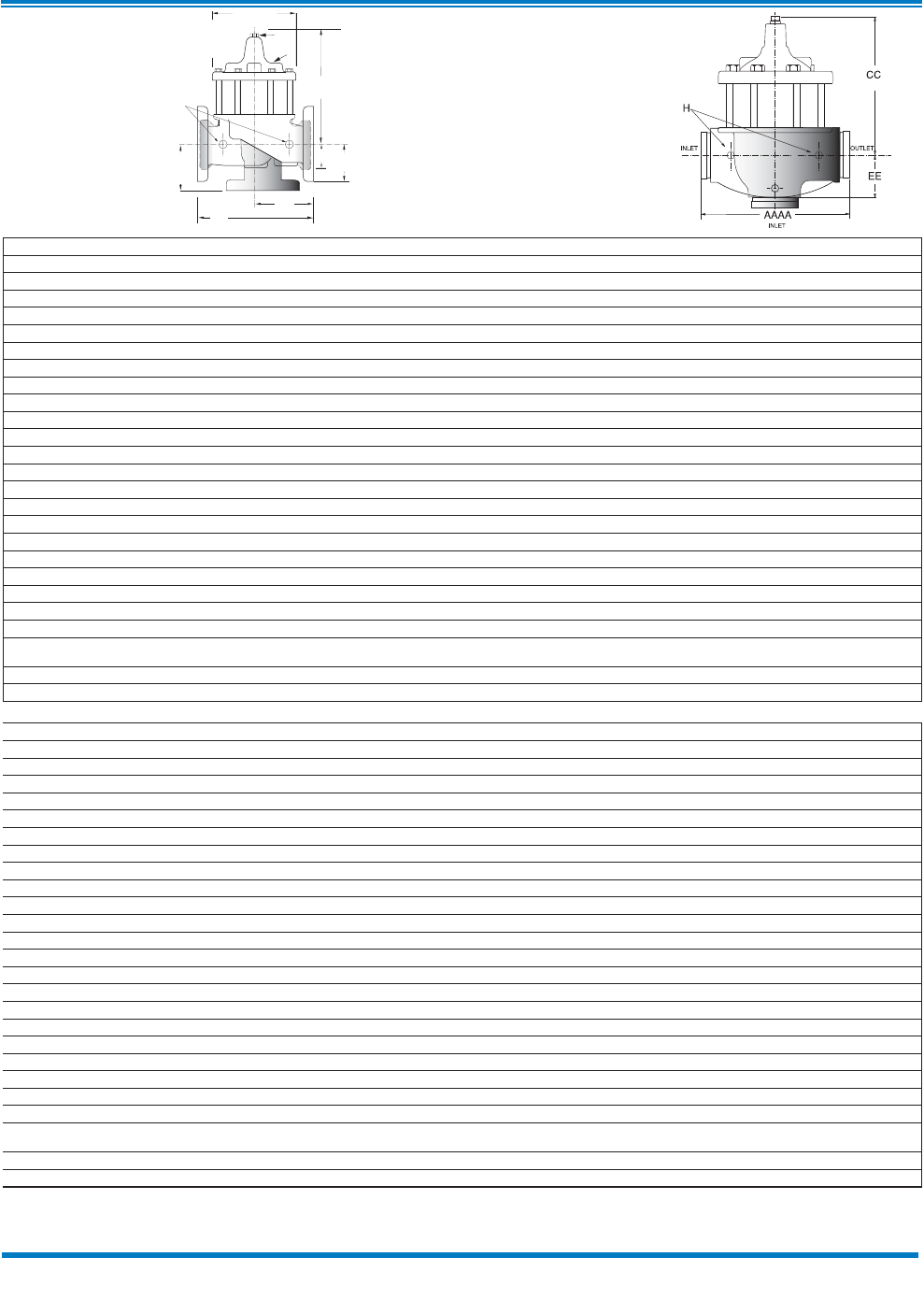

Dimensions
CLA-VAL
Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: claval@cla-val.com • Website cla-val.com
©
E-100-02 (R-9/2011)
Valve Size (mm) 10 15 20 25 32 40 50 65 80 100 150 200 250 300 350 400 450 500 600 750
A Threaded
70 89 89 130 184 184 238 279 318 — — — — — — — — — — —
AA 150 ANSI
— — — — — 216 238 279 305 381 508 645 756 864 991 1051 1168 1321 1562 1600
AAA 300 ANSI
— — — — — 229 254 295 337 397 533 670 790 902 1029 1105 1210 1362 1606 1638
AAAA Grooved End
— — — — 216 216 228 279 318 381 508 645 — — — — — — — —
B Dia.
64 80 80 111 143 143 168 203 232 292 400 508 600 711 832 902 1054 1143 1350 1422
C Max.
59 149 149 159 194 194 217 262 284 362 468 554 594 744 816 889 1255 1348 1435 1745
CC Max. Grooved End
— — — — 174 174 198 245 260 343 436 519 — — — — — — — —
D Threaded
— — — — 83 83 121 140 159 — — — — — — — — — — —
DD 150 ANSI
— — — — — 102 121 140 152 191 254 322 378 432 495 528 — — — —
DDD 300 ANSI
— — — — — 108 127 149 162 200 267 337 395 451 514 549 — — — —
DDDD Grooved End
— — — — — — 121 — 152 191 — — — — — — — — — —
E
32 23 23 42 29 29 38 43 52 81 110 135 235 273 321 394 329 381 451 541
EE Grooved End
— — — — 52 52 64 73 79 108 152 192 — — — — — — — —
F 150 ANSI
— — — — — 64 76 89 95 114 140 171 203 241 267 298 381 419 489 572
FF 300 ANSI
— — — — — 78 83 95 105 127 159 191 222 260 292 324 381 419 489 610
G Threaded
— — — — 48 48 83 102 114 — — — — — — — — — — —
GG 150 ANSI
— — — — — 102 83 102 102 127 152 203 219 349 378 399 — — — —
GGG 300 ANSI
— — — — — 102 89 110 111 135 165 216 236 368 397 419 — — — —
GGGG Grooved End
— — — — — — 83 — 108 127 — — — — — — — — — —
H NPT Body Tapping
— .125 .125 .25 .375 .375 .375 .50 .50 .75 .75 1 1 1 1 1 1 1 1 2
J NPT Cover Center Plug
.125 .125 .125 .25 .25 .25 .50 .50 .50 .75 .75 1 1 1.25 1.50 2 1.5 1.50 1.50 2
K NPT Cover Tapping
— .125 .125 .25 .375 .375 .375 .50 .50 .75 .75 1 1 1 1 1 1 1 1 2
Valve Stem Internal
Thread UNF
— — — — 10-32 10-32 10-32 10-32
1
⁄4-28
1
⁄4-28
3
⁄8-24
3
⁄8-24
3
⁄8-24
3
⁄8-24
3
⁄8-24
1
⁄2-20 3⁄4-16
3
⁄4-16
3
⁄4-16
3
⁄4-16
Stem Travel
— — — —
10 10 15 18 20 28 43 58 71 86 102 114 130 143 171 191
Approx. Ship Wt. Kgs.
1.4 1.4 1.4 6 10 10 18 30 43 86 145 295 426 760 1116 1406 1950 2449 3696 4672
