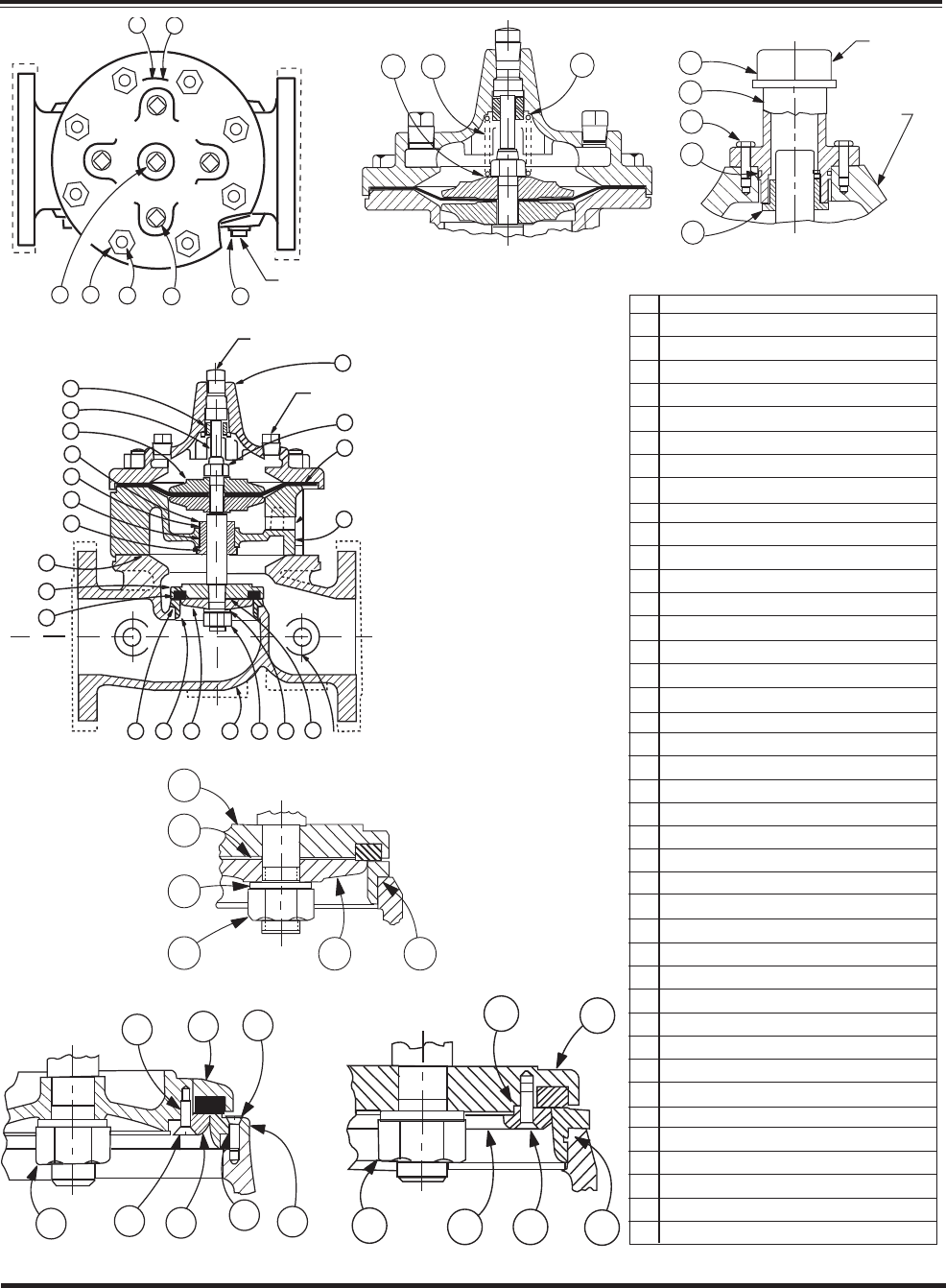

1 CENTER COVER PLUG
2 COVER PLUG
3 STUD NUT
4 COVER BEARING
5 COVER
6 PIPE CAP (16" ONLY)
7 PLUG, PIPE, BODY
8 BOLT HEX HD (16" ONLY)
9 * O-RING (16" ONLY)
10 * GASKET "O" RING
11 UPPER STEM NUT
12 UPPER DlAPHRAGM WASHER
13 * DIAPHRAGM
14 NAMEPLATE
15 * O-RING, STEM
16 RETAINER BEARING (1”-3” ONLY)
RING RETAINER BEARING (4”-16” ONLY)
17 POWERUNIT BEARING
18 * O-RING BEARING (4”-16” ONLY)
19 BOLT, HEX HD. (1”-3” ONLY)
STUD (4”-16” ONLY
20 POWERUNIT BODY
21 LOWER STEM NUT
22 SPACER WASHER
23 DISC GUIDE SCREW (6" - 16" ONLY)
24 DISC GUIDE
25 DISC RETAINER
26 * DISC
27 STEM
28 SEAT SCREW (8”-16” ONLY)
29 SEAT
30 BODY
31 SPRING (100-02KH/100PAKH ONLY)
32 LOCK WASHER - SPRING
33 * SEAT O-RING
34 * GASKET BEARING GASKET (1”-3" ONLY)
35 Screw Fil. HD. (1’-2
1
⁄2”) / BOLT HEX. (3”)
36 UPPER WASHER SPRING (100PKCH)
37 LOWER WASHER SPRING (100PAKCH)
38 DRIVE SCREW
39 COVER BEARING HOUSING (16" ONLY)
