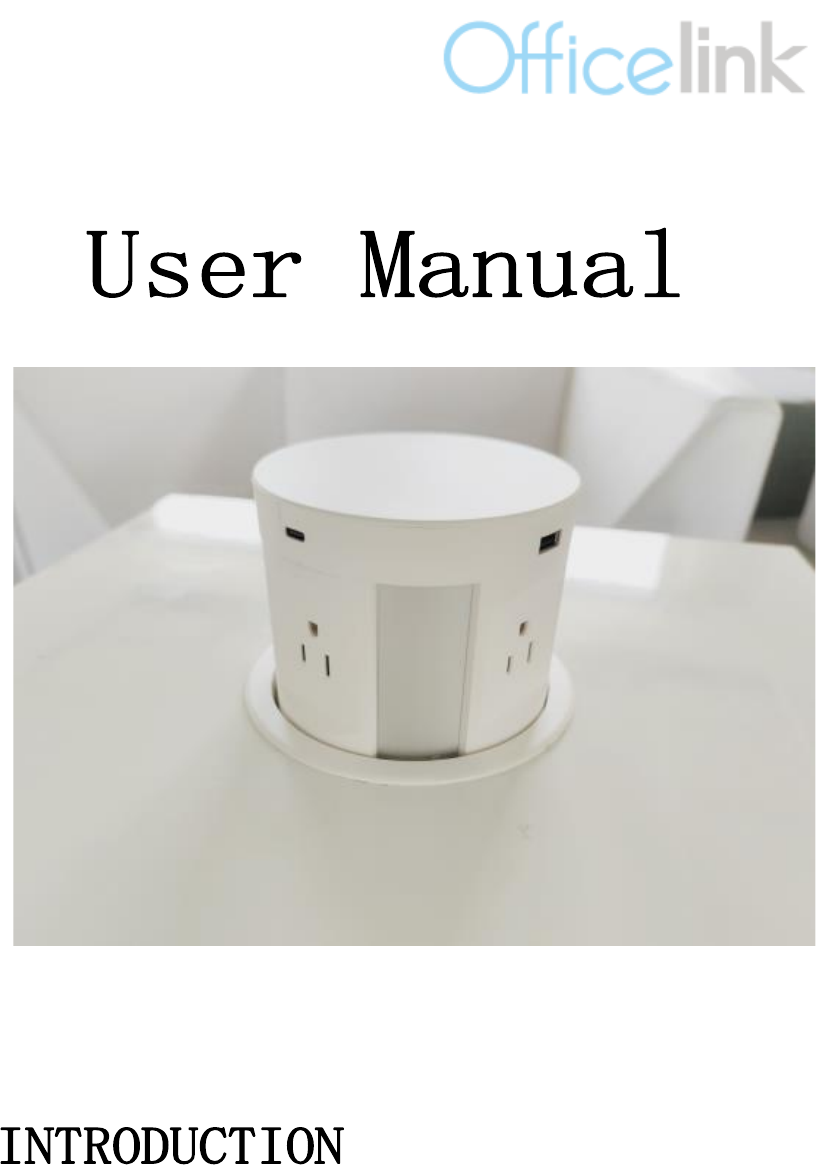

User's Manual

Control No.：05-1074AC1Q-01 User Manual _2021 Version number：A/0

CIXI MINGYE COMMUNICATION AND ELECTRONIC CO.,LTD

The 107 series with 4 sides power outlet, USB charger,wireless

charger into an 12cm diameter body.The top cover is available in

plastic and glass.It is a perfect choice for every work desk,an

universal solution which able to meet different connection

possibilities in the workplace.

PAGE 1
CIXI MINGYE COMMUNICATION AND ELECTRONIC CO.,LTD The 107 series with 4 sides power outlet, USB charger,wireless charger into an 12cm diameter body.The top cover is available in plastic and glass.It is a perfect choice for every work desk,an universal solution which able to meet different connection possibilities in the workplace. Control No.
PAGE 2
Rate current 15A Rate voltage 125V~ Max power 1875W Provision for earthing with earthing contact Number of poles 2P+ Optional function Wireless charging, USB charging Wireless charging frequency band:111-200KHz the maximum RF Power: 5W USB charger I/P:125V~,60Hz,0.25A×2,O/P:5Vd.c. 3.1A×2 Color Black,White（can custom made） Protection against electric shock IP20 Note: ●When wireless charging does not work, the total output of USB charging is 3.1A*2.
PAGE 3
Place product (OnΦ12cm cut out ) Screw on Push the button The socket will rise to the working position by itself Wireless charger:just put phone on the socket Control No.
PAGE 4
With USB charger (two type A+two type C) Push it down to the close position Control No.
