— 23 —

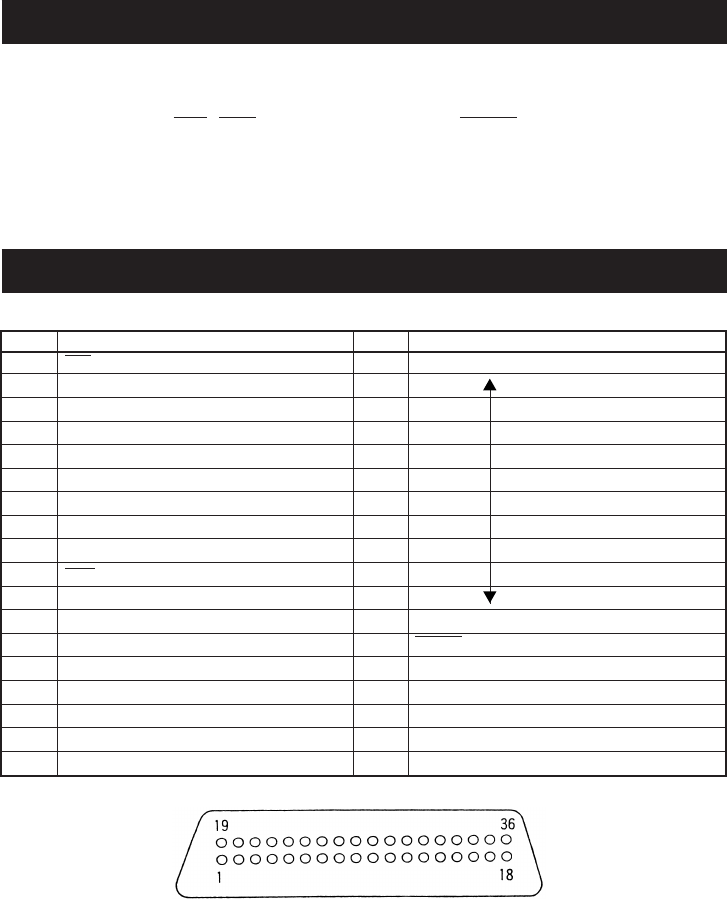

Pin Signal Name Pin Signal Name
1 STB 19 TWISTED PAIR GND
2DATA 1 20
3DATA 2 21
4DATA 3 22
5DATA 4 23
6DATA 5 24
7DATA 6 25
8DATA 7 26
9DATA 8 27
10 ACK 28
11 BUSY 29
12 P.N.E. 30 TWISTED PAIR GND
13 SELECT 31 RESET *1
14 GND 32 FAULT *2
15 33 GND
16 GND 34
17 FRAME GND 35
18 36
*1: For RESET signal, Enable/Disable can be selected by DIP switch No. 3.
*2: Changing the internal resistance enables H/L level (fixed).
5. PARALLEL INTERFACE
5.1 Specifications
(1) Data input system: 8 bit parallel (DATA 1-8).
(2) Control signal: STB, ACK, BUSY, P.N.E., SELECT, RESET
(3) Compatible connector:
Printer side: 57LE-40360 (ANPHENOL or equivalent)
Cable side: 57-30360 (ANPHENOL or equivalent)
5.2 Connector Pin Assignment
