Specifications

Cisco UCS Cisco UCS C220 M4 High-Density Rack Server (Large Form Factor Disk Drive Model)
DETAILED VIEWS
5
Chassis Rear View
Figure 3 shows the external features of the rear panel.

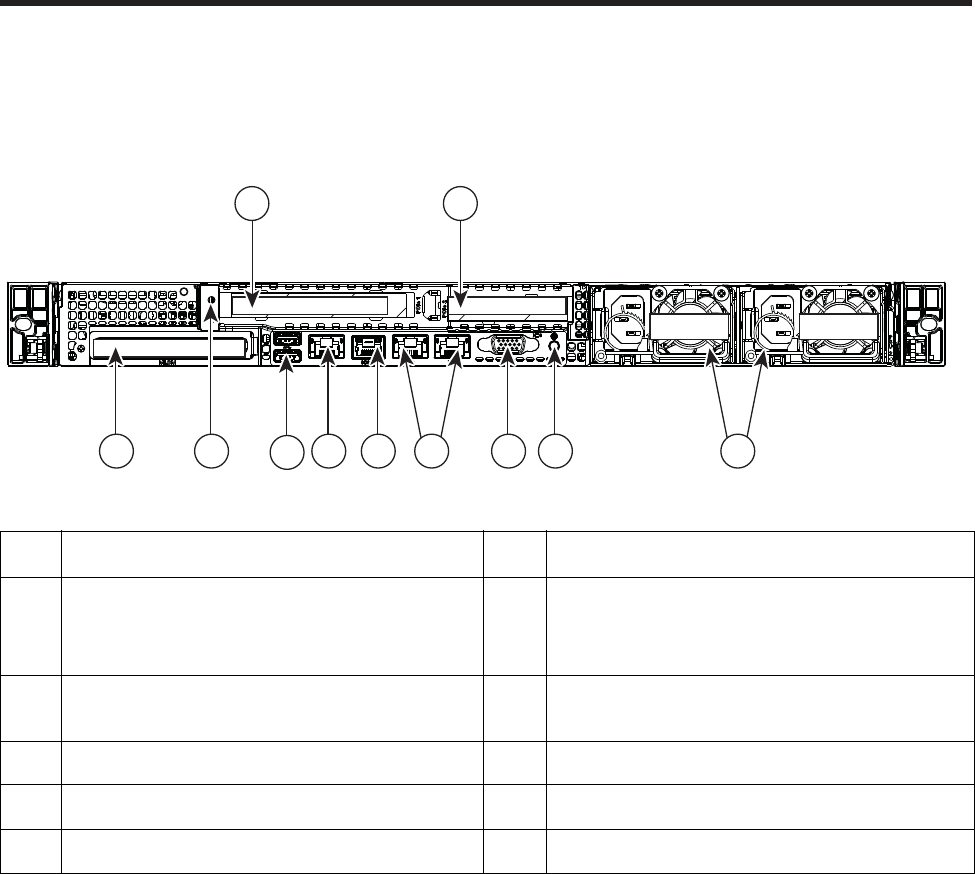

Figure 3 Chassis Rear View
1 PCIe riser 1/slot 1 7
Serial port (RJ-45 connector)
1
Notes . . .
1. For details of the serial port pinout, see Serial Port Details, page 62.
2 PCIe riser 2/slot 2 8 Two embedded (on the motherboard) Intel
i350 GbE Ethernet controller ports
(LAN1, LAN2)
3 Modular LAN-on-motherboard (mLOM) card
slot
9 VGA video port (DB-15)
4 Grounding-lug hole (for DC power supplies) 10 Rear Identification button/LED
5 USB 3.0 ports (two) 11 Power supplies (up to two, redundant as 1+1)
6 1-Gb Ethernet dedicated management port
352977
mLOM
PCIe 01 PCIe 02
PSU 01 PSU 02
1 2
3 6 7 9 108 11
5
4
