Chapter 1 Overview of Cisco Interface Cards
Cisco 1700 Series Routers

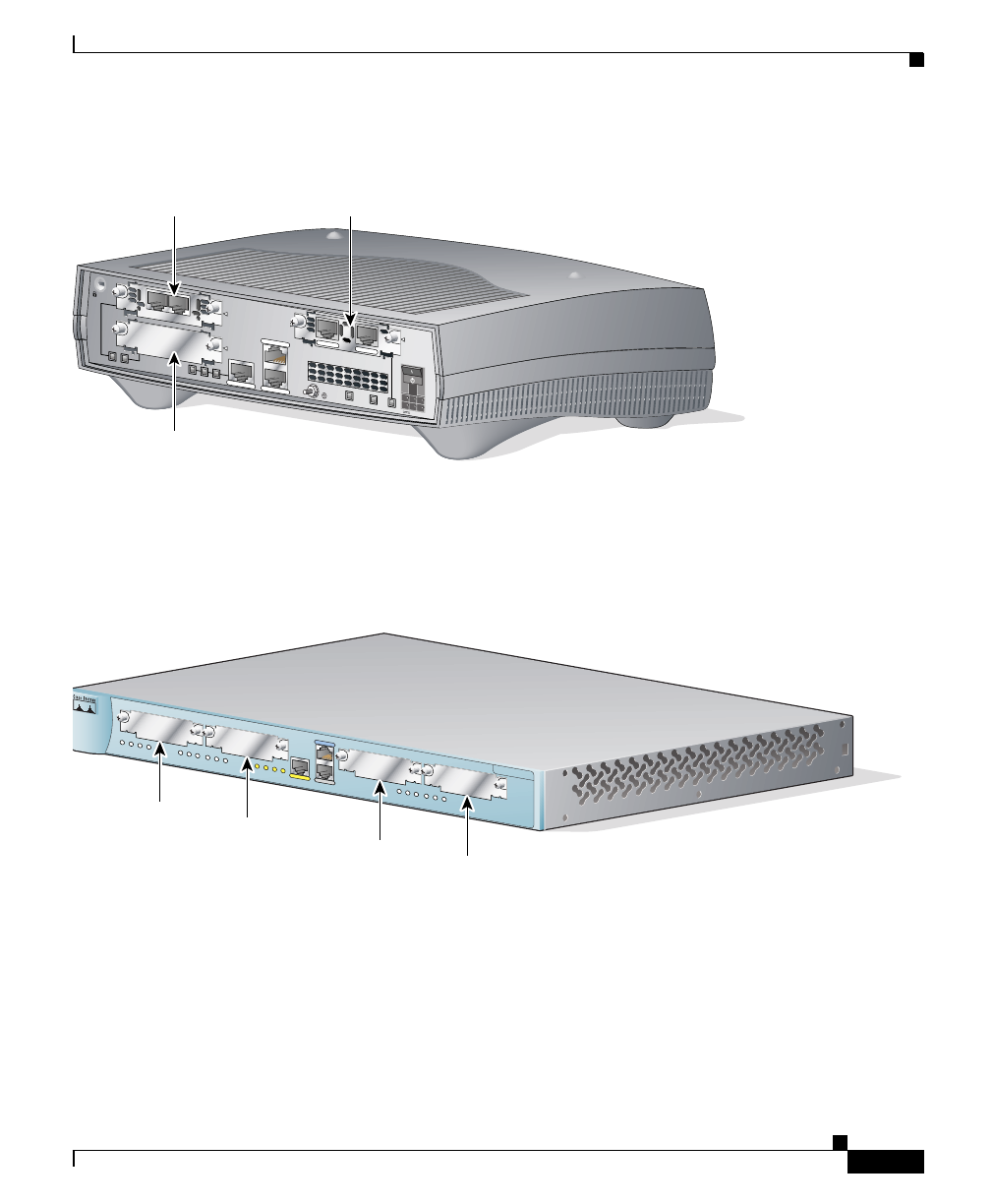

Figure 1-14 Cisco 1751 Router Rear View
Figure 1-15 illustrates a Cisco 1760 router, showing the WAN interface card slots
and the voice interface card slots.
Figure 1-15 Cisco 1760 Router Front View
10/100 ETHERNET
AUX
CONSOLE
Model Cisco 1751
SLOT 2
SLOT 1
SLOT 0
THIS SLOT
ACCEPTS
ONLY VOICE
INTERFACE
CARDS
SEE MANUAL BEFORE INSTALLATION
SLOT 1 OK SLOT 0 OK FDX
100 LINK
PVDM OK
SLOT 2 OK
MOD OK
+5,+12,-12, VDC
ISDN BRI S/T 1
VIC
2B-NT/TE
ISDN BRI S/T 2
B1
B2
OK
SEE
MANUAL
BEFORE
INSTALLATIOIN
Interface card slot 0
Interface card slot 1
Interface card slot 2
(VIC only)
47516
74343
Cisco 1700
Series
10/100 ETHERNET
AUX
CONSOLE
PVDM 0
OK
OKPWR
10
SLOT 0
OK
PVDM 1
OK
MOD
OK
10SLOT 1
OK
LINK100
FDX
ACT COL
10
SLOT 2
OK
10
SLOT 3
OK
Interface
card
slot 0
Interface
card
slot 1
Interface
card
slot 2
(VIC only)
Interface
card
slot 3
(VIC only)
