Chapter 1 Overview of Cisco Interface Cards
Cisco 3700 Series Routers

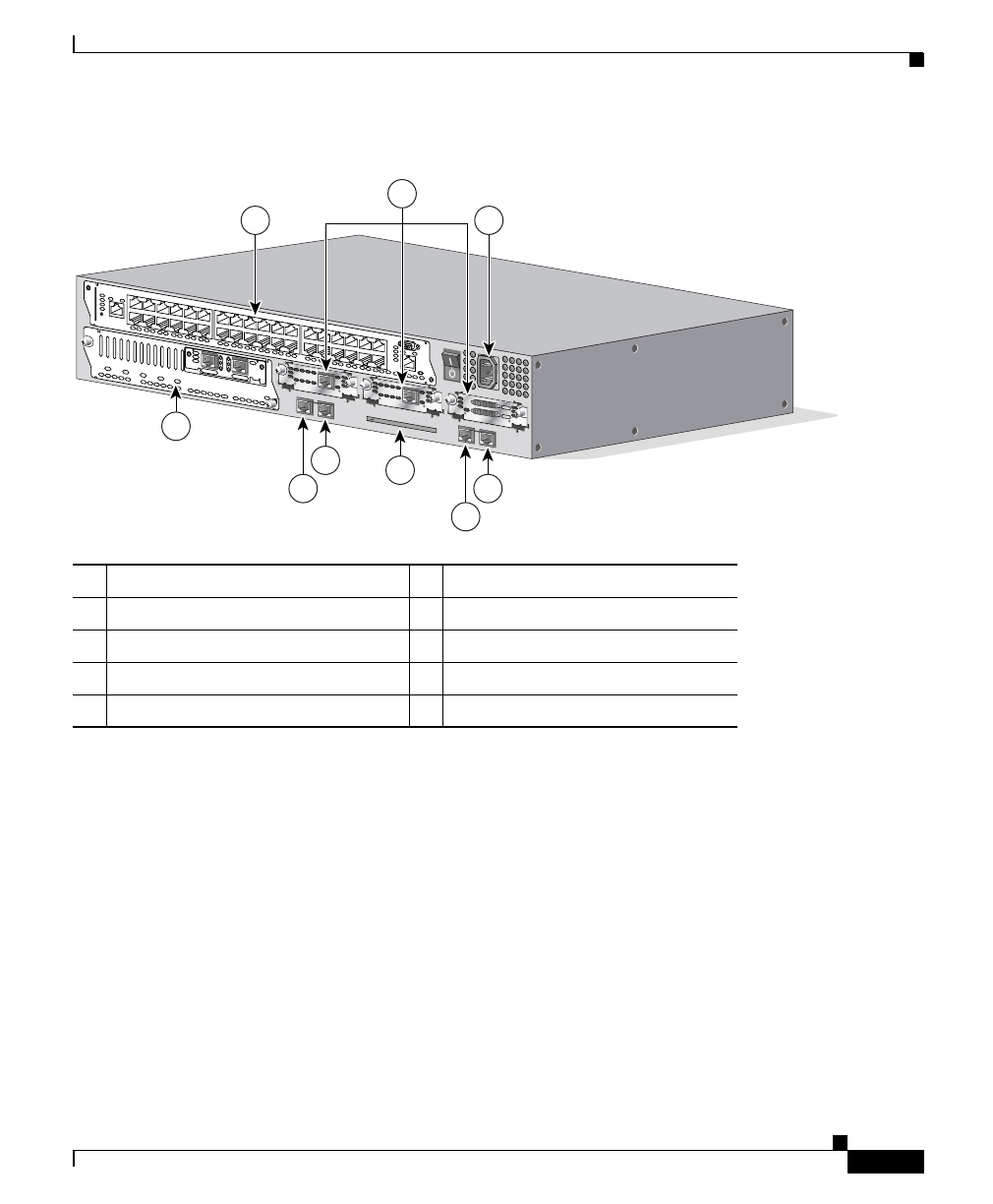

Figure 1-2 Rear Panel of the Cisco 3725 Router
Cisco 3700 Series Interface Numbering
Each network interface on a Cisco 3700 series router is identified by a slot number
and a port number.
Slot Numbering
A Cisco 3725 router includes two slots in which you can install network modules.
The upper slot can accommodate either a single-width or double-width network
module. The slot numbers are as follows:
• 1 for interfaces in the lower network module slot
• 2 for interfaces in the upper network module slot
1 Double-width network module slot 6 Compact Flash slot
2 Interface card slots 7 Fast Ethernet 0/0
3 Power supply 8 Fast Ethernet 0/1
4 Auxiliary port 9 Single-width network module slot
5 Console port
62691
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
1 3
2
4
6
5
7
9
8
