Chapter 1 Overview of Cisco Interface Cards
Cisco 1700 Series Routers
Cisco 1700 Series Routers
Cisco 1700 series routers are small, modular routers that link small to
medium-size remote Ethernet and Fast Ethernet LANs to regional and central
offices over one to four WAN connections. These routers are desktop models,
except for the Cisco 1760 router, which is rack-mounted.
Cisco 1700 series routers include one Fast Ethernet port and two WAN interface
card slots. In addition, the Cisco 1750 and Cisco 1751 routers include one voice
interface card (VIC) slot that can be used only for a voice interface card, and the
Cisco 1760 router includes two VIC-only slots.

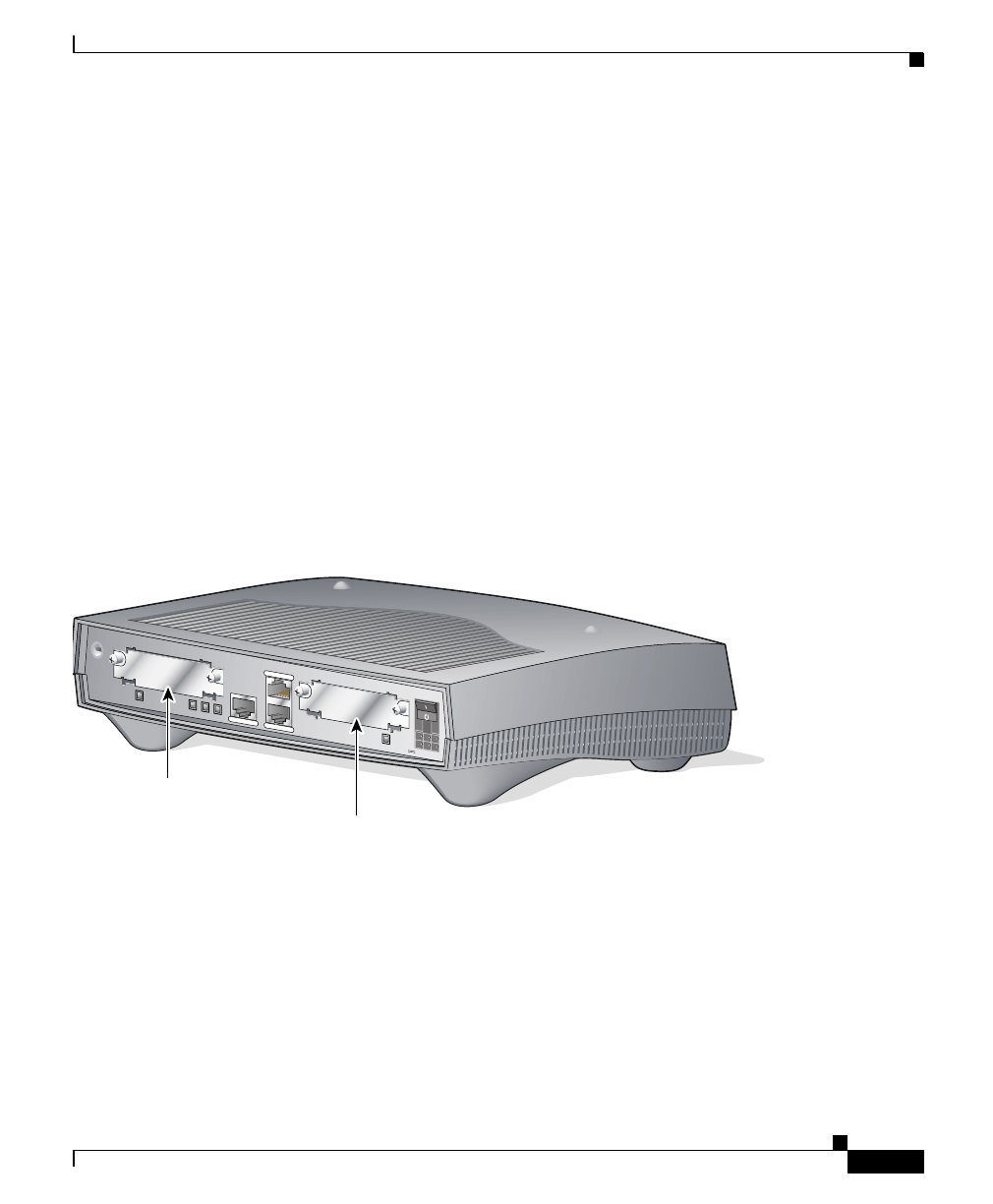

Figure 1-11 illustrates a Cisco 1720 router, showing the WAN interface card slots.
Figure 1-11 Cisco 1720 Router Rear View
6. In network modules NM-1E2W, NM-1EIR-2W, and NM-2E2W.
10/100 ETHERNET
AUX
CONSOLE
Cisco 1720
WIC 0 OK FDX 100 LINK
WIC 1 OK
-5,-12,+12, VDC
Interface card slot WIC1
Interface card slot WIC0
41180
