Cisco XR 12000 and 12000 Series Performance Route Processor-2

Data Sheet

Cisco XR 12000 and 12000 Series Performance

Route Processor-2

The Cisco

XR 12000 and 12000 Series Performance Route Processor-2 (PRP-2) is the

next-generation route processor for all Cisco XR 12000 and 12000 series routers. The

Cisco PRP-2 offers up to 100-percent performance improvement on most system tasks,

up to 4 GB of memory, a Gigabit Ethernet management port, and a hard drive option. The

Cisco PRP-2 delivers the scalability needed for service and network convergence. It also

provides a Building Integrated Timing Supply (BITS) interface, a component of the Cisco

XR 12000 and Cisco 12000 series BITS architecture that will enable network service

synchronization on the platform in the future.

Product Overview

The Cisco PRP-2 (Figure 1) is the next-generation route processor for the Cisco XR 12000 and

12000 series routers, addressing the unique route processing requirements of carrier-grade IP and

Multiprotocol Label Switching (MPLS) packet infrastructures. It is responsible for the following

functions:

●

Executing routing protocol stacks

●

Performing all protocol communications with other routers

●

Building and distributing forwarding information to all line cards

●

Uploading the operating system software system images to all installed line cards upon

powering up

●

Providing out-of-band system console and auxiliary ports and an Ethernet port for router

configuration and maintenance

●

Monitoring and managing the power and temperature of system components such as line

cards, power supplies, and fans

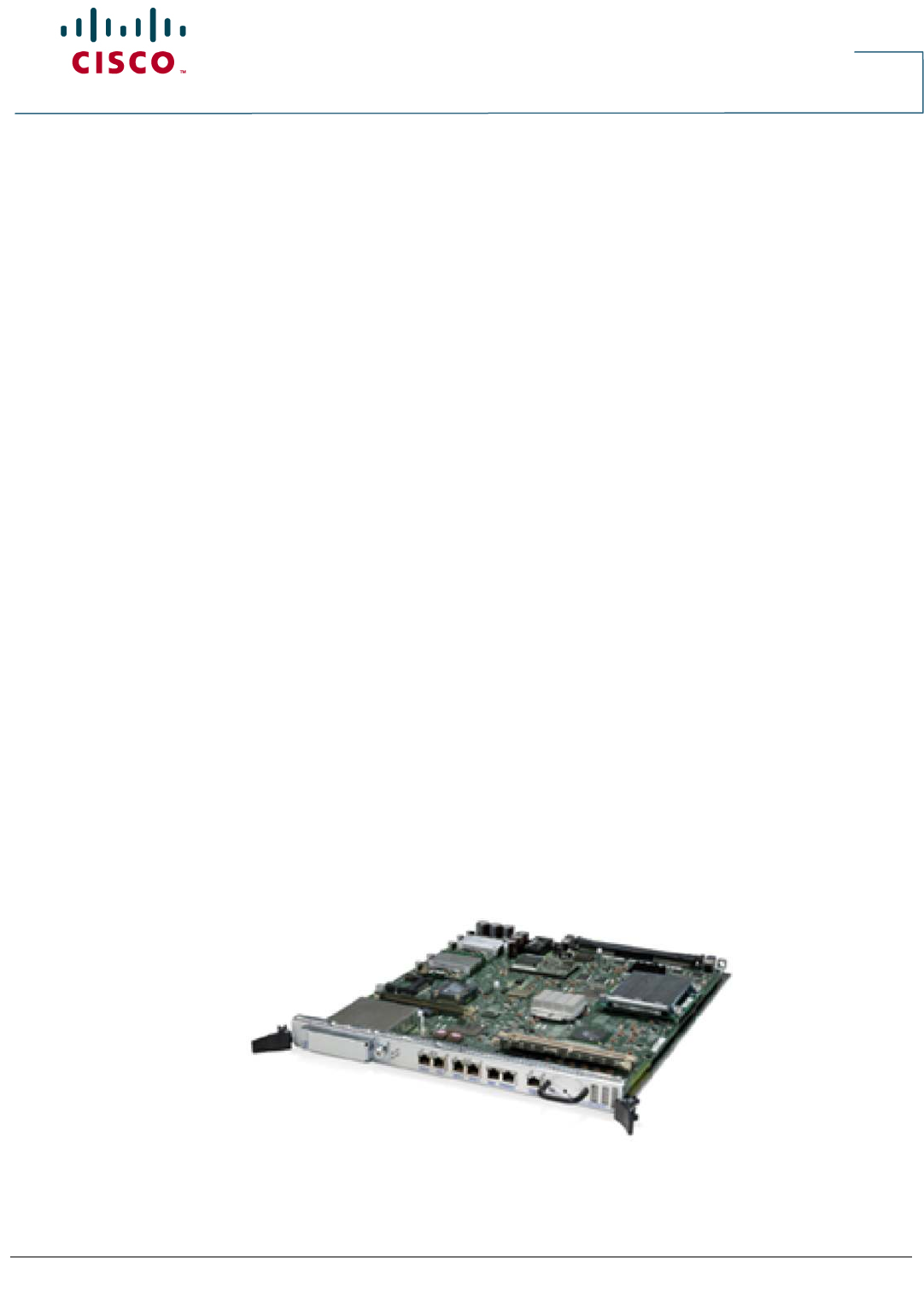

Figure 1. Cisco XR 12000 and 12000 Series PRP-2

Summary of content (5 pages)

PAGE 1
Data Sheet Cisco XR 12000 and 12000 Series Performance Route Processor-2 ® The Cisco XR 12000 and 12000 Series Performance Route Processor-2 (PRP-2) is the next-generation route processor for all Cisco XR 12000 and 12000 series routers. The Cisco PRP-2 offers up to 100-percent performance improvement on most system tasks, up to 4 GB of memory, a Gigabit Ethernet management port, and a hard drive option. The Cisco PRP-2 delivers the scalability needed for service and network convergence.
PAGE 2
Data Sheet The Cisco PRP-2 delivers all these functions with enhanced performance and capabilities. It also delivers the following feature enhancements (depending on the software version running): ● Gigabit Ethernet management port ● Hard-drive support (optional part) ● BITS input ports ● Up to 4 GB compact image Flash memory support (optional part) ● Memory scalability up to 4 GB The Cisco XR 12000 and 12000 series routers are a portfolio of intelligent routing solutions that scale from 2.
PAGE 3
Data Sheet Table 3. Physical and Environmental Specifications Description Specification Temperature ● Operating: 32 to 104°F (0 to 40°C) ● Storage: –4 to 149°F (–20 to 65°C) Humidity ● Operating (noncondensing): 10–90% ● Storage (noncondensing): 5–95% Dimensions (H x W x D) 14.5 x 1.25 x 18.5 in. (36.8 x 3.2 x 45.7 cm) (occupies single thin slot) Weight 6.0 lb (2.7 kg) Table 4. Regulatory Approvals Description Specification ● UL 60950 ● CSA 22.2-No.
PAGE 4
Data Sheet Product Description Part Number Cisco 12000 Series 4-GB SDRAM ● MEM-PRP2-4G ● XR-MEM-PRP2-4G Cisco 12000 Series 64-MB ATA PC Card (flash disk) ● MEM-12KRP-FD64M ● MEM-12KRP-FD64M= Cisco 12000 Series 128-MB ATA PC Card (flash disk) (and spare) ● MEM-12KRP-FD128M ● MEM-12KRP-FD128M= Cisco 12000 Series 256-MB ATA PC Card (flash disk) (and spare) ● MEM-12KRP-FD256M ● MEM-12KRP-FD256M= Cisco 12000 series 512-MB ATA PC Card (flash disk) (and spare) ● MEM-12KRP-FD512M ● MEM-12KRP-FD512M= Ci
