Replacing the Power Supply
78-4002497-01 Rev F 39

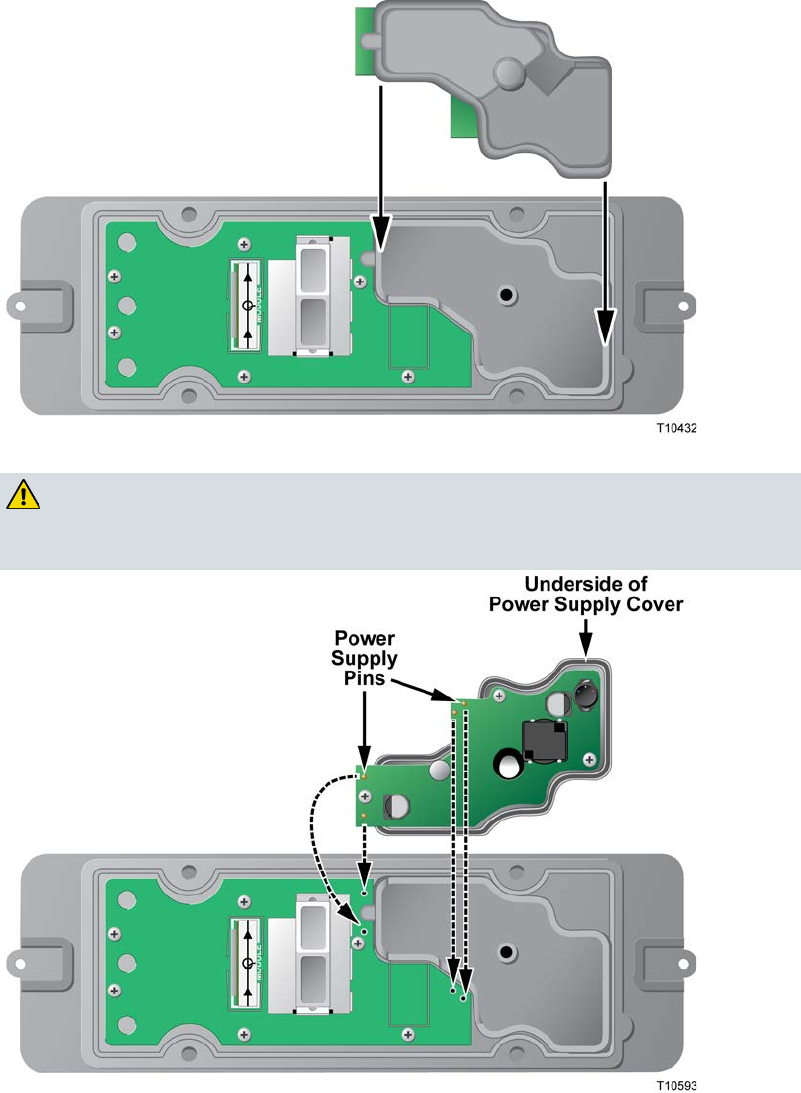

3 Align the replacement power supply and cover over the slot, as shown below.
4 Insert the four pins into the designated holes.
CAUTION:
Use caution when inserting the four pins into the pin holes. If inserted
improperly, damage to the power supply can occur.
5 Tighten the power supply bolt from 30 in-lb to 40 in-lb (3.4 N-m to 4.5 N-m).
