Chapter 2 Installing the Tap
38 78-4002497-01 Rev F
Replacing the Power Supply
This section describes the procedure for replacing a power supply in the
Addressable Multimedia Stretch Tap. The power supply is located on the faceplate.
To Replace the Power Supply
WARNING:
Protect yourself from electric shock. The power supply can deliver an
electrical shock. The residual charge must be discharged.
1 Using a 3/8-in. wrench, loosen the power supply bolt on top of the power supply
cover.
2 Pull straight up on the cover and remove.

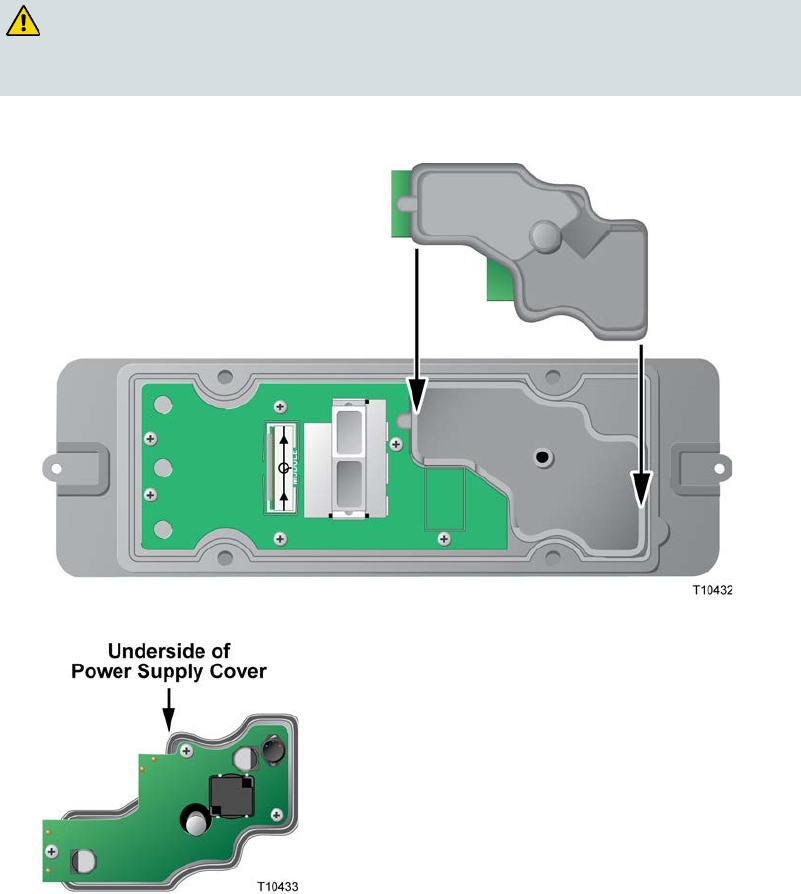

Note: The power supply is located on the underside of the cover, as shown
above.
