Chapter 2 Installing the Tap
34 78-4002497-01 Rev F

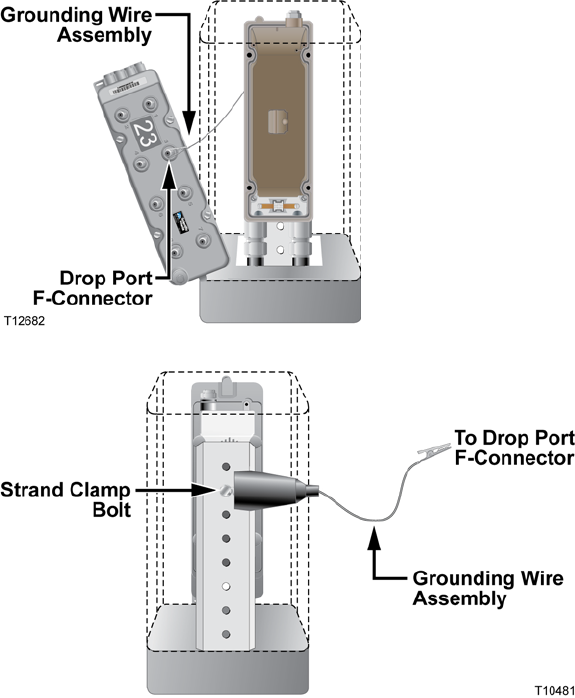

Front View:
Back View:
Proceed to step 4.
4 Inspect the housing gasket and all mating surfaces. Wipe off any dirt, moisture,
or debris.
5 Align the faceplate to line up the edges of the housing.
6 Place the faceplate on the tap housing. Push firmly on the faceplate to seat it in
the housing.
