Chapter 2 Installing the Tap
26 78-4002497-01 Rev F

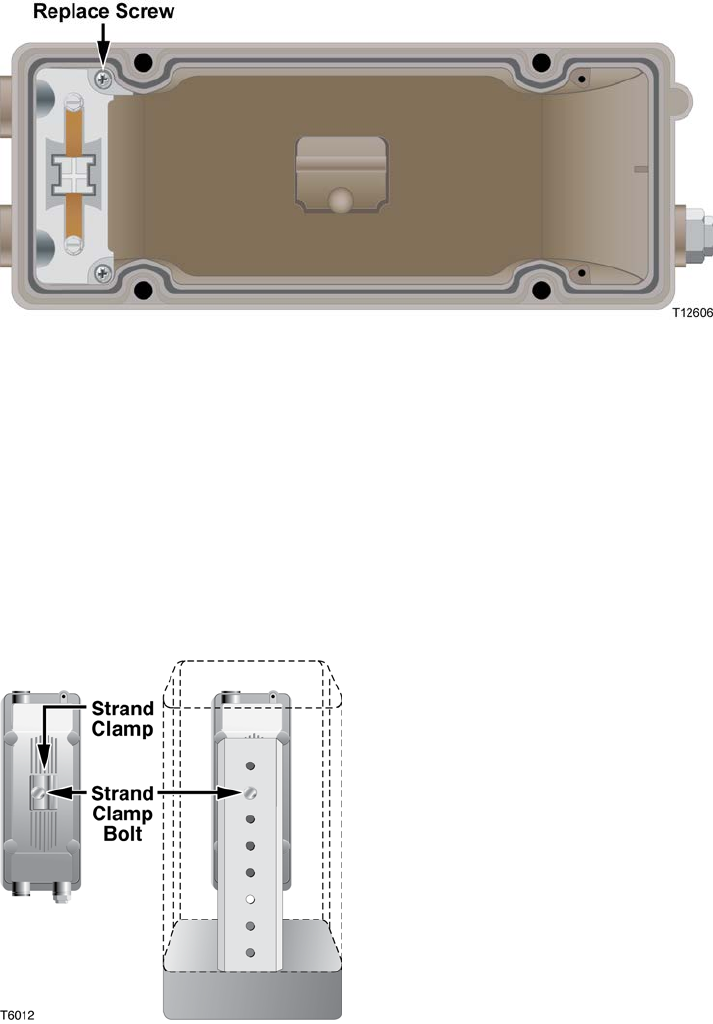

5 Using a #2 blunt-nose Phillips-head screwdriver, replace the screw securing the
seizure block to the tap housing as shown in the diagram below. Tighten the
screw to 10 in-lb (1.13 N-m).
6 Proceed to To Install the Stretch Tap in a Pedestal (on page 26).
To Install the Stretch Tap in a Pedestal
1 Complete the procedure in To Remove the Pass-Through Cable (on page 24)
before proceeding with this procedure.
2 Begin this procedure with the faceplate removed. Refer to Removing the
Faceplate (on page 19).
3 Using a 3/8-in. wrench, remove the strand clamp bolt from the housing.
4 Mount the housing to the pedestal mounting bracket using the strand clamp bolt.
Use the strand clamp as a spacer, if necessary.
5 Using a 3/8-in. wrench, tighten the strand clamp bolt from 30 in-lb to 40 in-lb
(3.4 N-m to 4.5 N-m).
