Description

The GainMaker

Broadband Amplifier Platform includes a

variety of RF amplifiers that address the divergent needs of

today’s broadband networks. All GainMaker amplifiers

provide superior 2-way performance and reliability combined

with a user-friendly layout. All share common plug-in

accessories and perform to 1 GHz in the forward path. The

System Amplifiers in this family provide multiple forward RF

output ports while the Line Extenders provide a single forward

RF output port.

GainMaker System Amplifiers now utilize GaAsFET

technology in the interstage and output gain stages for

improved distortion performance.

The GainMaker System Amplifier modules have increased gain and are mechanically compatible with previous

System Amplifier II, II+, and III housing bases, often enabling upgrade to higher bandwidth with no re-spacing or

re-splicing. The DC power supply is modular and located in an updated housing lid for easy access. All

GainMaker System Amplifier modules are factory configured with reverse amplifier, diplex filters, thermal

compensation circuit, forward interstage pads, and equalizer to ensure optimal performance. Optional single-pilot

Automatic Gain Control (AGC) configurations are also available.

The GainMaker Low Gain Dual System Amplifier is ideally suited for providing high (bridger) level RF to the

feeder network. It provides two forward RF outputs (Main and Auxiliary) with the option to create a third RF

output via the use of an optional plug-in Auxiliary path signal director.

Features

• Common RF test points for forward output and reverse injection simplify reverse balancing

• Increased forward gain

• High-performance GaAsFET gain stage technology

• Fixed-value, plug-in accessories are common to all GainMaker products

• 60 and 90 volt AC powering capability

• 15 ampere current capacity (steady state) and 25 ampere surge survivability

• Optional 3-state reverse switch (on/off/-6 dB) allows each reverse input to be isolated for noise and ingress

troubleshooting (status monitoring required)

• AGC has Thermal backup, which eliminates disruptive RF output variation in the event of pilot loss

• Improved hum modulation

• Plug-in, self-contained diplex filters

• Modular high-efficiency power supply allows simplified maintenance

• Reverse input pad and RF test point for each reverse input port allow optimum reverse path design and

alignment

• Directional Coupler RF test points provide best accuracy

• Surge resistant circuitry ensures gain stage protection without fuses or other nuisance failure causing devices

RF Electronics

GainMaker

Low Gain Dual System Amplifier

1 GHz with 65/86 MHz Split

Summary of content (5 pages)

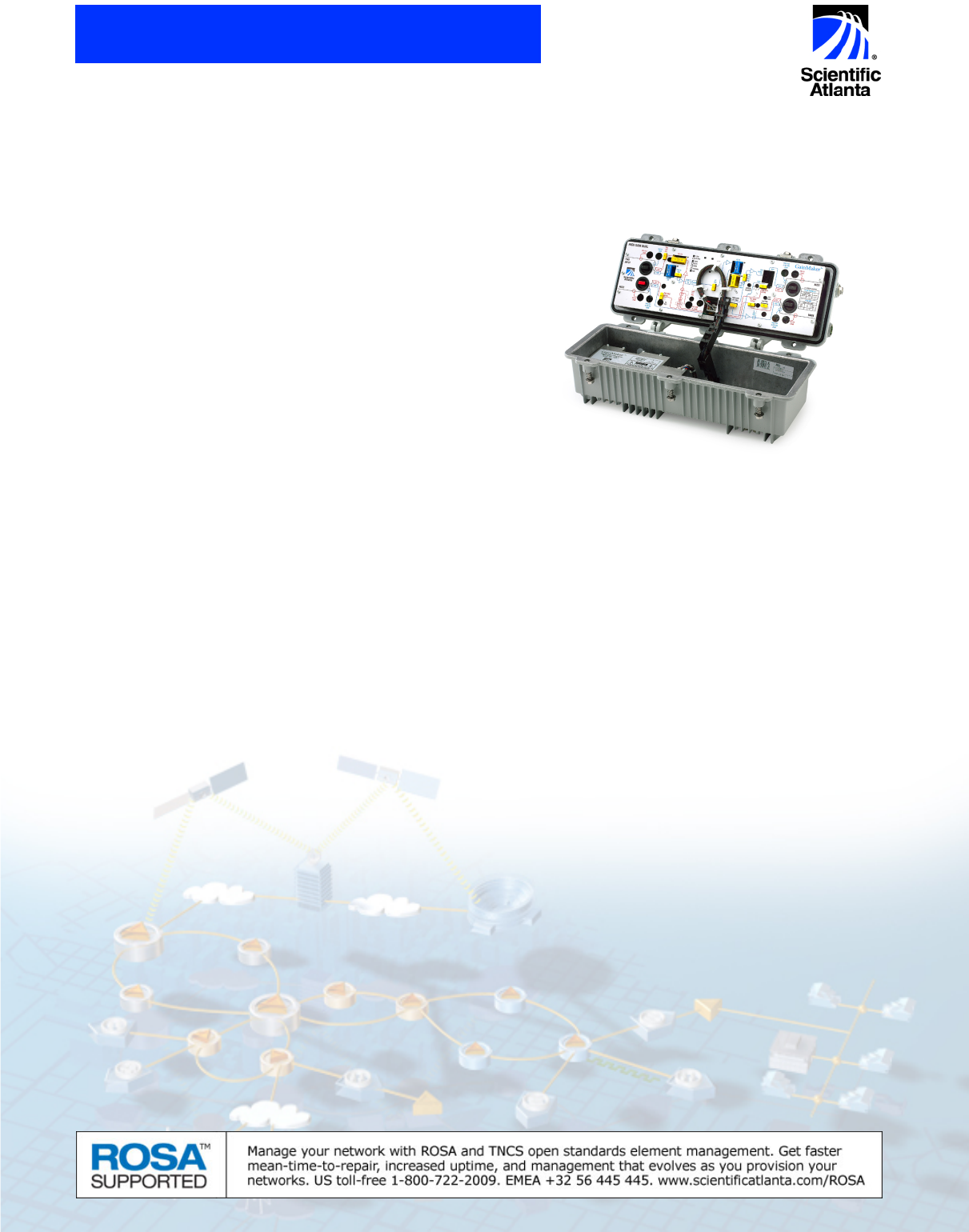

PAGE 1
RF Electronics GainMaker® Low Gain Dual System Amplifier 1 GHz with 65/86 MHz Split Description The GainMaker® Broadband Amplifier Platform includes a variety of RF amplifiers that address the divergent needs of today’s broadband networks. All GainMaker amplifiers provide superior 2-way performance and reliability combined with a user-friendly layout. All share common plug-in accessories and perform to 1 GHz in the forward path.
PAGE 2
GainMaker® - Low Gain Dual - 5-65/86-1002 MHz Block Diagram GainMaker LGD Aux. 1 Forward Output and Reverse Injection -20 dB T.P. Forward Input -20 dB T.P. FWD Fwd Input Rev. Output EQ HPF Trim Pad Bode Pad ISEQ AC BYPASS Sys. Trim Aux Pad Signal Dir. FWD AC BYPASS REV REV AGC Reverse Output -20 dB T.P. Fuse Shunt Rev EQ LPF Reverse Amp Input -20 dB T.P. Aux. 2 Rev Pad Status Monitoring Pad Fuse Shunt Aux.1 Aux. 1 Rev. Input Fuse -20 dB T.P.
PAGE 3
GainMaker® - Low Gain Dual - 5-65/86-1002 MHz Specifications General Station Performance Pass Band Amplifier Type Frequency Response Auto Slope and Gain Range Return Loss Max AC Through Current (continuous) Max AC Through Current (surge) Hum Modulation @ 12 A (over specified frequency range) Hum Modulation @ 15 A (over specified frequency range) Test Points (± 0.
PAGE 4
GainMaker® - Low Gain Dual - 5-65/86-1002 MHz Specifications, continued Station Delay Characteristics Forward (Chrominance to Luminance Delay) Frequency (MHz) Delay (ns) 112.25 - 116.68 4 119.25 - 123.68 3 126.25 - 130.68 3 Reverse (Group Delay in 1.5 MHz bandwidth) Frequency (MHz) Delay (ns) 5.0 - 6.5 60 6.5 - 8.0 22 8.0 - 9.5 12 60.5 - 62.0 10 62.0 - 63.5 13 63.5 - 65.0 19 Station Powering Data GainMaker I DC AC Voltage Low Gain Dual (Amps) 90 85 80 75 70 65 60 55 50 45 40 35 Thermal 1.
PAGE 5
GainMaker® - Low Gain Dual - 5-65/86-1002 MHz Ordering Information The GainMaker Ordering Matrix provides ordering information for configured amplifier modules or stations. This page contains ordering information for required and optional accessories that are not included as part of a configured amplifier module or station. Consult your account representative or customer service representative for ordering assistance.
