Operation Manual

Front Panel Description

The front panel of your cable modem provides status lights that indicate how well and at what state your cable

modem is operating. After the cable modem is successfully registered on the network, the POWER and CABLE

status indicators illuminate continuously to show that the cable modem is active and fully operational. See Front

Panel Status Indicator Functions, later in this guide, for more information on front panel status indicator

functions.

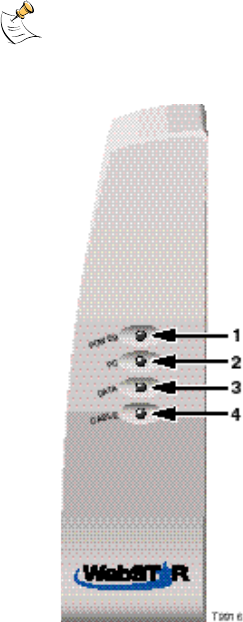

The following illustration and descriptions of the status indicators apply to the Model DPX100/120 Cable Modems

along with the Model DPX2100 and Model EPX2100 Cable Modems.

Model DPX100/120 Cable Modems support DOCSIS 1.0 and 1.1 and Euro-DOCSIS 1.0 and 1.1, while

Model DPX2100 and Model EPX2100 Cable Modems support DOCSIS 2.0.

1. POWER—Illuminates solid green to indicate that power is

being applied to the cable modem

2. PC—Illuminates solid green to indicate that an Ethernet/USB

carrier is present and blinks to indicate that Ethernet/USB

data is being transferred between the PC and the cable

modem

3. DATA—Blinks to indicate that data is being transferred

between the modem and the cable network

4. CABLE—Illuminates solid green when the modem is

registered on the network and fully operational. This indicator

blinks to indicate one of the following conditions:

 The cable modem is booting up and not ready for data

 The cable modem is scanning the network and attempting

to register

 The cable modem has lost registration on the network and

will continue blinking until it registers again

 Blinks very slowly (once every 5 seconds) to indicate that

Cable Modem Access Protection is enabled

 Blinks continuously to indicate that a Message is waiting
