Cisco CSS UCS Platform Series User Guide, CPS-UCS-1RU-K9 / CPS-UCS-2RU-K9
Chapter 4 Replacing Hardware Components
Installing or Replacing Server Components

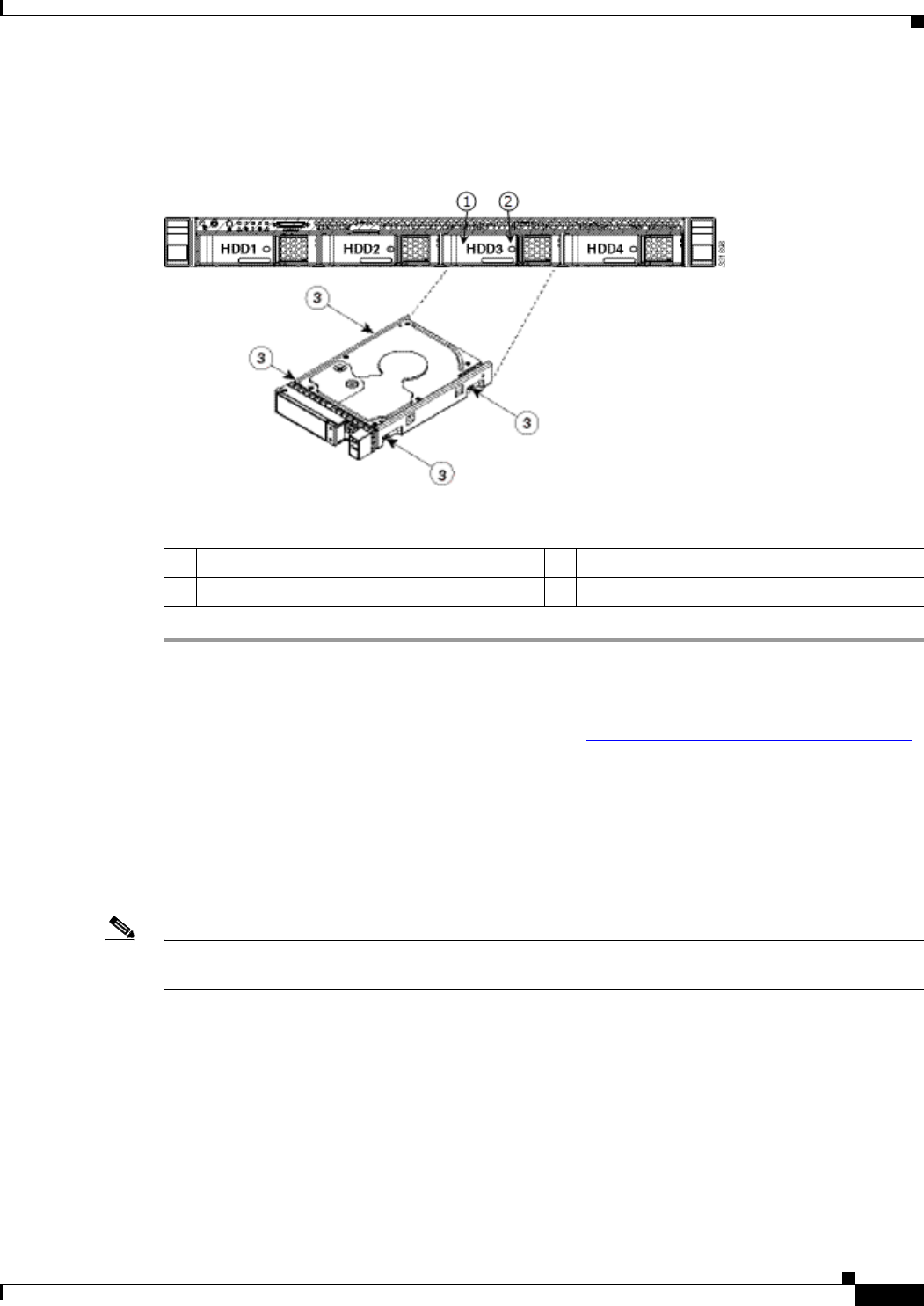

Figure 4-6 Replacing Hard Drives
1 Ejector lever 3 Drive tray securing screws (4)
2 Release button –
Related Information
For more information about hard drive replacement, see “Replacing Hard Drives or Solid State Drives”
in the Cisco UCS C220 Server Installation and Service Guide. This document also includes instructions
to replace a drive backplane.
Cisco Connected Safety and Security UCS C240: Replacing a Hard Drive
The 2RU Cisco Connected Safety and Security UCS series server (CPS-UCS-2RU-K9) is available in
the large form factor (LFF) only, which supports up to 12 (3.5-inch) hard drives.
Note The small form-factor (SFF) versions of the Cisco UCS C240 are not supported for Cisco Physical
Security applications.
See the “Supported Hard Drives” section on page 2-5 for more information.
This section includes the following information:
• Drive Population Guidelines, page 4-12
• Drive Replacement Procedure, page 4-12
• Related Information, page 4-13
