4-6
Cisco CSS UCS Platform Series User Guide, CPS-UCS-1RU-K9 / CPS-UCS-2RU-K9
Chapter 4 Replacing Hardware Components
Preparing for Server Component Installation
Replaceable Component Locations
• Cisco Connected Safety and Security UCS C220 Replaceable Components, page 4-6
• Cisco Connected Safety and Security UCS C240 Replaceable Components, page 4-7
Cisco Connected Safety and Security UCS C220 Replaceable Components
This section shows the locations of the components in the Cisco Connected Safety and Security UCS
C220 server. The view in Figure 4-3 is from the top down with the top cover and air baffles removed.

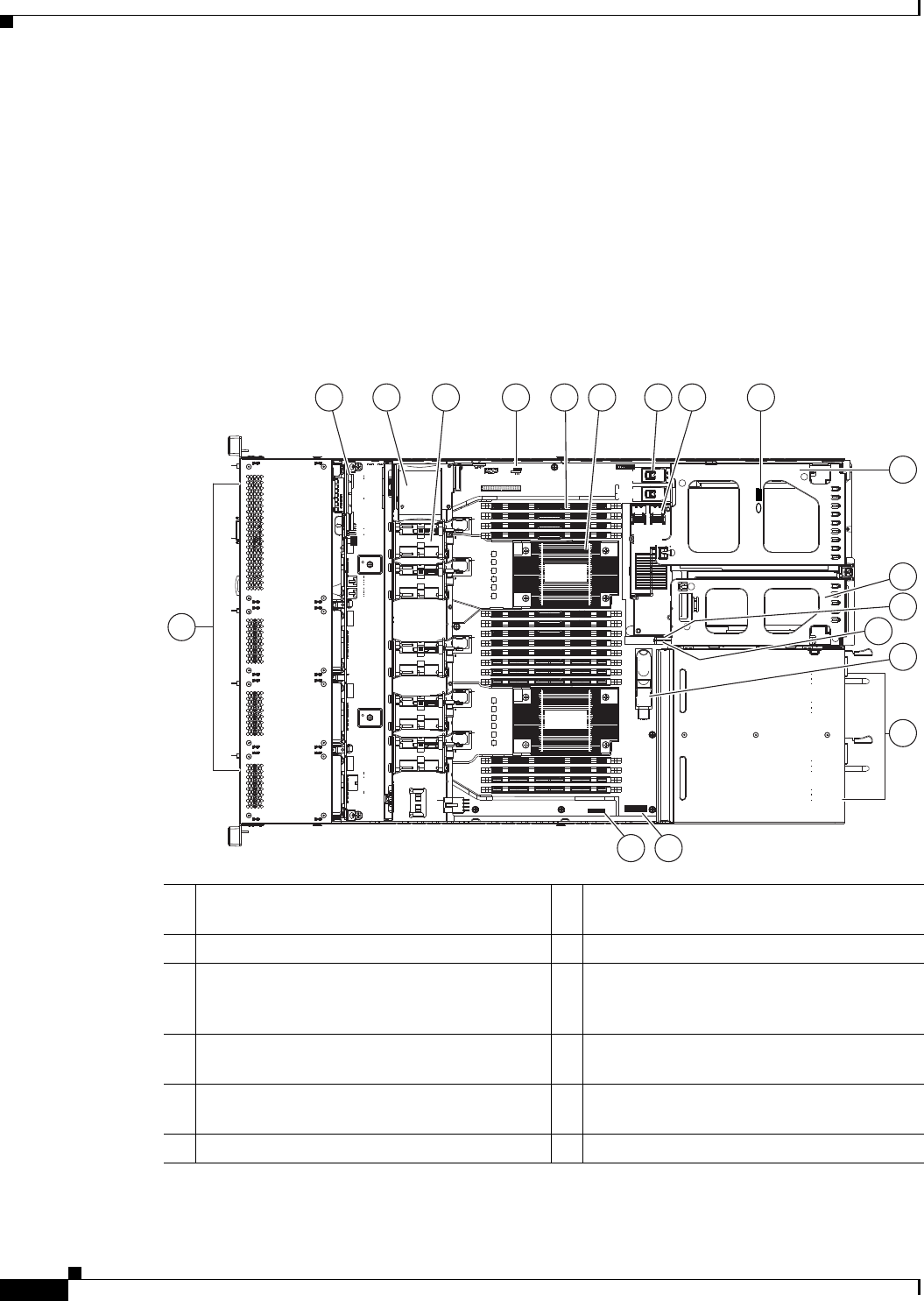

Figure 4-3 Replaceable Component Locations: Cisco Connected Safety and Security UCS C220
FAN1
FAN1
FAN1
FAN2
FAN2
FAN2
FAN3
FAN3
FAN3
FAN4FAN4
FAN4
FAN4
FAN5
FAN5
FAN5
PSU2
PCIe1
PCIe2
PSU1
CPU1
CPU2
SAS1
SAS2
SAS1
SAS2
1718
15
11
10
985
76
2 3
4
1
12
13
14
16
1 Drives (hot-swappable,
accessed through front panel)
10 Trusted platform module socket on
motherboard
2 Drive backplane 11 Standard-height PCIe riser (PCIe slot 1)
3 Mounting location on air baffle for LSI battery
backup
unit or SuperCap Power Module (air
baffle not shown)
12 Half-height PCIe riser (PCIe slot 2)
4 Cooling fan modules (five) 13 Cisco Flexible Flash card slot SD2 socket on
PCIe ri
ser 2 (not supported)
5 SCU upgrade ROM header
(PBG DYNAMIC SKU)
14 Cisco Flexible Flash card slot SD1 socket on
PCIe ri
ser 2 (not supported)
6 DIMM slots on motherboard (sixteen) 15 Internal USB 2.0 port
