1-21
Cisco CSS UCS Platform Series User Guide, CPS-UCS-1RU-K9 / CPS-UCS-2RU-K9
Chapter 1 Overview
Supported PSBU Hardware Configurations
• CPU1—One 8GB DIMM is installed in slot A1 (Figure 1-12).
• CPU2—One 8GB DIMM is installed in slot E1.
Note DIMMs are not field replacable or upgradable in the Cisco Connected Safety and Security UCS series
servers.

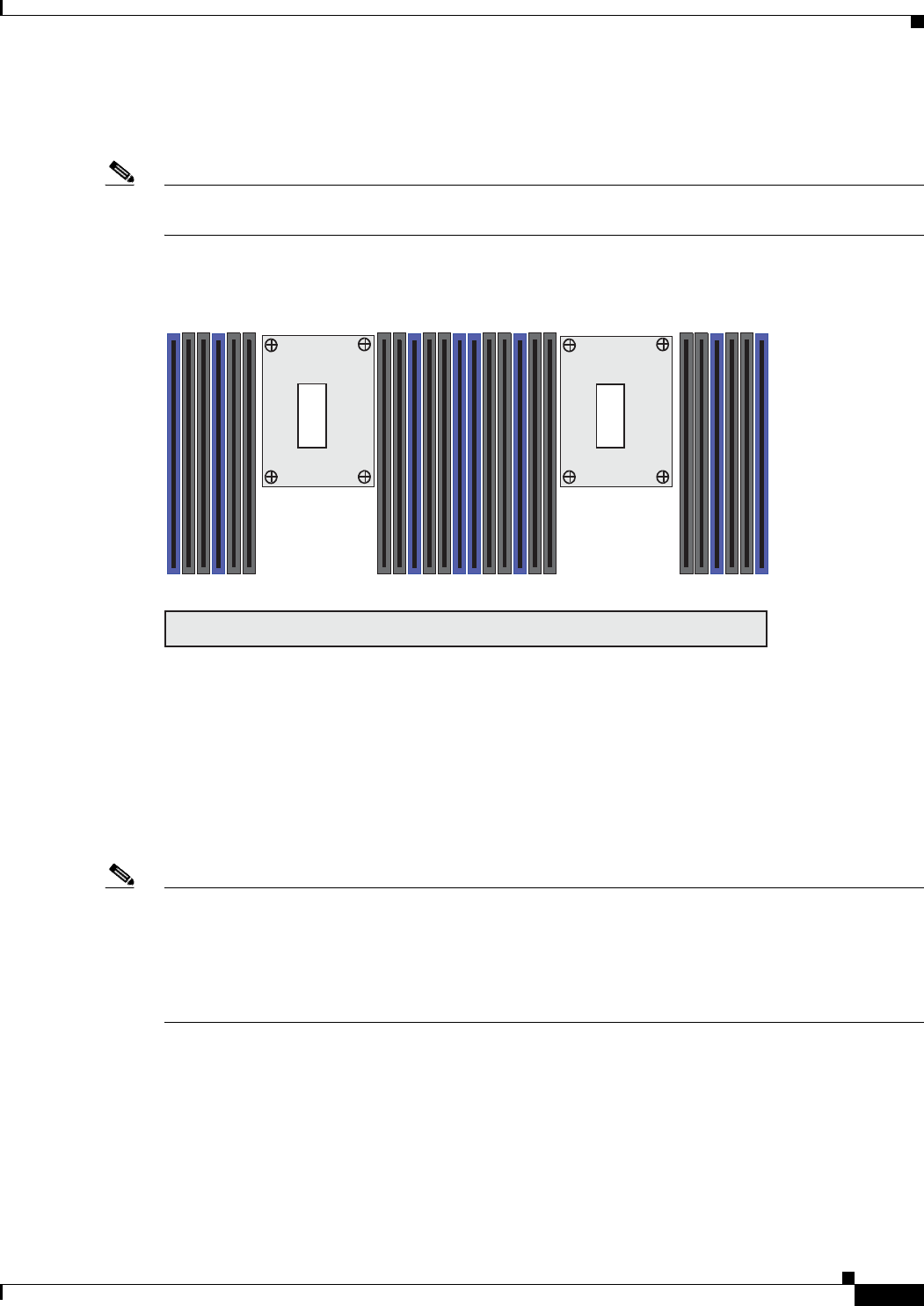

Figure 1-12 CPUs and DIMM Slots on Motherboard: Cisco Connected Safety and Security UCS
C240
Front of Server
CPU 1
CPU 2
F3
F2
F1
E3
E2
E1
G1
G2
G3
H1
H2
H3
B3
B2
B1
A3
A2
A1
C1
C2
C3
D1
D2
D3
331840
Supported NIC (GigE) Ports (Cisco Video Surveillance)
The Cisco Connected Safety and Security UCS series servers support the following:
• One 1-Gb Ethernet dedicated management port
• Two 1-Gb Base-T Ethernet ports
See the “System Overview” section on page 1-2 for port locations.
Note • The LAN Ethernet posts are referred to as “Eth 0” and “Eth1” in the Cisco Connected Safety and
Security applications, such as Cisco Video Surveillance.
• The Cisco Connected Safety and Security UCS series servers do NOT support the NIC redundancy
modes. Only the None option is supported: the Ethernet ports operate independently and do not fail
over if there is a problem.
