Chapter 1 Overview
Supported PSBU Hardware Configurations
Supported PSBU Hardware Configurations
• DIMM Memory Configuration, page 1-20
• Supported NIC (GigE) Ports (Cisco Video Surveillance), page 1-21
DIMM Memory Configuration
• Cisco Connected Safety and Security UCS C220 Memory, page 1-20
• Cisco Connected Safety and Security UCS C240 Memory, page 1-20
Cisco Connected Safety and Security UCS C220 Memory
The Cisco Connected Safety and Security UCS C220 (1RU) server is pre-configured with 8GB of system
memory. A single 8GB DIMM is installed in slot A1. (Figure 1-11).
Note DIMMs are not field replacable or upgradable in the Cisco Connected Safety and Security UCS series
servers.

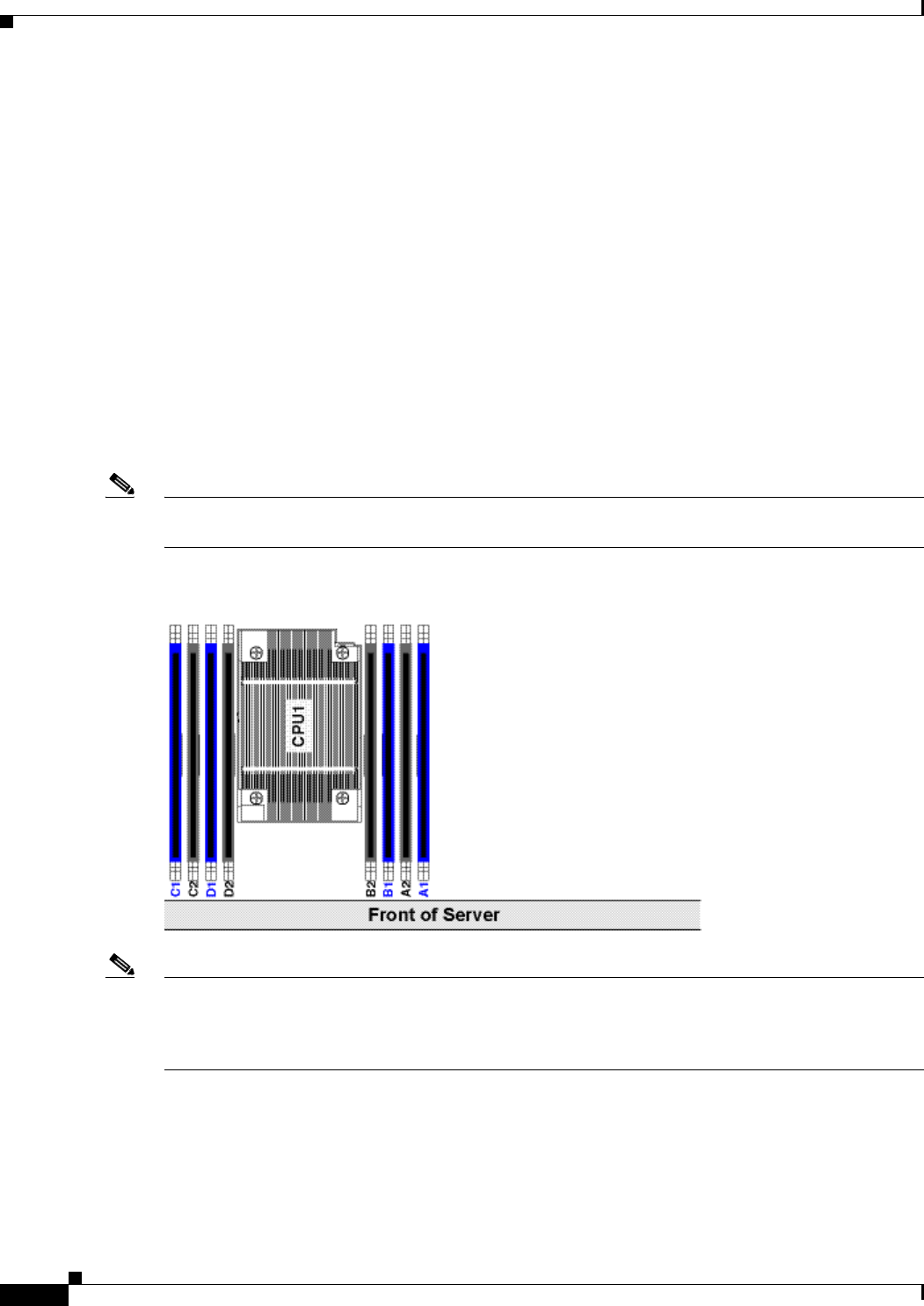

Figure 1-11 DIMM Slot Numbering: Cisco Connected Safety and Security UCS C220
Note • Only CPU 1 (and the associated channels A, B, C, and D) are supported in this release.
• CPU2 is not supported. Any DIMM modules installed in the CPU2-supported channels E, F, G, and
H will be ignored and unused by the server.
Cisco Connected Safety and Security UCS C240 Memory
The Cisco Connected Safety and Security UCS C240 (2RU) server is pre-configured with 16GB of
system memory. 8GB DIMM is installed in the slots associated with each CPU (CPU1 and CPU2).
