Chapter 1 Overview
Status LEDs and Buttons
Internal Diagnostic LEDs
The server is equipped with a SuperCap voltage source that can activate internal component fault LEDs
up to one half-hour after AC power is removed. The server has internal fault LEDs for fan modules and
DIMMs.
To use these LEDs to identify a faile
d component, press the front or rear Identification button (see
Figure 1-8 or Figure 1-9) with AC power removed. An LED lights amber to indicate a failed component.
See Figure 1-10 for the locations of these internal LEDs.

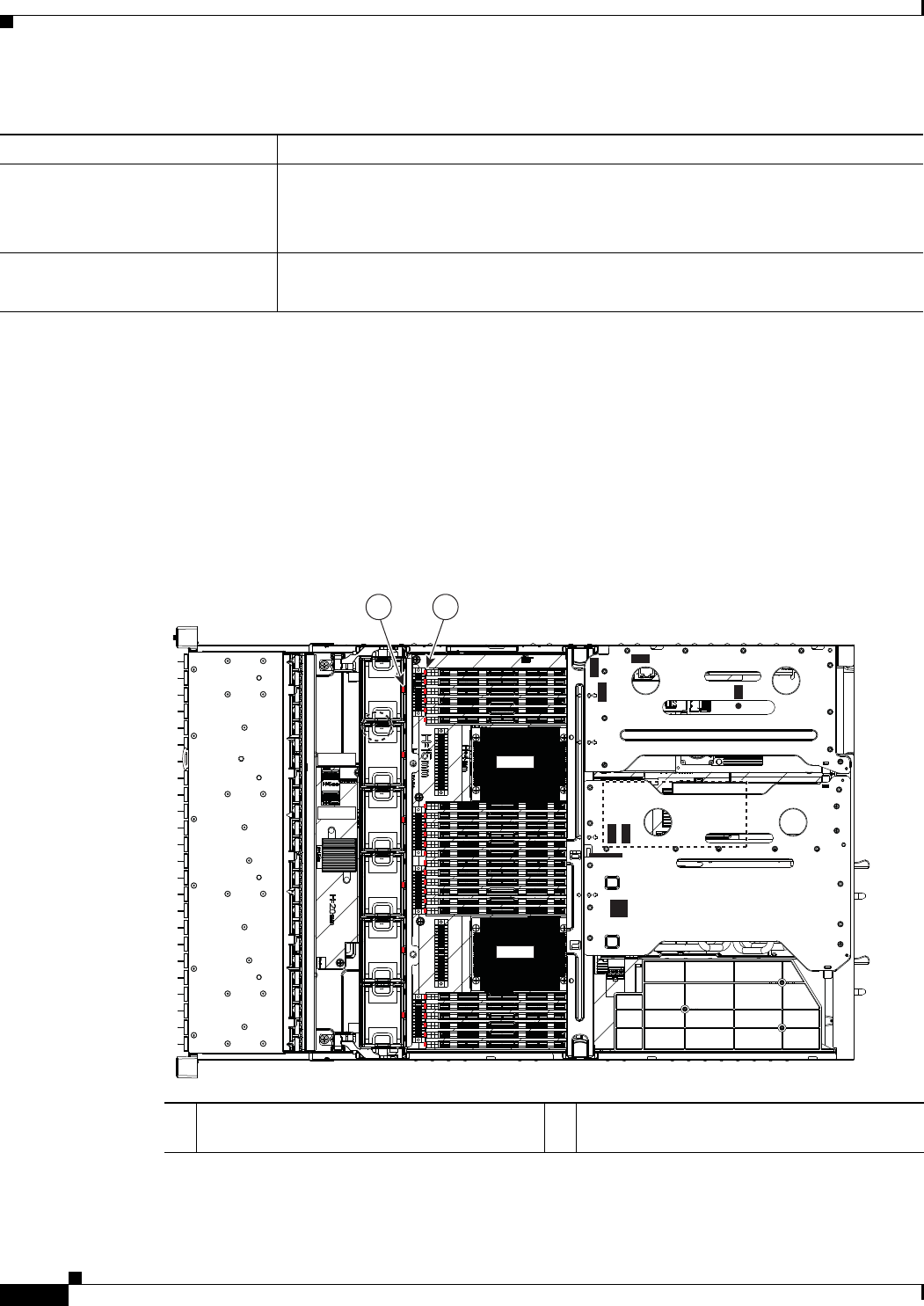

Figure 1-10 Internal Diagnostic LED Locations: Cisco Connected Safety and Security UCS C240
SAS2
SAS1
FAN1
FAN2
FAN3
FAN4
FAN5
FAN6
CPU1
CPU2
SAS1
SAS2
Riser 1
Riser 2
SAS2 SAS1
1 2
331830
1 Fan module fault LEDs (one on each fan
module)
2 DIMM fault LEDs (one next to each DIMM
socket on the motherboard)
1-Gb Ethernet link status
• Off—No link is present.
• Green—Link is active.
• Green, blinking—Traffic is present on the active link.
Identification
• Off—The Identification LED is not in use.
• Blue—The Identification LED is activated.
Table 1-8 Rear Panel LEDs, Definitions of States: Cisco Connected Safety and Security UCS C240 (continued)
LED Name State
