Chapter 1 Overview
Status LEDs and Buttons
Internal Diagnostic LEDs
The server has internal fault LEDs for fan modules and DIMMs. An LED lights amber to indicate a failed
component.
Note Power must be connected to the server for these LEDs to be operate.
See Figure 1-7 for the locations of these internal LEDs.

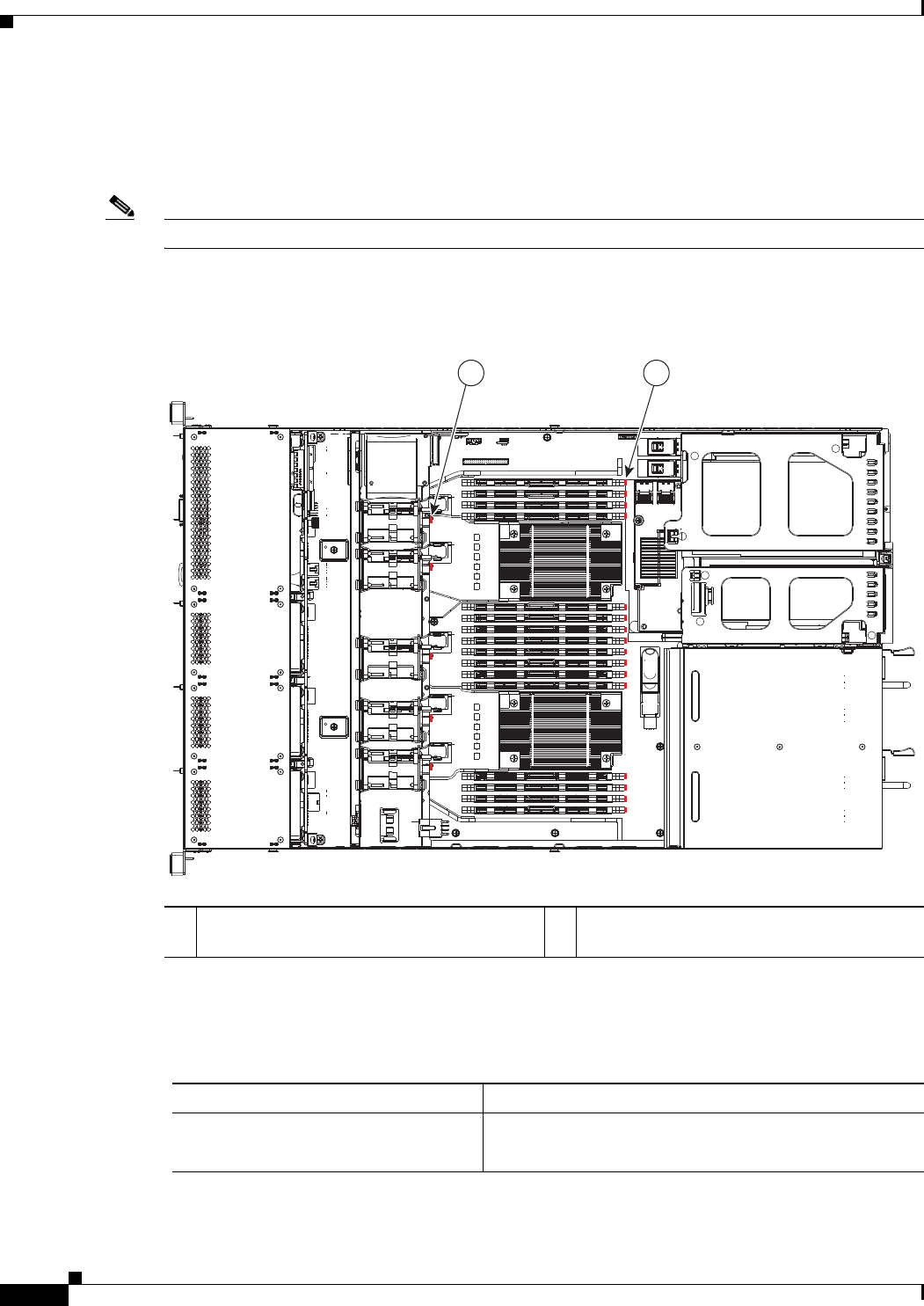

Figure 1-7 Internal Diagnostic LED Locations: Cisco Connected Safety and Security UCS C220
FAN4
1 2
331693
1 Fan module fault LEDs (one next to each fan
connector on the motherboard)
2 DIMM fault LEDs (one next to each DIMM
socket on the motherboard)
Table 1-6 describes the LED states.
Ta b l e 1-6 Internal Diagnostic LEDs, Definition of States: Cisco Connected Safety and Security
UCS C220
LED Name State
Internal diagnostic LEDs (all)
• Off—Component is functioning normally.
• Amber—Component has failed.
