Cisco CSS UCS Platform Series User Guide, CPS-UCS-1RU-K9 / CPS-UCS-2RU-K9
Chapter 1 Overview
Status LEDs and Buttons
Status LEDs and Buttons
This section describes the location and meaning of LEDs and buttons and includes the following topics:
• Cisco Connected Safety and Security UCS C220 LEDs and Buttons, page 1-10
• Cisco Connected Safety and Security UCS C240 LEDs and Buttons, page 1-15
Cisco Connected Safety and Security UCS C220 LEDs and Buttons
This section describes the location and meaning of LEDs and buttons and includes the following topics:
• Front Panel LEDs, page 1-10
• Rear Panel LEDs and Buttons, page 1-12
• Internal Diagnostic LEDs, page 1-14
Front Panel LEDs

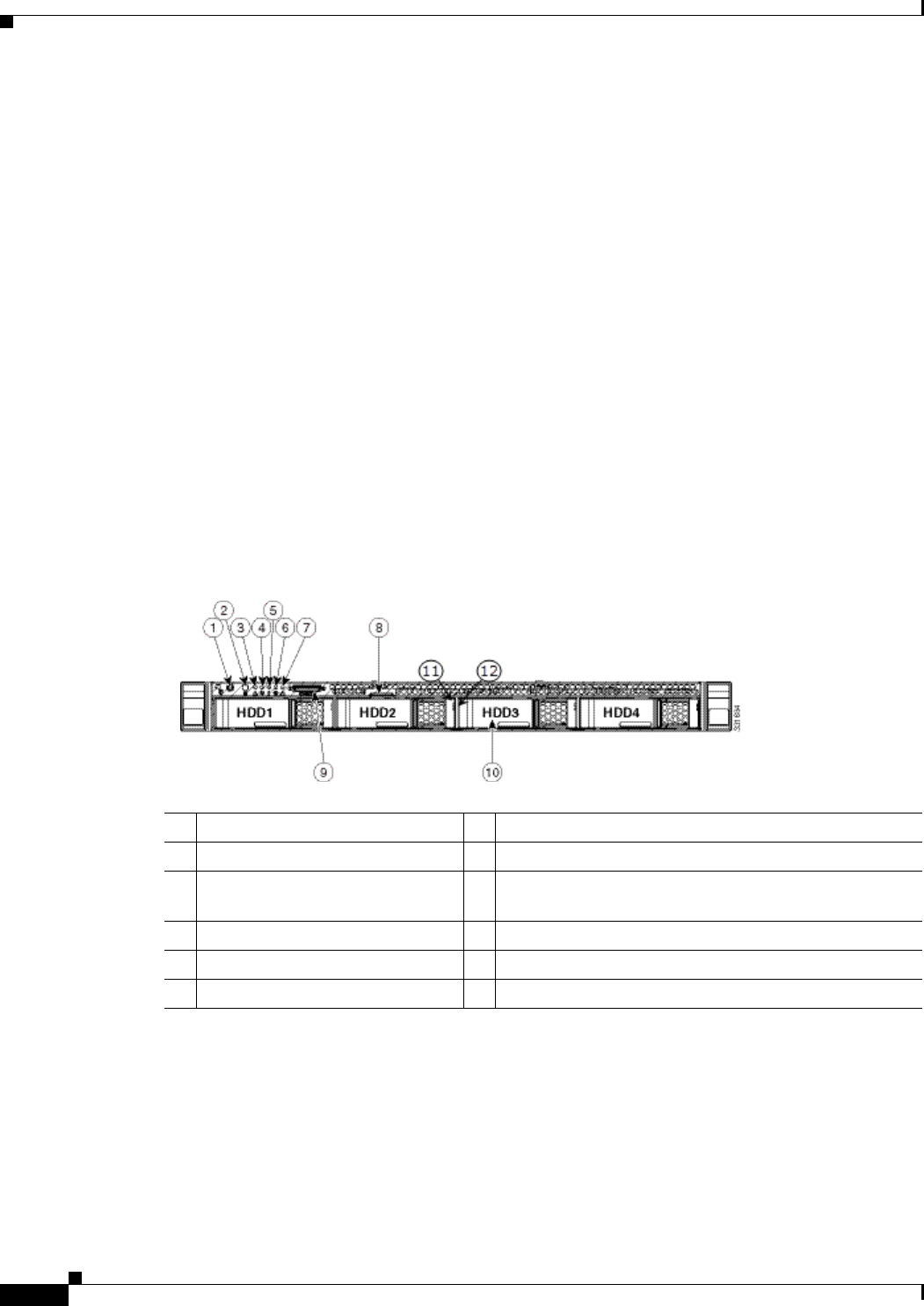

Figure 1-5 shows the front panel LEDs for the Cisco Connected Safety and Security UCS C220.
Figure 1-5 Cisco Connected Safety and Security UCS C220 Server Front Panel Features
1 Power button/Power status LED 7 Network link activity LED
2 Identification button/LED 8 Pull-out asset tag
3 System status LED 9 KVM connector (used with KVM cable that provides
t
wo USB, one VGA, and one serial connector)
4 Fan status LED 10 Drives, hot-swappable (up to four 3.5-inch drives)
5 Temperature status LED 11 Hard drive fault LED
6 Power supply status LED 12 Hard drive activity LED
