System Overview
Note The backplane expander is not supported by the Cisco Connected Safety and Security UCS C240.
Cisco Connected Safety and Security UCS C240 Rear Panel

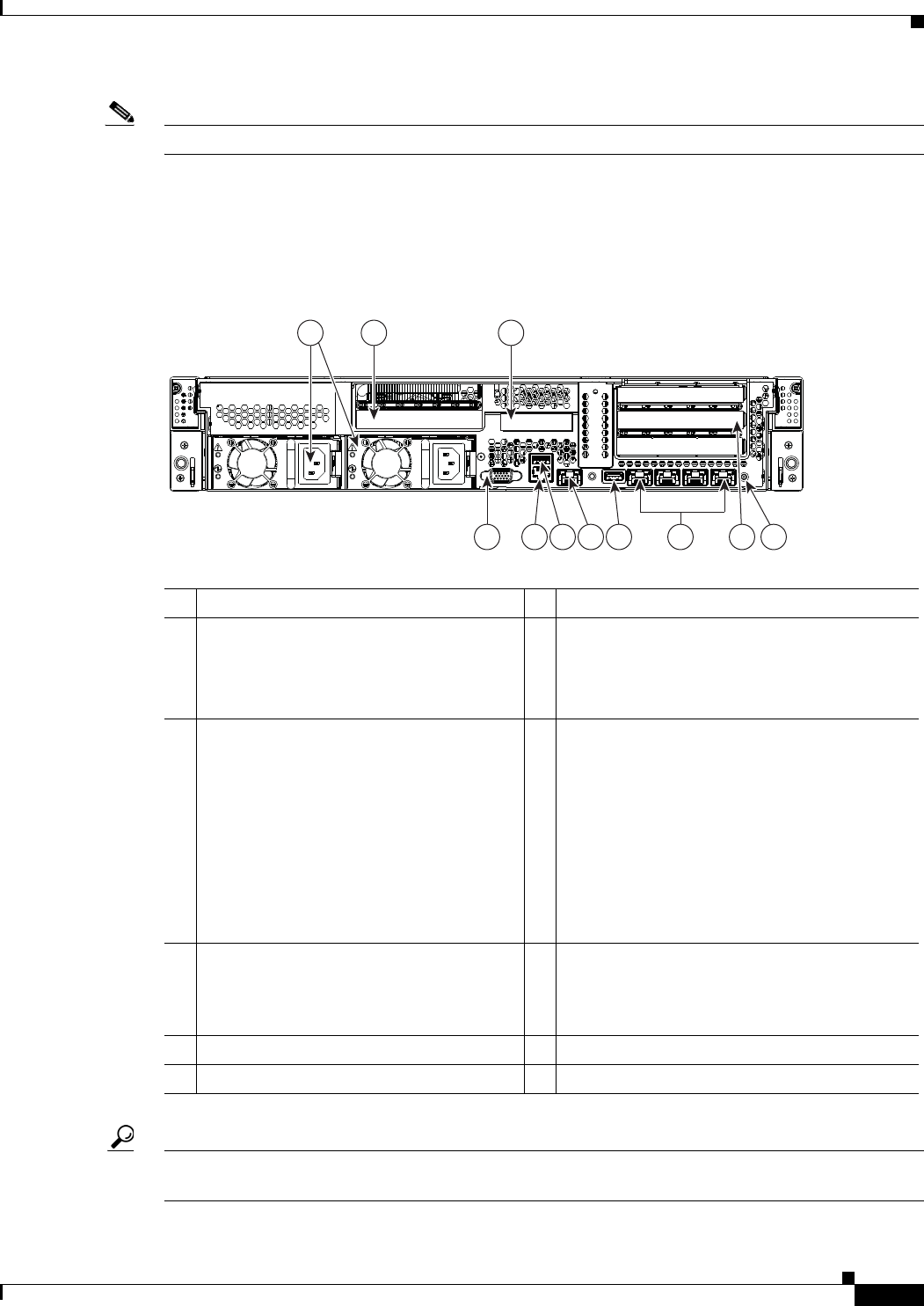

Figure 1-4 shows the rear panel features of the server.
Figure 1-4 Cisco Connected Safety and Security UCS C240 Server Rear Panel Features
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
4 98 107 1165
2 3
331826
1
1 Power supplies (two) 7 1-Gb Ethernet dedicated management port
2 PCIe slot on riser 2: 
PCIe 5—full-height, 3/4-length, x16 lane)
Note The SD card slots on the PCIe riser
are NOT supported.
8 USB 2.0 port
3 PCIe slot on riser 2:
PCIe 4—half-height, 3/4-length, x8 lane)
Note The SD card slots on the PCIe riser
are NOT supported.
9 Quad 1-Gb Ethernet ports
(LAN1 and LAN2)
Note Only LAN1 and LAN2 ports are
supported (referred to as “Eth 0” and
“Eth1” in the Cisco Connected Safety
and Security applications, such as Cisco
Video Surveillance).
Note The LAN3 and LAN4 ports are not
supported.
4 VGA video connector 10 PCIe slots on riser 1:
PCIe 1—full-height, half-length, x8 lane
PCIe 2—full-height, half-length, x16 lane
PCIe 3—full-height, half-length, x8 lane
5 Serial port (RJ-45 connector) 11 Rear Identification button/LED
6 USB port –
Tip See the “Cisco Connected Safety and Security UCS C240 LEDs and Buttons” section on page 1-15 for
