Chapter 1 Overview
System Overview
• Cisco Connected Safety and Security UCS C220 Rear Panel, page 1-4
• Summary of Cisco Connected Safety and Security UCS C220 Server Features, page 1-4
Cisco Connected Safety and Security UCS C220 Front Panel
Figure 1-1 shows the front panel features of the LFF drives version of the server.

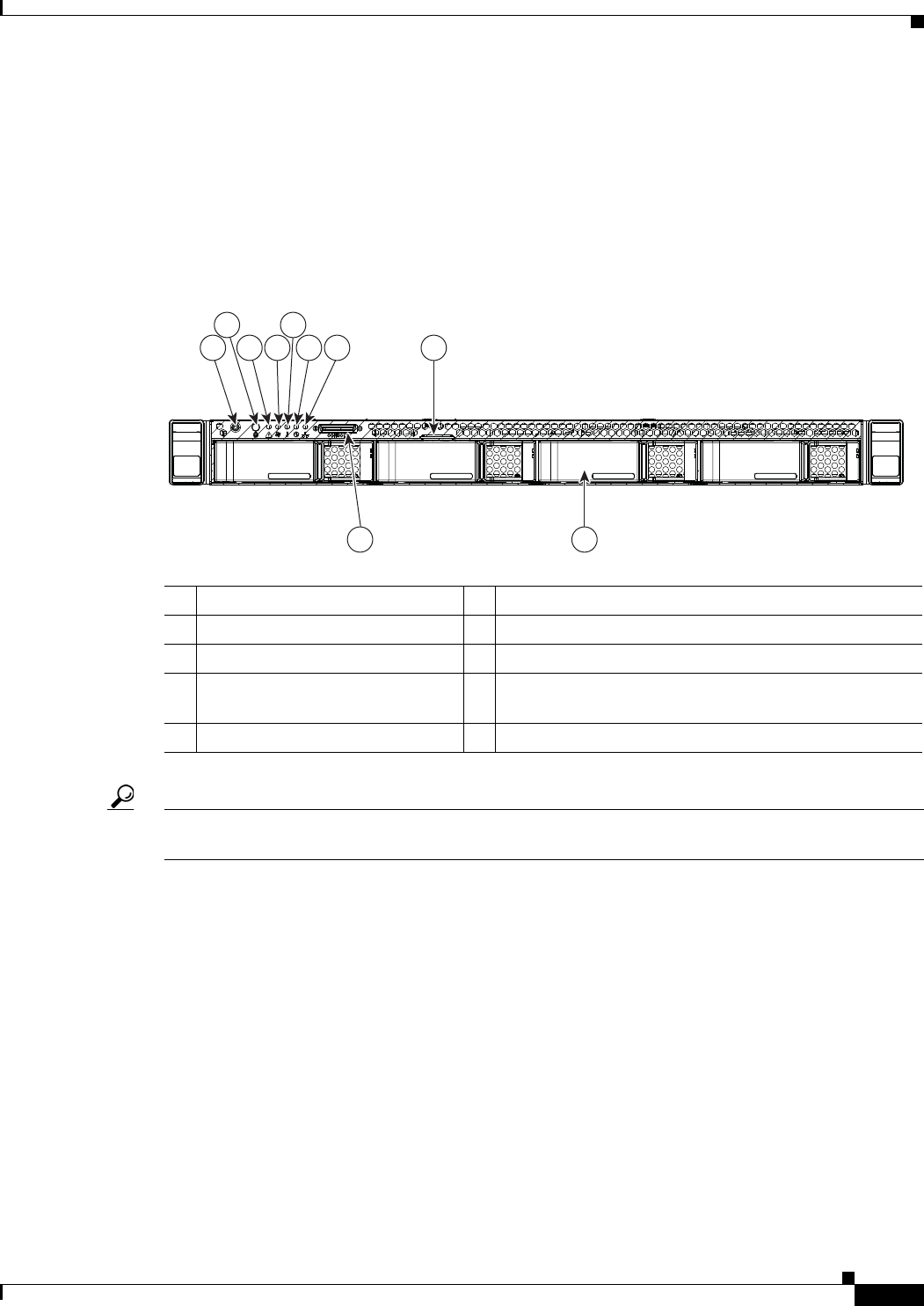

Figure 1-1 Cisco Connected Safety and Security UCS C220 Server Front Panel Features
HDD1 HDD2 HDD3 HDD4
109
84 6 7
5
31
2
331684
1 Power button/Power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 Pull-out asset tag
4 Fan status LED 9 KVM connector (used with KVM cable that provides
t
wo USB, one VGA, and one serial connector)
5 Temperature status LED 10 Drives, hot-swappable (up to four 3.5-inch drives)
Tip See the “Cisco Connected Safety and Security UCS C220 LEDs and Buttons” section on page 1-10 for
more information.
