Operation Manual

2

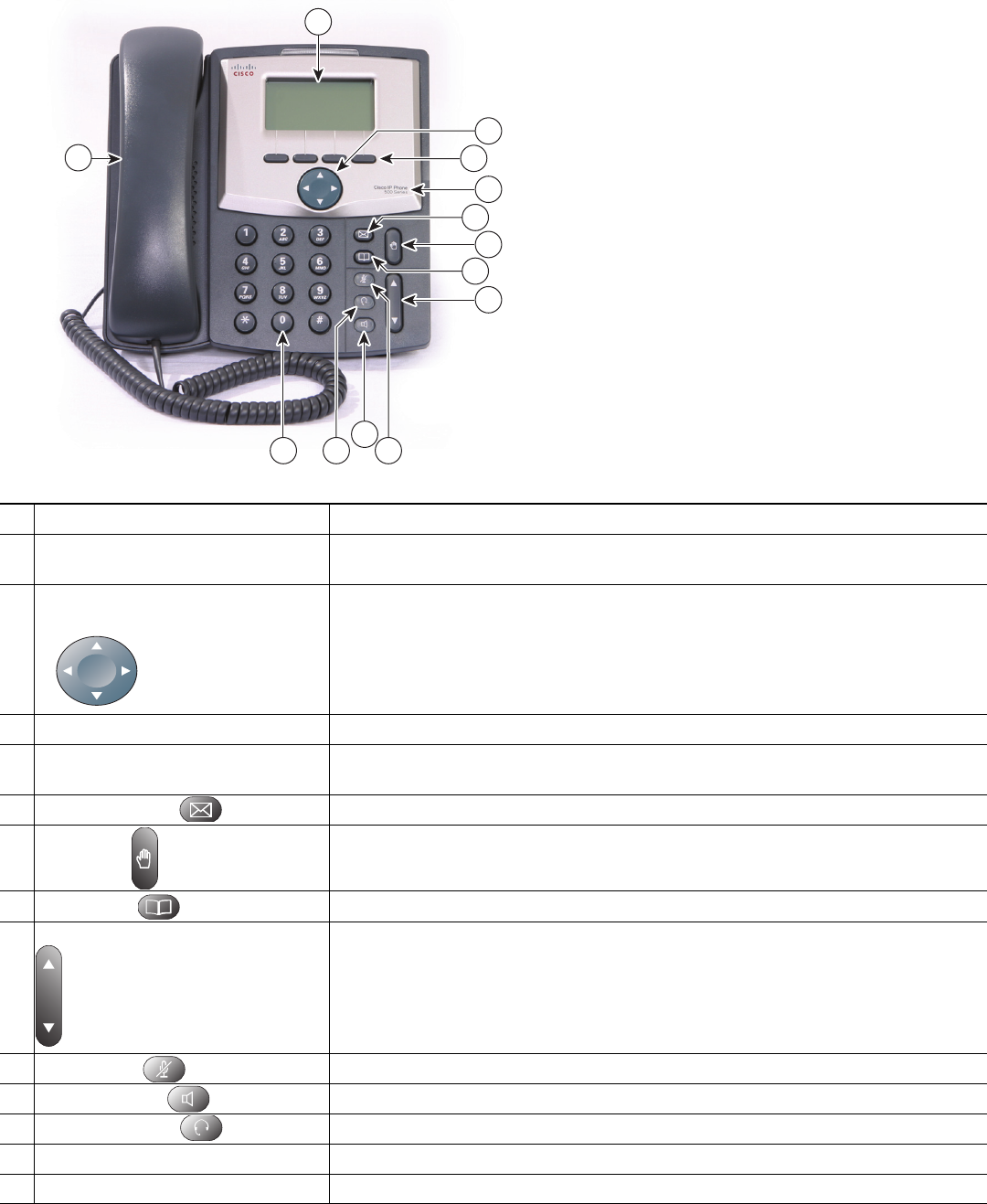

Name Description
1
LCD screen Displays information such as line/call status, phone number, date, time, and soft key
tabs.
2
4-way navigation pad and select
(center) button
Allows you to scroll through soft button features, and displays phone numbers from
your Placed Calls, when phone is on-hook. Use select button to select an item that
is highlighted on the screen.
3
Soft keys buttons Engages the functions displayed on the corresponding LCD tabs.
4
Cisco Unified Communications
Manager Express phone model types
Shows the Cisco Unified IP Phone Model Number
5
Messages button Provides access to voice message service.
6
Hold button Allows an active call to be put on hold.
7
Setup button Provides access to phone options and directory services.
8
Volume button Increases or decreases handset, headset, ringer, or speakerphone volume.
9
Mute button Toggles mute on and off.
10
Speaker button Toggles speaker on and off.
11
Headset button Toggles headset on and off.
12
Keypad Functions like a traditional telephone keypad.
13
Handset Functions like a traditional handset.
13
203241
3
4
6
8
1
10
12
7
5
2
911
